EM-6
ENGINE MECHANICAL (2JZ-GTE) - VALVE CLEARANCE
Upward
Cam Lobe
Notch
P02094

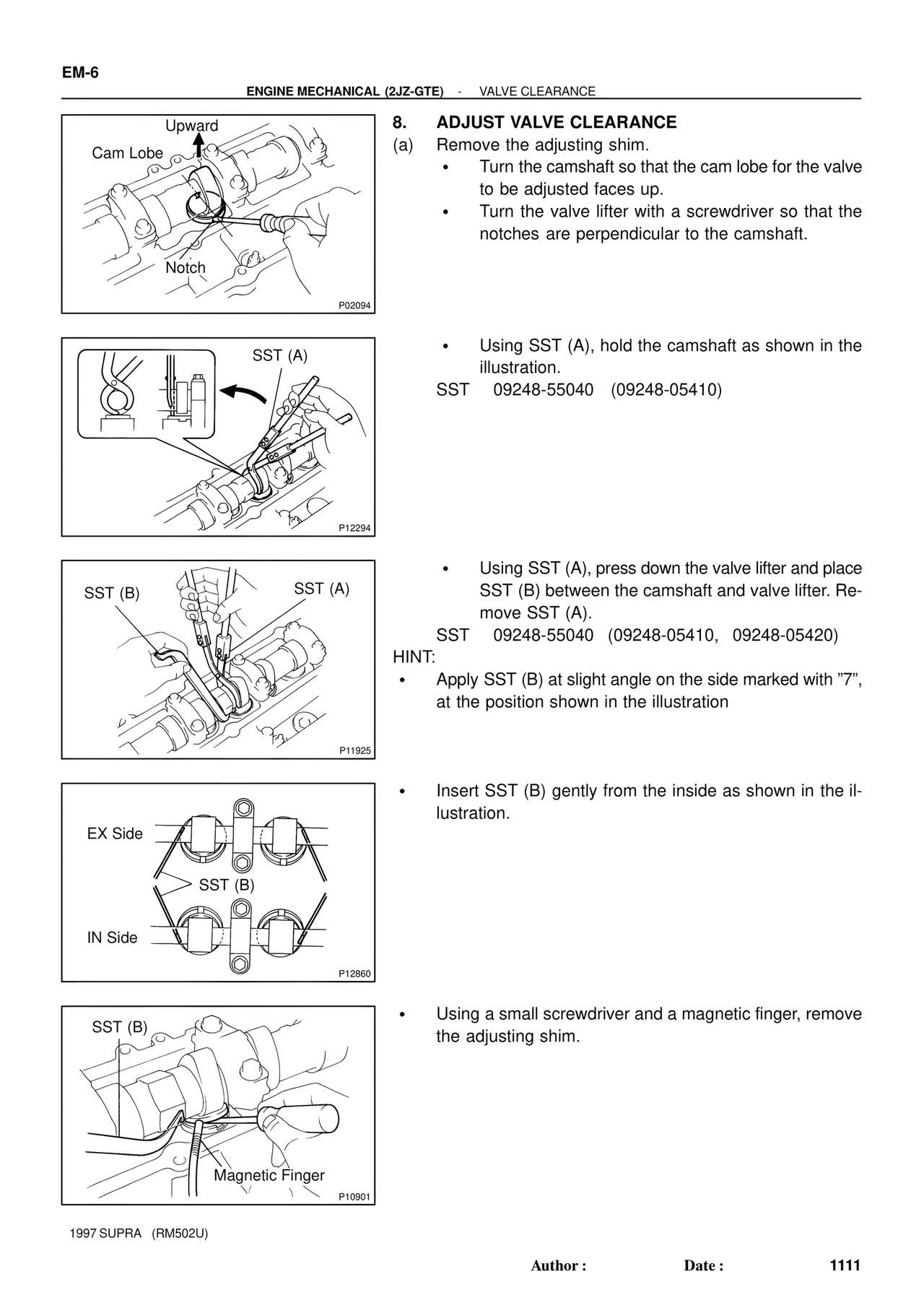

8. ADJUST VALVE CLEARANCE
(a) Remove the adjusting shim.
• Turn the camshaft so that the cam lobe for the valve to be adjusted faces up.
• Turn the valve lifter with a screwdriver so that the notches are perpendicular to the camshaft.
SST (A)
P12294
• Using SST (A), hold the camshaft as shown in the illustration.
SST 09248-55040 (09248-05410)
SST (B) SST (A)
P11925
• Using SST (A), press down the valve lifter and place SST (B) between the camshaft and valve lifter. Remove SST (A).
SST 09248-55040 (09248-05410, 09248-05420)
HINT:
• Apply SST (B) at slight angle on the side marked with "7", at the position shown in the illustration
EX Side
SST (B)
IN Side
P12860
• Insert SST (B) gently from the inside as shown in the illustration.
SST (B)
Magnetic Finger
P10901
• Using a small screwdriver and a magnetic finger, remove the adjusting shim.
1997 SUPRA (RM502U)
Author : Date : 1111
