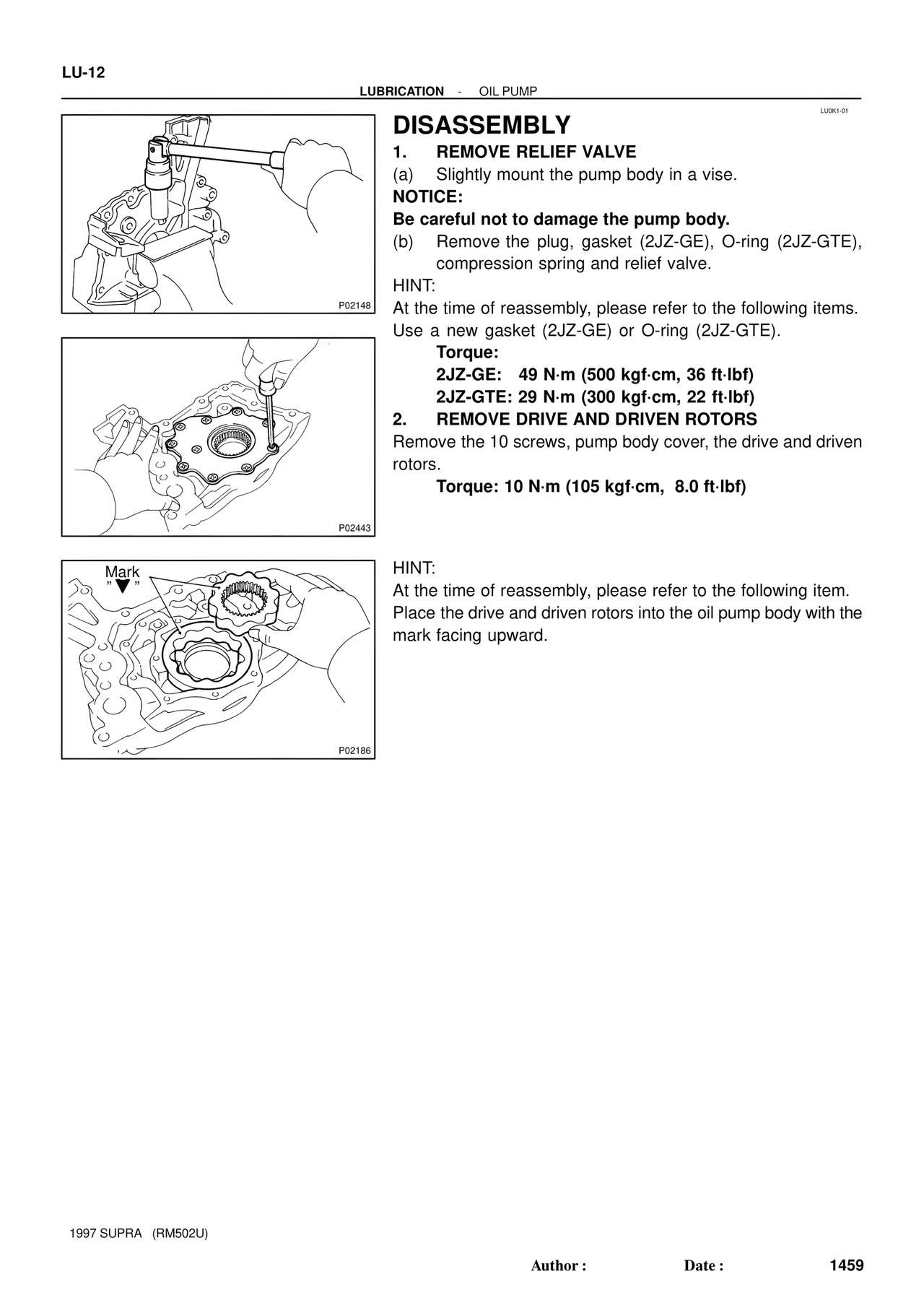

LU-12 LUBRICATION - OIL PUMP LU0K1-01 DISASSEMBLY 1. REMOVE RELIEF VALVE (a) Slightly mount the pump body in a vise. NOTICE: Be careful not to damage the pump body. (b) Remove the plug, gasket (2JZ-GE), O-ring (2JZ-GTE), compression spring and relief valve. HINT: At the time of reassembly, please refer to the following items. Use a new gasket (2JZ-GE) or O-ring (2JZ-GTE). Torque: 2JZ-GE: 49 N·m (500 kgf·cm, 36 ft·lbf) 2JZ-GTE: 29 N·m (300 kgf·cm, 22 ft·lbf) 2. REMOVE DRIVE AND DRIVEN ROTORS Remove the 10 screws, pump body cover, the drive and driven rotors. Torque: 10 N·m (105 kgf·cm, 8.0 ft·lbf) P02148 P02443 Mark "" HINT: At the time of reassembly, please refer to the following item. Place the drive and driven rotors into the oil pump body with the mark facing upward. P02186 1997 SUPRA (RM502U) Author : Date : 1459
