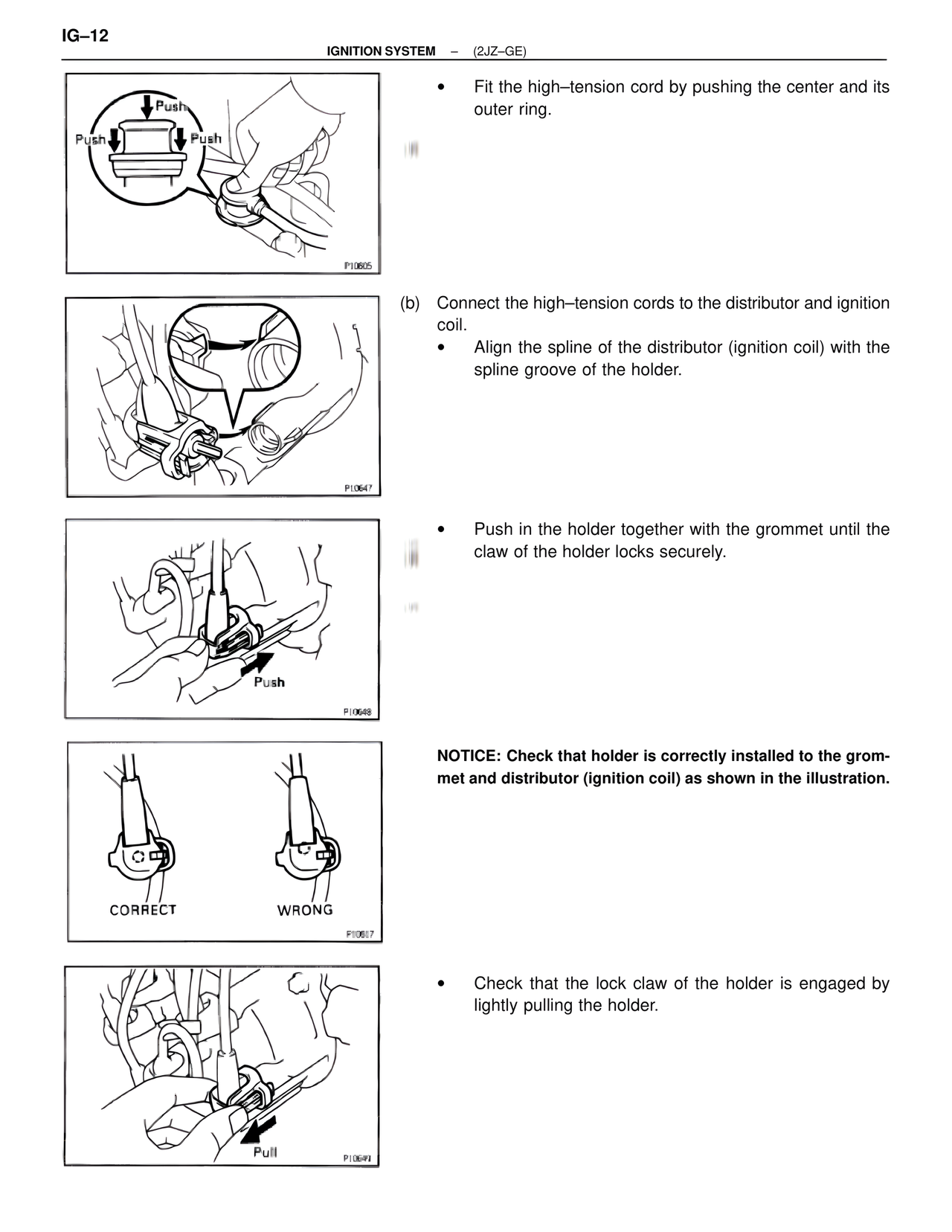

IG–12
IGNITION SYSTEM – (2JZ–GE)
Push
Push
Push
• Fit the high–tension cord by pushing the center and its outer ring.
P10605
(b) Connect the high–tension cords to the distributor and ignition coil.
• Align the spline of the distributor (ignition coil) with the spline groove of the holder.
P10647
Push
• Push in the holder together with the grommet until the claw of the holder locks securely.
P10648
NOTICE: Check that holder is correctly installed to the grommet and distributor (ignition coil) as shown in the illustration.
CORRECT WRONG
P10607
Pull
• Check that the lock claw of the holder is engaged by lightly pulling the holder.
P10649
