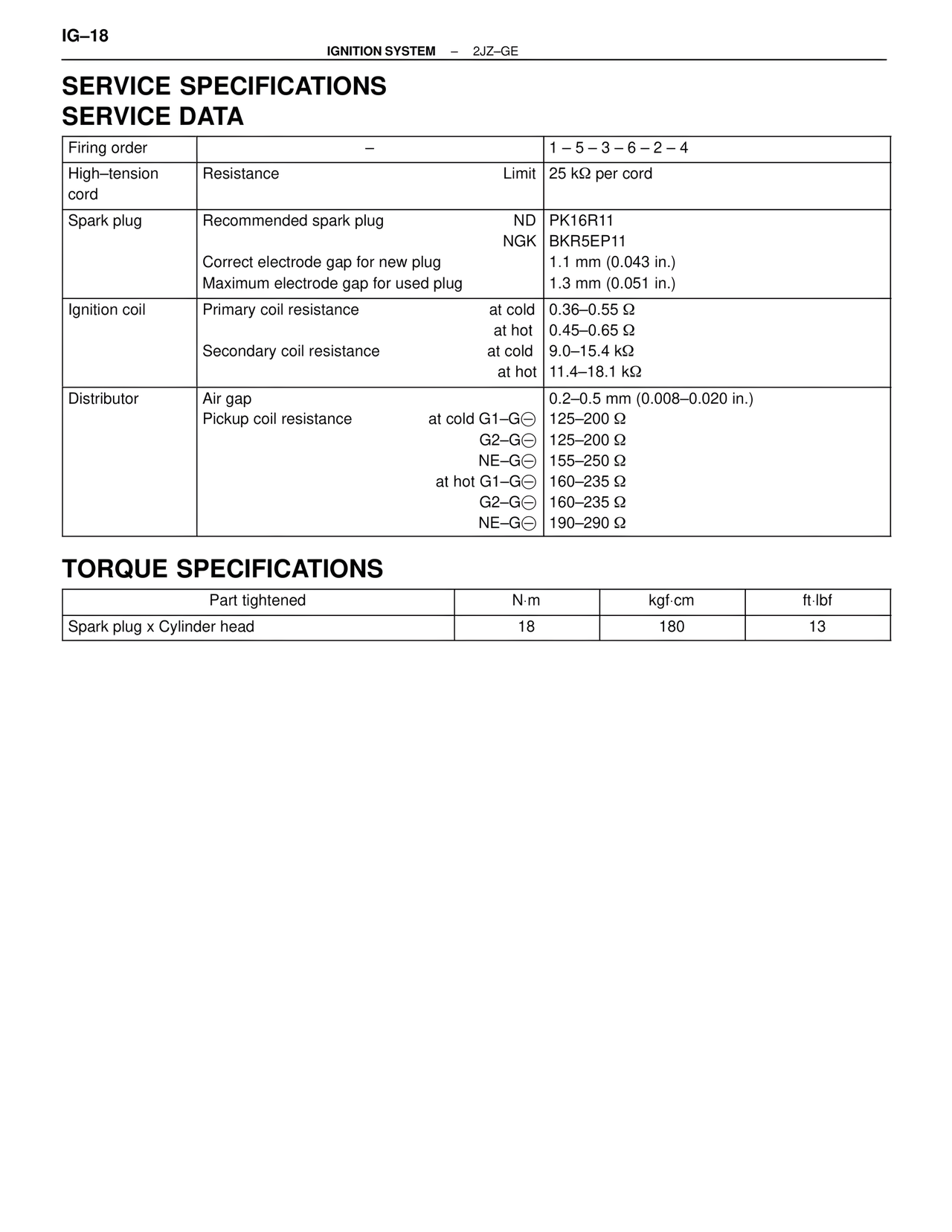

IG–18
IGNITION SYSTEM – 2JZ–GE
SERVICE SPECIFICATIONS
SERVICE DATA
Firing order | – | 1 – 5 – 3 – 6 – 2 – 4
High–tension cord | Resistance | Limit | 25 kΩ per cord
Spark plug | Recommended spark plug | ND | PK16R11
| | NGK | BKR5EP11
| Correct electrode gap for new plug | | 1.1 mm (0.043 in.)
| Maximum electrode gap for used plug | | 1.3 mm (0.051 in.)
Ignition coil | Primary coil resistance | at cold | 0.36–0.55 Ω
| | at hot | 0.45–0.65 Ω
| Secondary coil resistance | at cold | 9.0–15.4 kΩ
| | at hot | 11.4–18.1 kΩ
Distributor | Air gap | | 0.2–0.5 mm (0.008–0.020 in.)
| Pickup coil resistance | at cold G1–G⊖ | 125–200 Ω
| | G2–G⊖ | 125–200 Ω
| | NE–G⊖ | 155–250 Ω
| | at hot G1–G⊖ | 160–235 Ω
| | G2–G⊖ | 160–235 Ω
| | NE–G⊖ | 190–290 Ω
TORQUE SPECIFICATIONS
Part tightened | N·m | kgf·cm | ft·lbf
Spark plug x Cylinder head | 18 | 180 | 13
