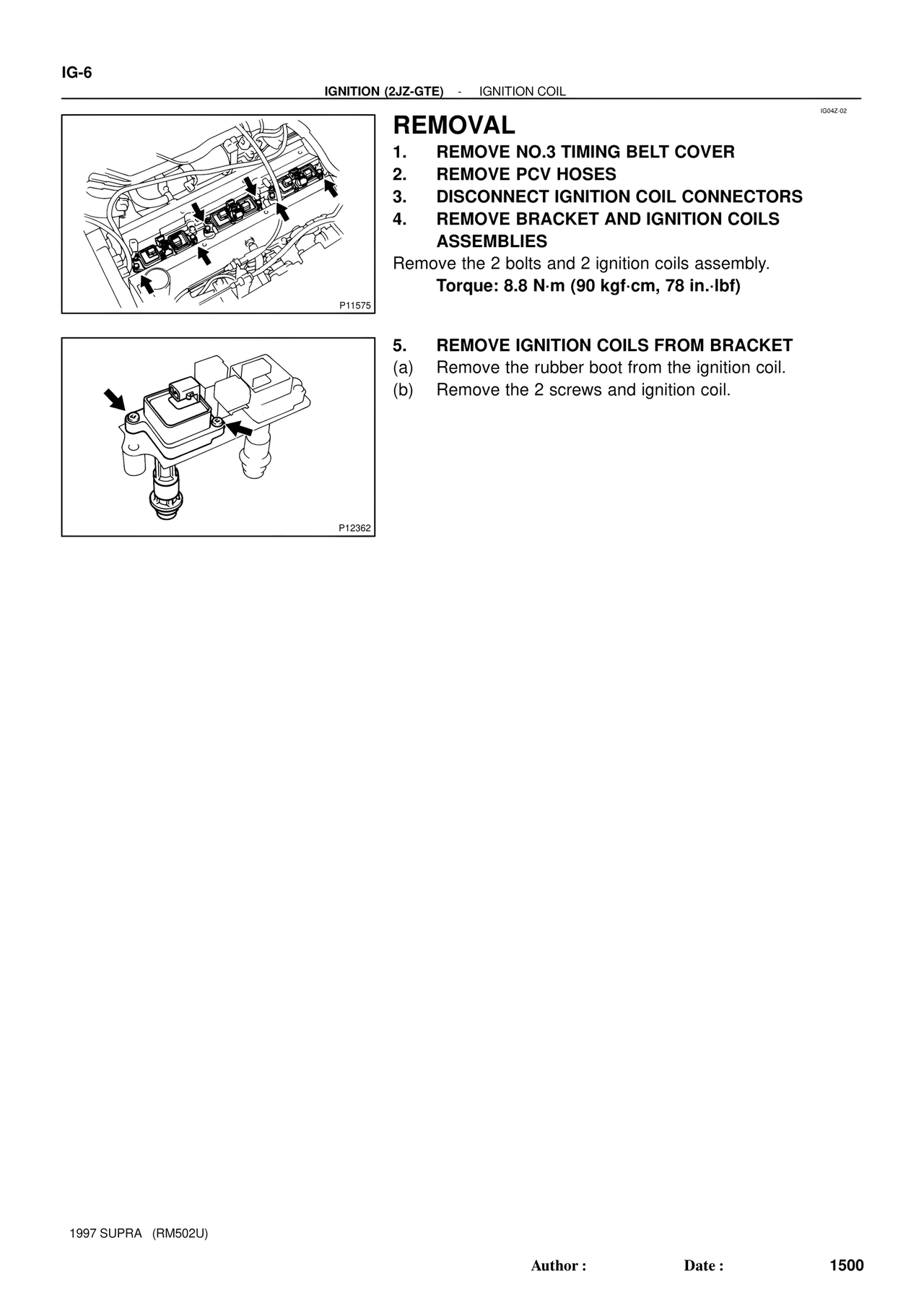

IG-6 IGNITION (2JZ-GTE) - IGNITION COIL IG04Z-02 REMOVAL 1. REMOVE NO.3 TIMING BELT COVER 2. REMOVE PCV HOSES 3. DISCONNECT IGNITION COIL CONNECTORS 4. REMOVE BRACKET AND IGNITION COILS ASSEMBLIES Remove the 2 bolts and 2 ignition coils assembly. Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf) P11575 5. REMOVE IGNITION COILS FROM BRACKET (a) Remove the rubber boot from the ignition coil. (b) Remove the 2 screws and ignition coil. P12362 1997 SUPRA (RM502U) Author : Date : 1500
