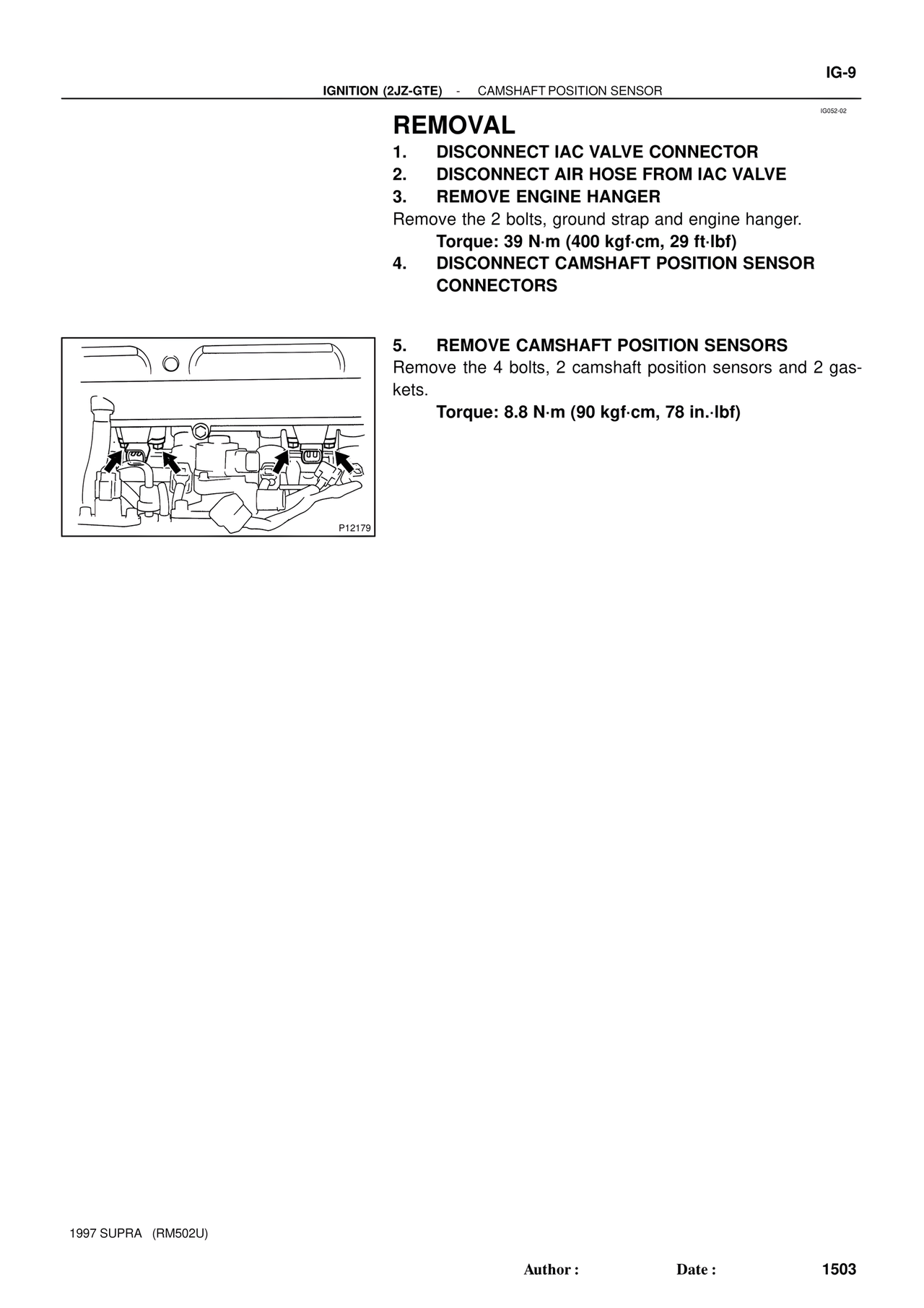

IG-9 IGNITION (2JZ-GTE) - CAMSHAFT POSITION SENSOR IG052-02 REMOVAL 1. DISCONNECT IAC VALVE CONNECTOR 2. DISCONNECT AIR HOSE FROM IAC VALVE 3. REMOVE ENGINE HANGER Remove the 2 bolts, ground strap and engine hanger. Torque: 39 N·m (400 kgf·cm, 29 ft·lbf) 4. DISCONNECT CAMSHAFT POSITION SENSOR CONNECTORS 5. REMOVE CAMSHAFT POSITION SENSORS Remove the 4 bolts, 2 camshaft position sensors and 2 gaskets. Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf) P12179 1997 SUPRA (RM502U) Author : Date : 1503
