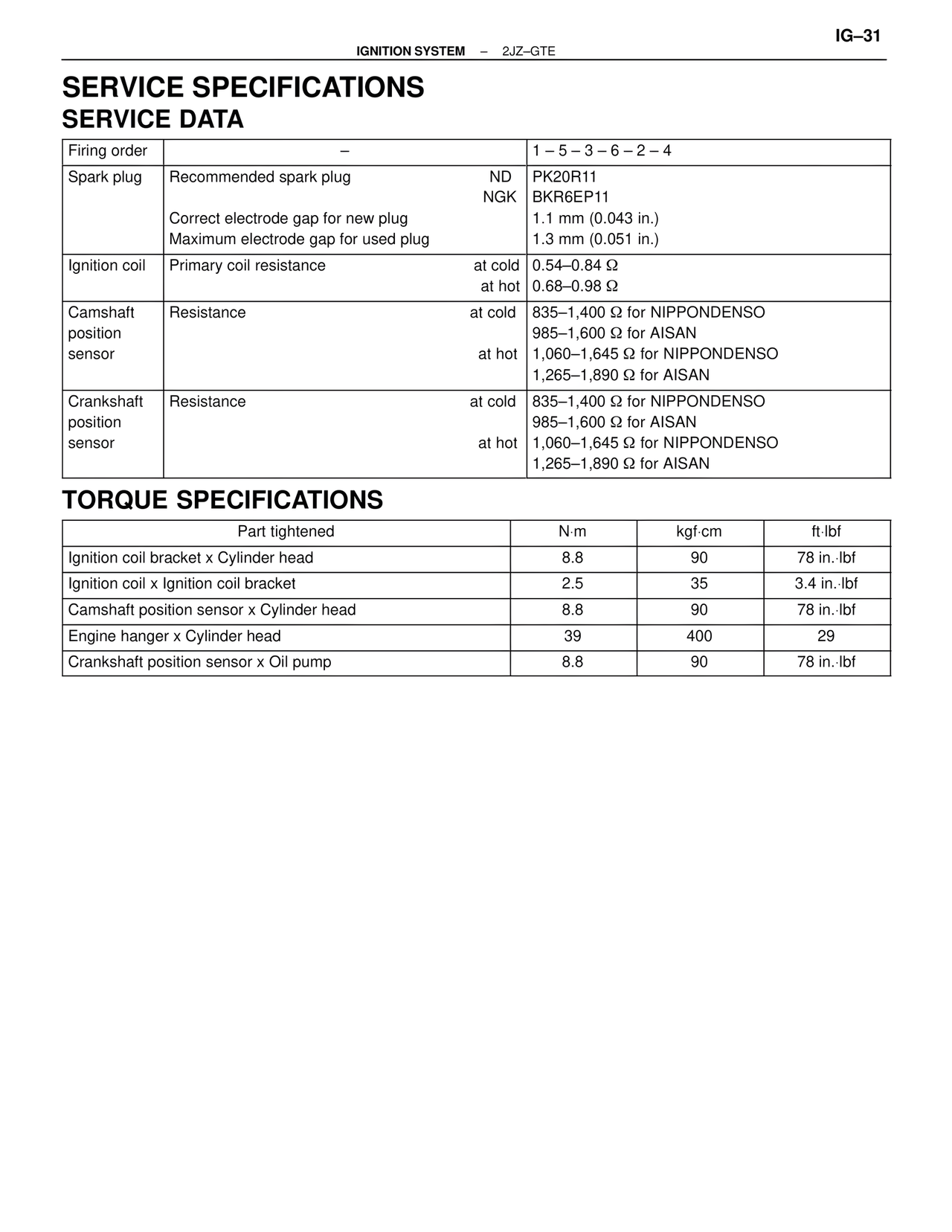

SERVICE SPECIFICATIONS SERVICE DATA Firing order | – | 1 – 5 – 3 – 6 – 2 – 4 Spark plug | Recommended spark plug | ND | PK20R11 NGK | BKR6EP11 Correct electrode gap for new plug | 1.1 mm (0.043 in.) Maximum electrode gap for used plug | 1.3 mm (0.051 in.) Ignition coil | Primary coil resistance | at cold | 0.54–0.84 Ω at hot | 0.68–0.98 Ω Camshaft position sensor | Resistance | at cold | 835–1,400 Ω for NIPPONDENSO 985–1,600 Ω for AISAN at hot | 1,060–1,645 Ω for NIPPONDENSO 1,265–1,890 Ω for AISAN Crankshaft position sensor | Resistance | at cold | 835–1,400 Ω for NIPPONDENSO 985–1,600 Ω for AISAN at hot | 1,060–1,645 Ω for NIPPONDENSO 1,265–1,890 Ω for AISAN TORQUE SPECIFICATIONS Part tightened | N·m | kgf·cm | ft·lbf Ignition coil bracket x Cylinder head | 8.8 | 90 | 78 in.·lbf Ignition coil x Ignition coil bracket | 2.5 | 35 | 3.4 in.·lbf Camshaft position sensor x Cylinder head | 8.8 | 90 | 78 in.·lbf Engine hanger x Cylinder head | 39 | 400 | 29 Crankshaft position sensor x Oil pump | 8.8 | 90 | 78 in.·lbf
