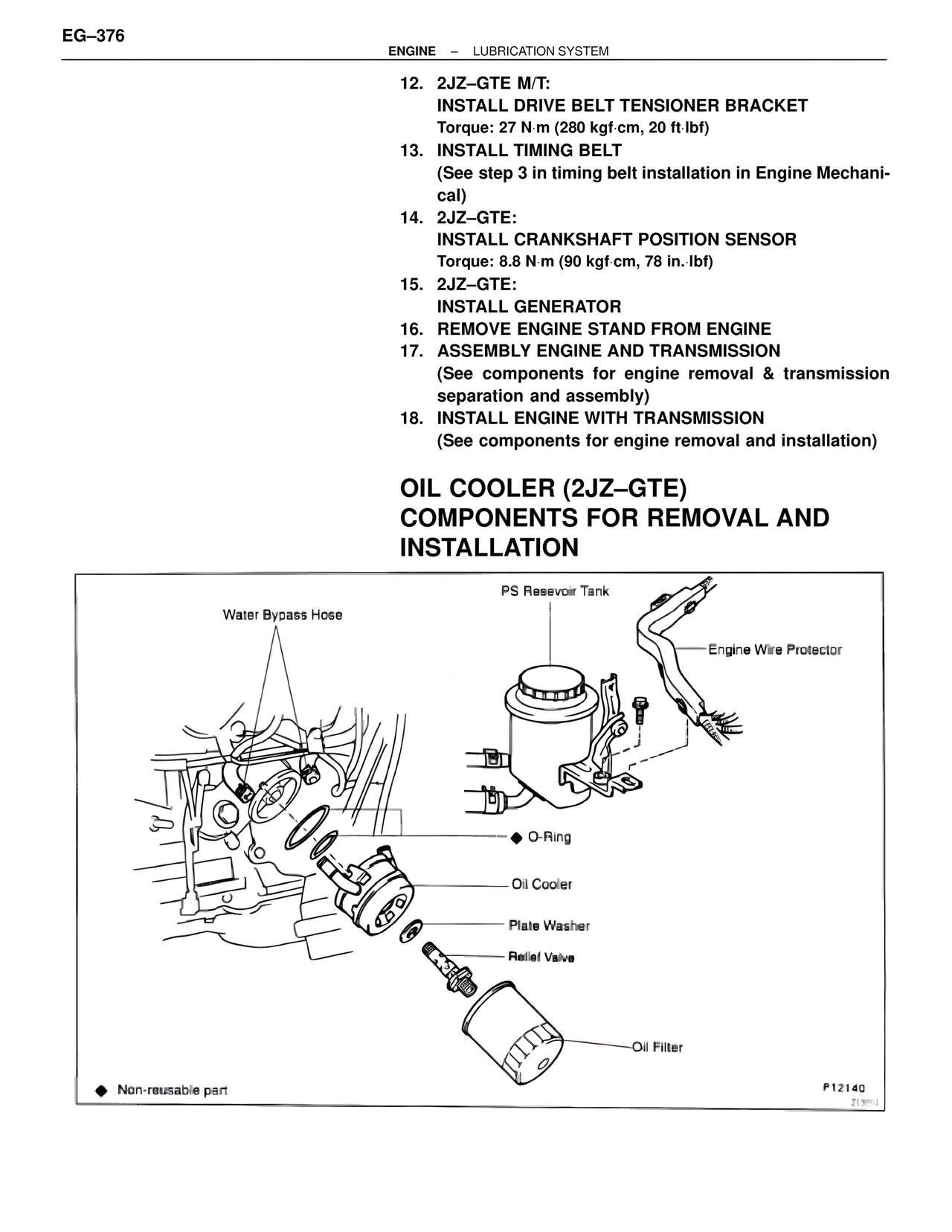

EG–376 ENGINE – LUBRICATION SYSTEM 12. 2JZ–GTE M/T: INSTALL DRIVE BELT TENSIONER BRACKET Torque: 27 N·m (280 kgf·cm, 20 ft·lbf) 13. INSTALL TIMING BELT (See step 3 in timing belt installation in Engine Mechanical) 14. 2JZ–GTE: INSTALL CRANKSHAFT POSITION SENSOR Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf) 15. 2JZ–GTE: INSTALL GENERATOR 16. REMOVE ENGINE STAND FROM ENGINE 17. ASSEMBLY ENGINE AND TRANSMISSION (See components for engine removal & transmission separation and assembly) 18. INSTALL ENGINE WITH TRANSMISSION (See components for engine removal and installation) OIL COOLER (2JZ–GTE) COMPONENTS FOR REMOVAL AND INSTALLATION PS Resevoir Tank Water Bypass Hose Engine Wire Protector O-Ring Oil Cooler Plate Washer Relief Valve Oil Filter ◆ Non-reusable part P12140 Z13954
