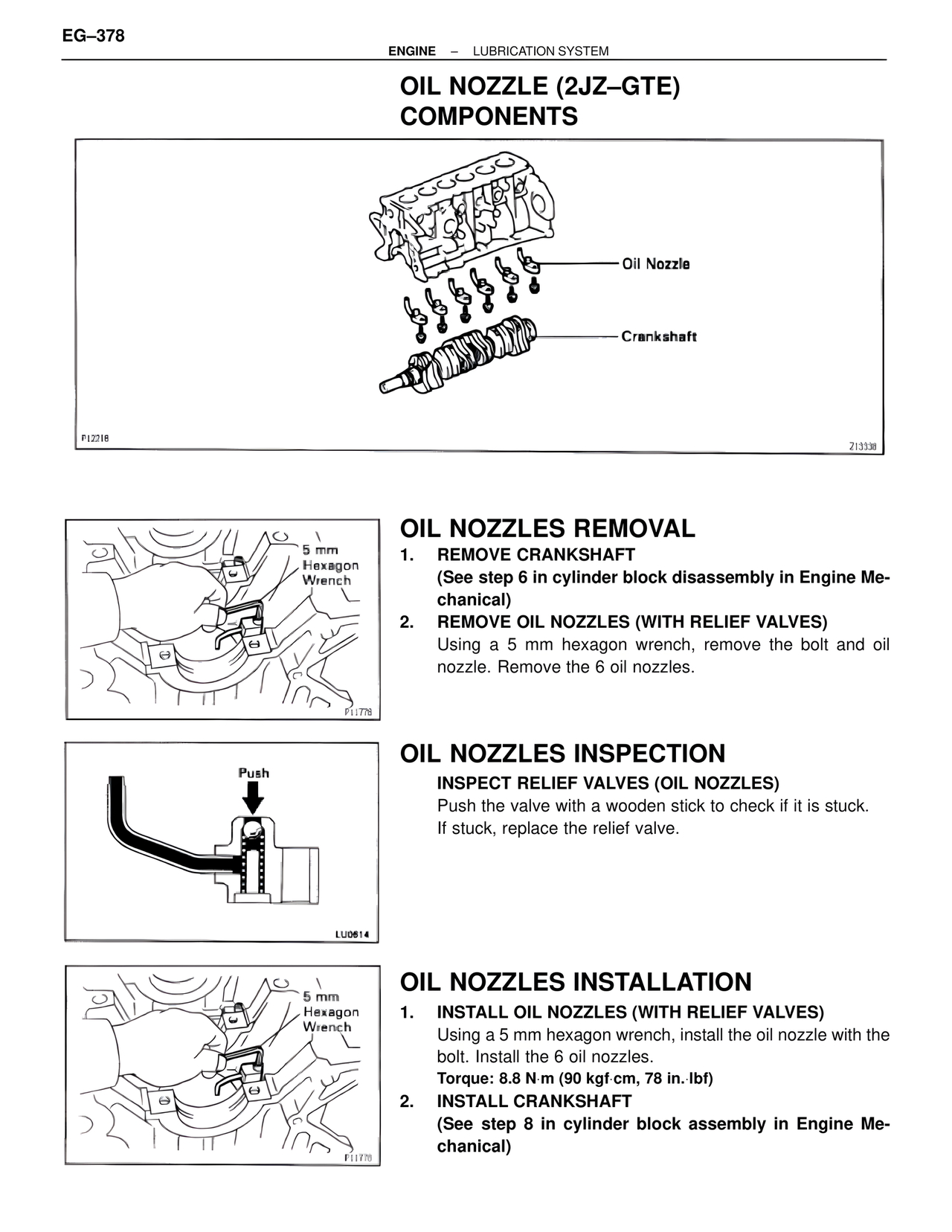

EG–378 ENGINE – LUBRICATION SYSTEM OIL NOZZLE (2JZ–GTE) COMPONENTS Oil Nozzle Crankshaft P12218 213339 5 mm Hexagon Wrench F11778 OIL NOZZLES REMOVAL 1. REMOVE CRANKSHAFT (See step 6 in cylinder block disassembly in Engine Mechanical) 2. REMOVE OIL NOZZLES (WITH RELIEF VALVES) Using a 5 mm hexagon wrench, remove the bolt and oil nozzle. Remove the 6 oil nozzles. Push LU0614 OIL NOZZLES INSPECTION INSPECT RELIEF VALVES (OIL NOZZLES) Push the valve with a wooden stick to check if it is stuck. If stuck, replace the relief valve. 5 mm Hexagon Wrench F11778 OIL NOZZLES INSTALLATION 1. INSTALL OIL NOZZLES (WITH RELIEF VALVES) Using a 5 mm hexagon wrench, install the oil nozzle with the bolt. Install the 6 oil nozzles. Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf) 2. INSTALL CRANKSHAFT (See step 8 in cylinder block assembly in Engine Mechanical)
