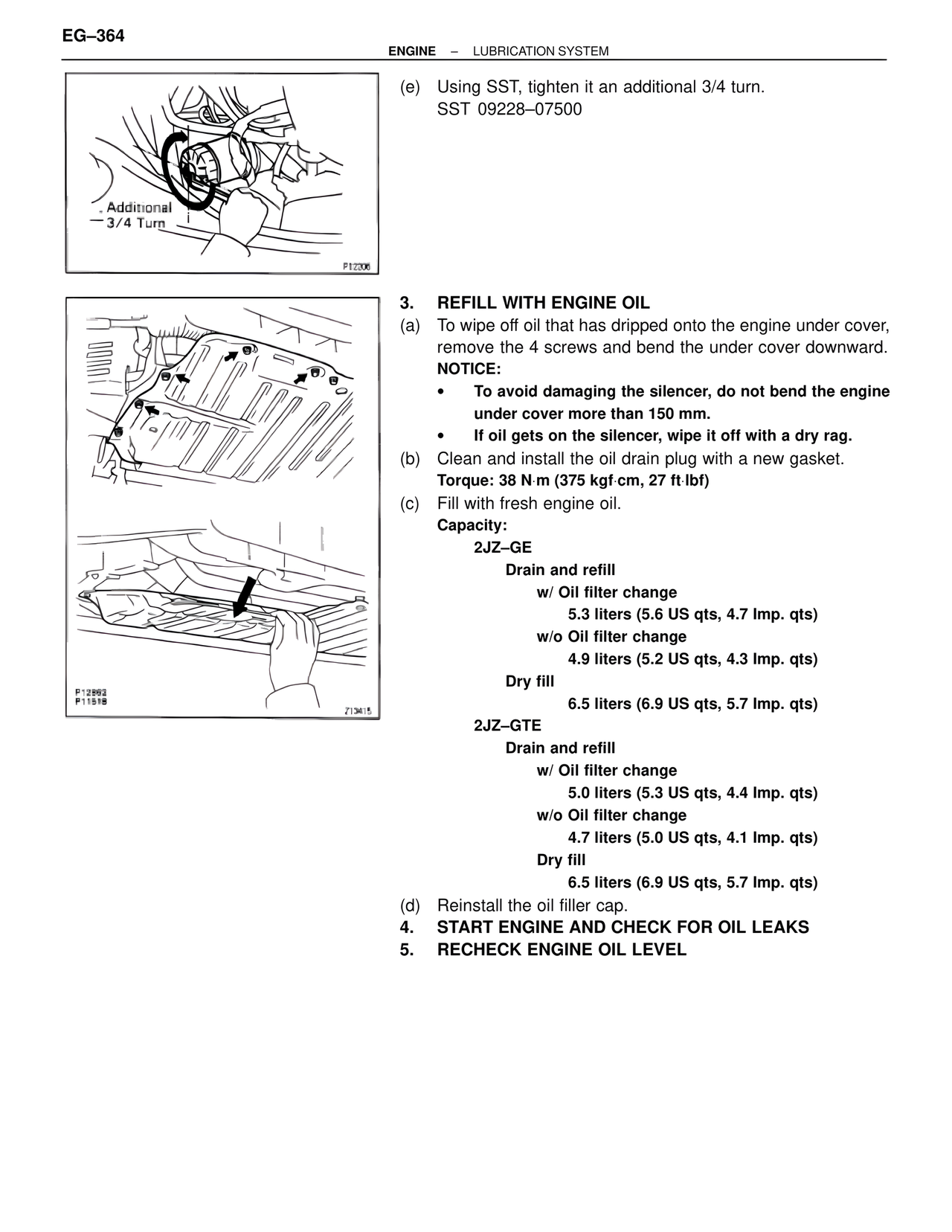

EG–364
ENGINE – LUBRICATION SYSTEM
Additional
3/4 Turn
P12206
(e) Using SST, tighten it an additional 3/4 turn.
SST 09228–07500
P12862
P11518
Z13415
3. REFILL WITH ENGINE OIL
(a) To wipe off oil that has dripped onto the engine under cover,
remove the 4 screws and bend the under cover downward.
NOTICE:
• To avoid damaging the silencer, do not bend the engine
under cover more than 150 mm.
• If oil gets on the silencer, wipe it off with a dry rag.
(b) Clean and install the oil drain plug with a new gasket.
Torque: 38 N·m (375 kgf·cm, 27 ft·lbf)
(c) Fill with fresh engine oil.
Capacity:
2JZ–GE
Drain and refill
w/ Oil filter change
5.3 liters (5.6 US qts, 4.7 Imp. qts)
w/o Oil filter change
4.9 liters (5.2 US qts, 4.3 Imp. qts)
Dry fill
6.5 liters (6.9 US qts, 5.7 Imp. qts)
2JZ–GTE
Drain and refill
w/ Oil filter change
5.0 liters (5.3 US qts, 4.4 Imp. qts)
w/o Oil filter change
4.7 liters (5.0 US qts, 4.1 Imp. qts)
Dry fill
6.5 liters (6.9 US qts, 5.7 Imp. qts)
(d) Reinstall the oil filler cap.
4. START ENGINE AND CHECK FOR OIL LEAKS
5. RECHECK ENGINE OIL LEVEL
