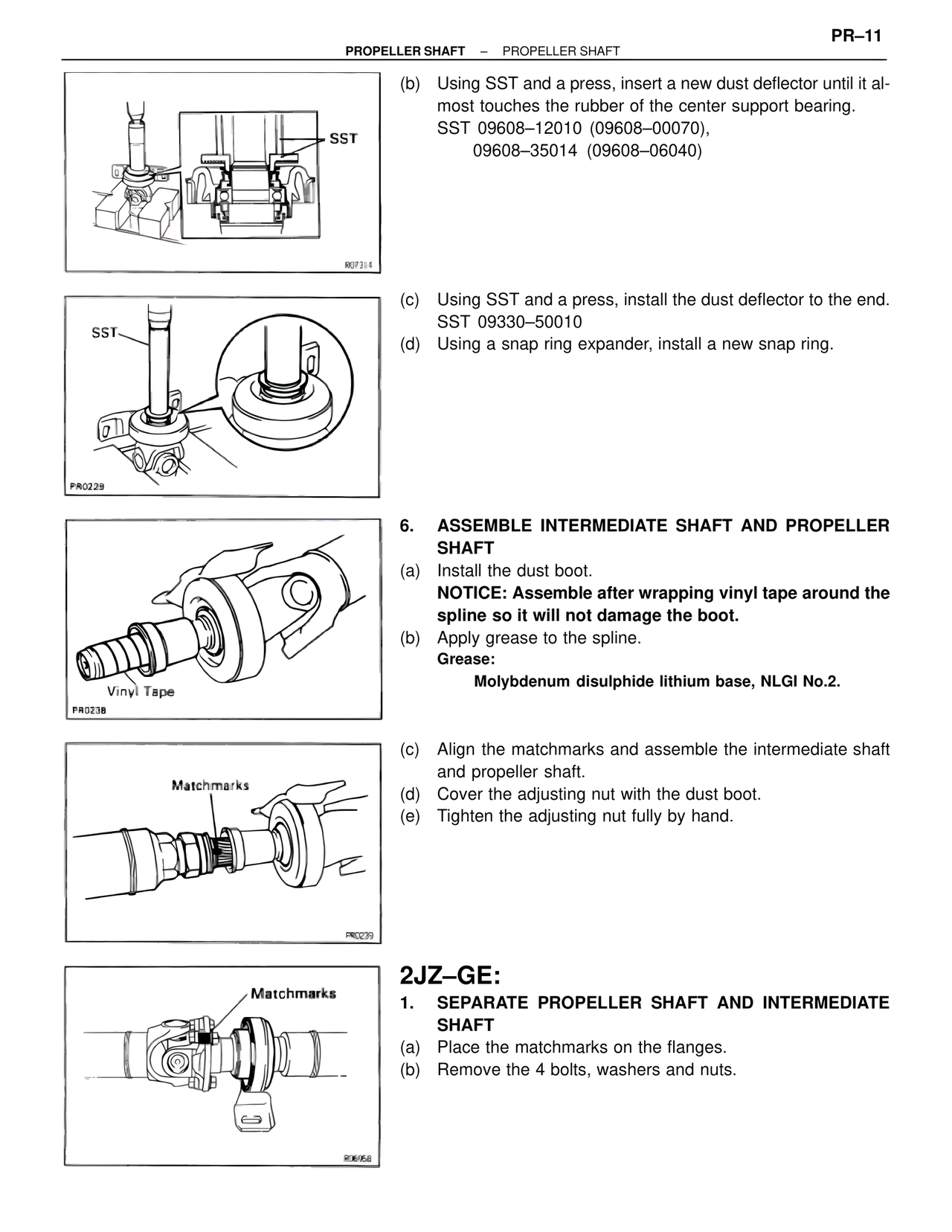

(b) Using SST and a press, insert a new dust deflector until it almost touches the rubber of the center support bearing.
SST 09608–12010 (09608–00070),
09608–35014 (09608–06040)
SST
R07314
SST
(c) Using SST and a press, install the dust deflector to the end.
SST 09330–50010
(d) Using a snap ring expander, install a new snap ring.
PR0229
6. ASSEMBLE INTERMEDIATE SHAFT AND PROPELLER SHAFT
(a) Install the dust boot.
NOTICE: Assemble after wrapping vinyl tape around the spline so it will not damage the boot.
(b) Apply grease to the spline.
Grease:
Molybdenum disulphide lithium base, NLGI No.2.
Vinyl Tape
PR0238
(c) Align the matchmarks and assemble the intermediate shaft and propeller shaft.
(d) Cover the adjusting nut with the dust boot.
(e) Tighten the adjusting nut fully by hand.
Matchmarks
PR0239
2JZ–GE:
1. SEPARATE PROPELLER SHAFT AND INTERMEDIATE SHAFT
(a) Place the matchmarks on the flanges.
(b) Remove the 4 bolts, washers and nuts.
Matchmarks
R06058
