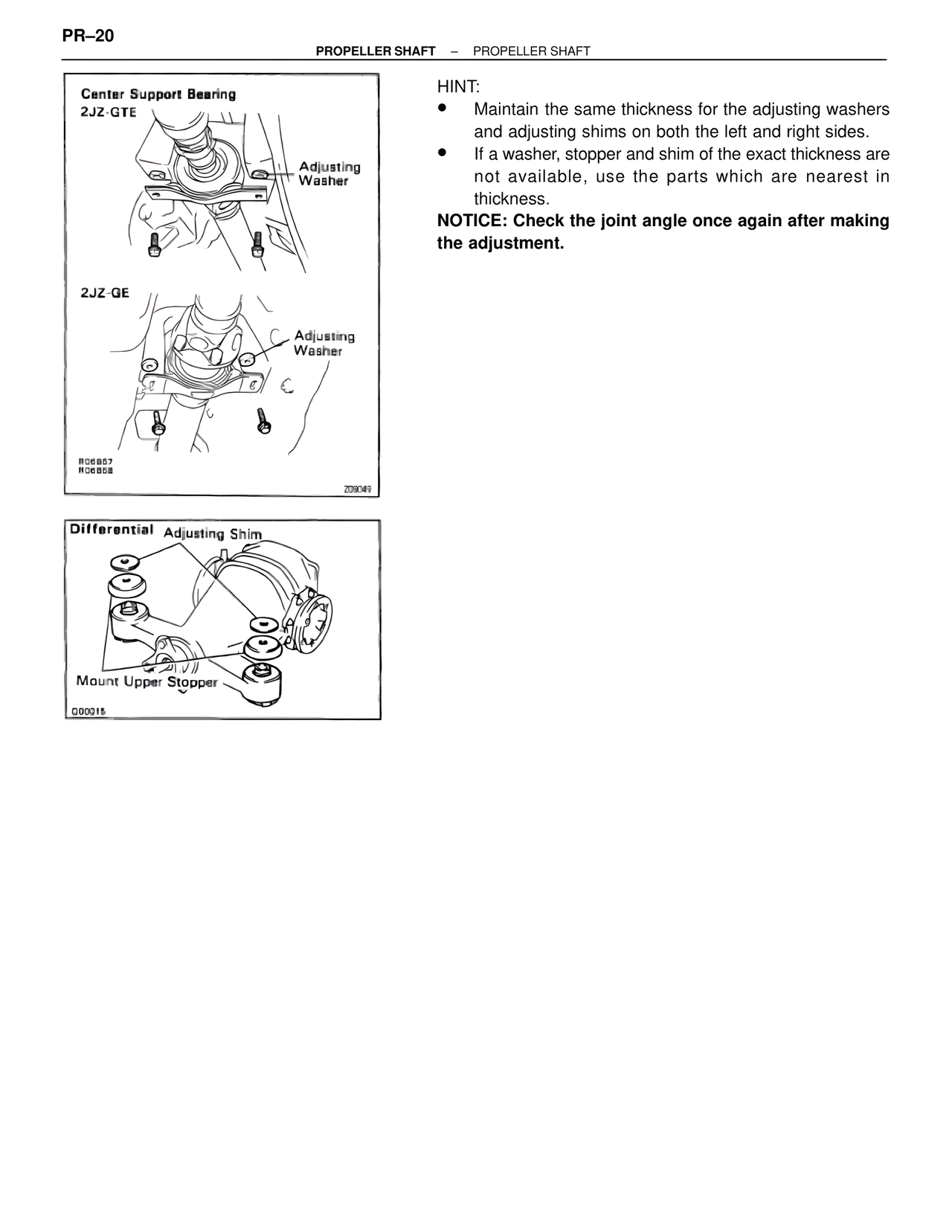

PR–20
PROPELLER SHAFT – PROPELLER SHAFT
Center Support Bearing
2JZ-GTE
Adjusting
Washer
R06857
R06858
2JZ-GE
Adjusting
Washer
Z09349
Differential Adjusting Shim
Mount Upper Stopper
G00015
HINT:
• Maintain the same thickness for the adjusting washers and adjusting shims on both the left and right sides.
• If a washer, stopper and shim of the exact thickness are not available, use the parts which are nearest in thickness.
NOTICE: Check the joint angle once again after making the adjustment.
