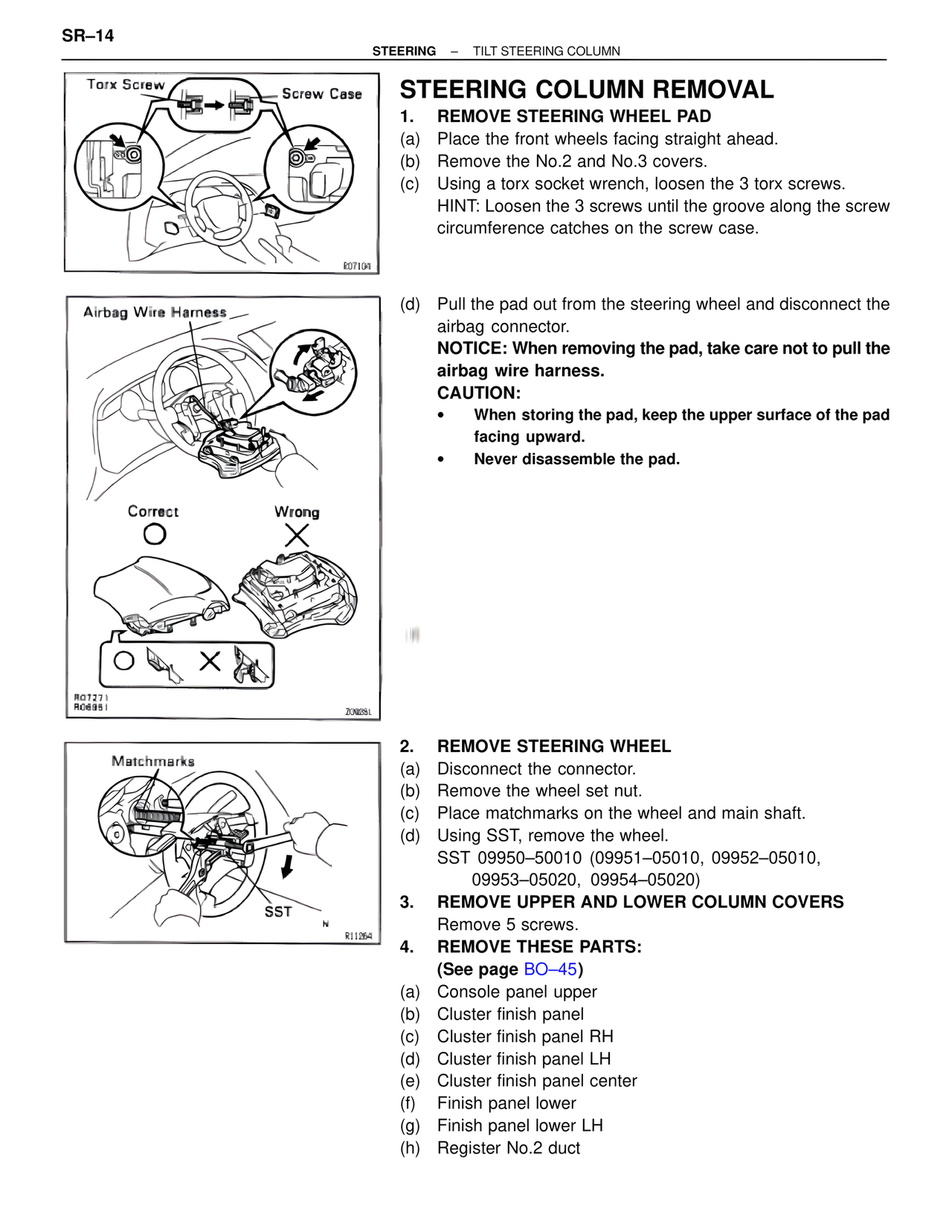

SR–14 STEERING – TILT STEERING COLUMN Torx Screw Screw Case R07104 Airbag Wire Harness Correct Wrong R07271 R06951 200291 Matchmarks SST R11264 STEERING COLUMN REMOVAL 1. REMOVE STEERING WHEEL PAD (a) Place the front wheels facing straight ahead. (b) Remove the No.2 and No.3 covers. (c) Using a torx socket wrench, loosen the 3 torx screws. HINT: Loosen the 3 screws until the groove along the screw circumference catches on the screw case. (d) Pull the pad out from the steering wheel and disconnect the airbag connector. NOTICE: When removing the pad, take care not to pull the airbag wire harness. CAUTION: • When storing the pad, keep the upper surface of the pad facing upward. • Never disassemble the pad. 2. REMOVE STEERING WHEEL (a) Disconnect the connector. (b) Remove the wheel set nut. (c) Place matchmarks on the wheel and main shaft. (d) Using SST, remove the wheel. SST 09950–50010 (09951–05010, 09952–05010, 09953–05020, 09954–05020) 3. REMOVE UPPER AND LOWER COLUMN COVERS Remove 5 screws. 4. REMOVE THESE PARTS: (See page BO–45) (a) Console panel upper (b) Cluster finish panel (c) Cluster finish panel RH (d) Cluster finish panel LH (e) Cluster finish panel center (f) Finish panel lower (g) Finish panel lower LH (h) Register No.2 duct
