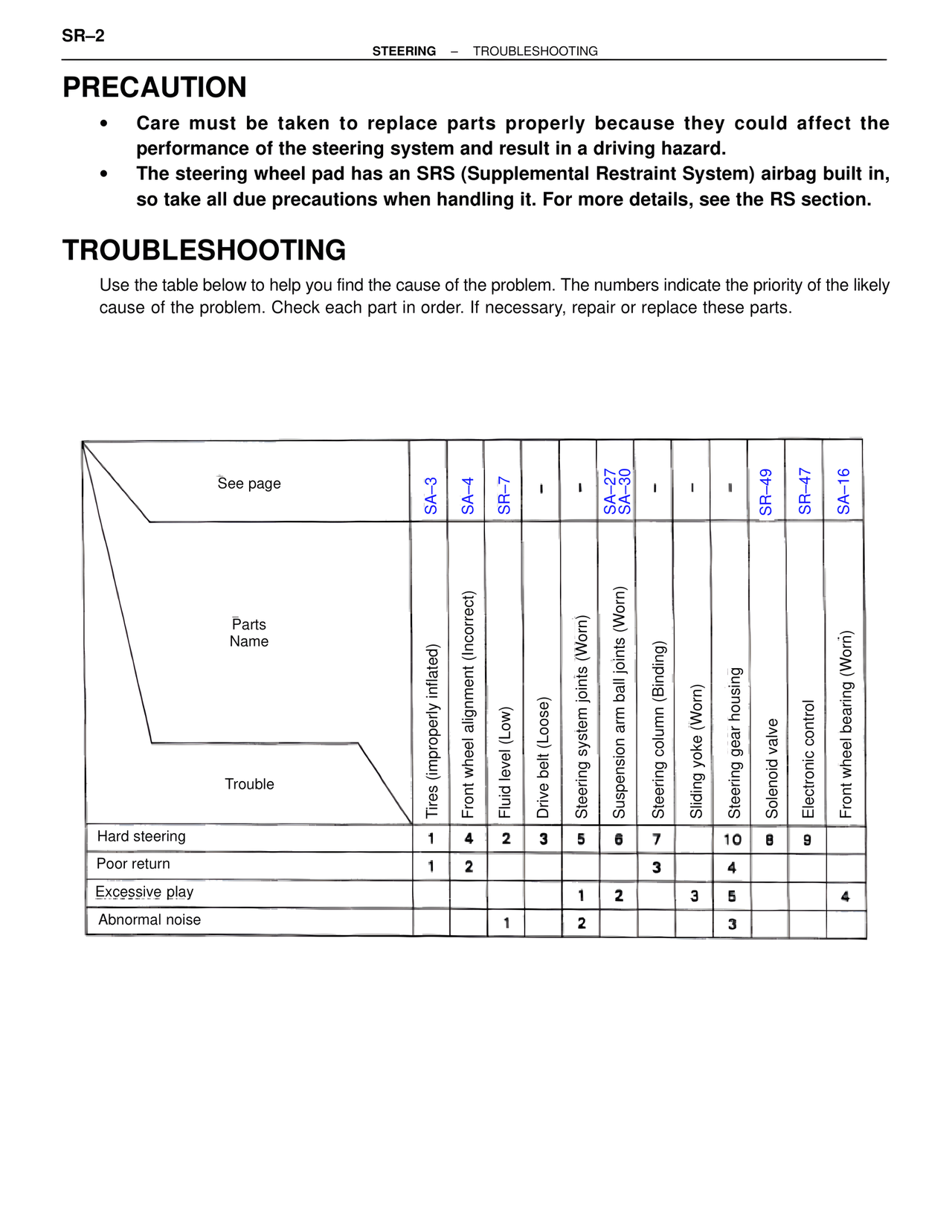

SR–2
STEERING – TROUBLESHOOTING
PRECAUTION
• Care must be taken to replace parts properly because they could affect the performance of the steering system and result in a driving hazard.
• The steering wheel pad has an SRS (Supplemental Restraint System) airbag built in, so take all due precautions when handling it. For more details, see the RS section.
TROUBLESHOOTING
Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, repair or replace these parts.
See page
SA-3
SA-4
SR-7
|
|
SA-27
SA-30
|
|
|
SR-49
SR-47
SA-16
Parts Name
Tires (improperly inflated)
Front wheel alignment (Incorrect)
Fluid level (Low)
Drive belt (Loose)
Steering system joints (Worn)
Suspension arm ball joints (Worn)
Steering column (Binding)
Sliding yoke (Worn)
Steering gear housing
Solenoid valve
Electronic control
Front wheel bearing (Worn)
Trouble
Hard steering 1 4 2 3 5 6 7 10 8 9
Poor return 1 2 3 4
Excessive play 1 2 3 5 4
Abnormal noise 1 2 3
