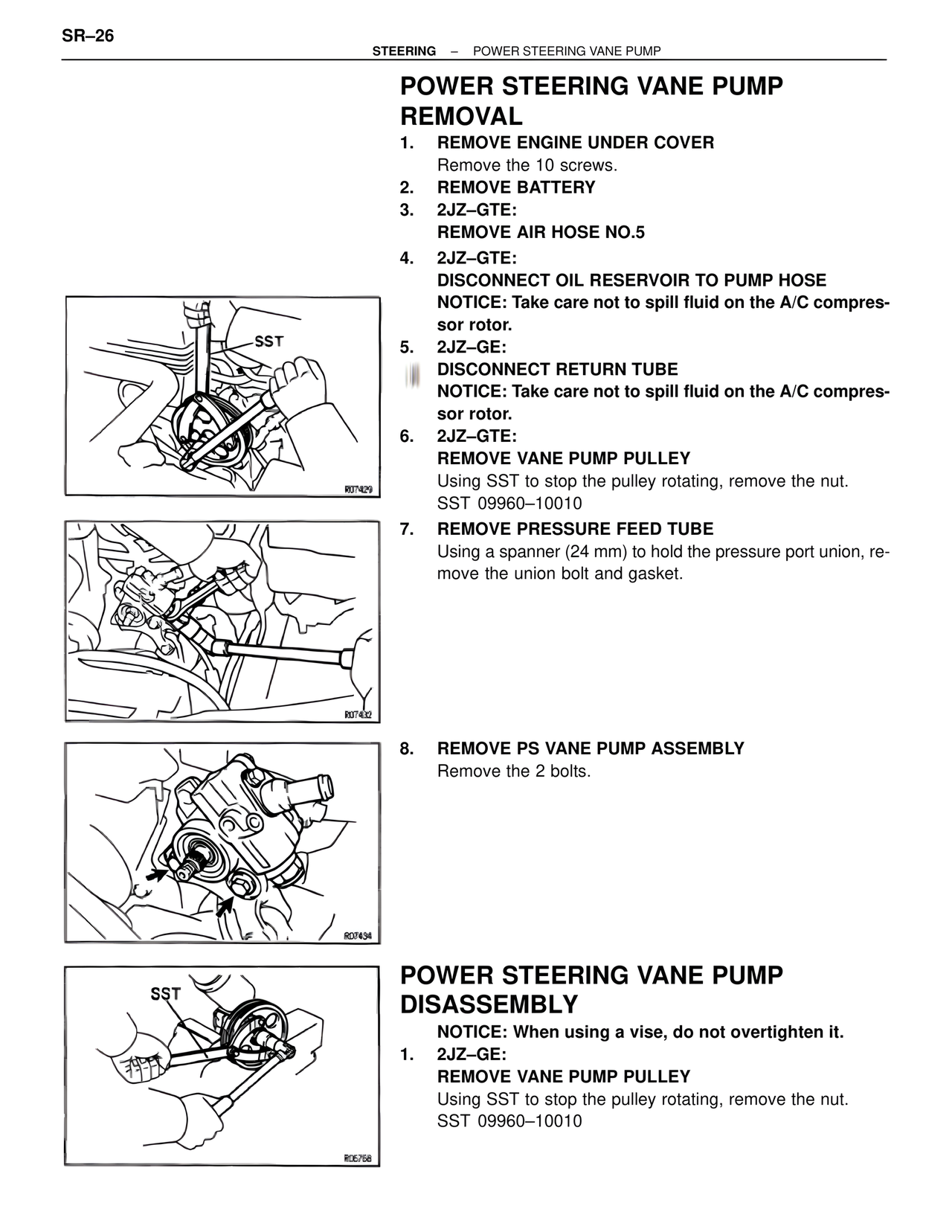

SR–26
STEERING – POWER STEERING VANE PUMP
POWER STEERING VANE PUMP REMOVAL
1. REMOVE ENGINE UNDER COVER
Remove the 10 screws.
2. REMOVE BATTERY
3. 2JZ–GTE:
REMOVE AIR HOSE NO.5
4. 2JZ–GTE:
DISCONNECT OIL RESERVOIR TO PUMP HOSE
NOTICE: Take care not to spill fluid on the A/C compressor rotor.
5. 2JZ–GE:
DISCONNECT RETURN TUBE
NOTICE: Take care not to spill fluid on the A/C compressor rotor.
6. 2JZ–GTE:
REMOVE VANE PUMP PULLEY
Using SST to stop the pulley rotating, remove the nut.
SST 09960–10010
7. REMOVE PRESSURE FEED TUBE
Using a spanner (24 mm) to hold the pressure port union, remove the union bolt and gasket.
8. REMOVE PS VANE PUMP ASSEMBLY
Remove the 2 bolts.
POWER STEERING VANE PUMP DISASSEMBLY
NOTICE: When using a vise, do not overtighten it.
1. 2JZ–GE:
REMOVE VANE PUMP PULLEY
Using SST to stop the pulley rotating, remove the nut.
SST 09960–10010
SST
R07429
R07432
R07434
SST
R06758
