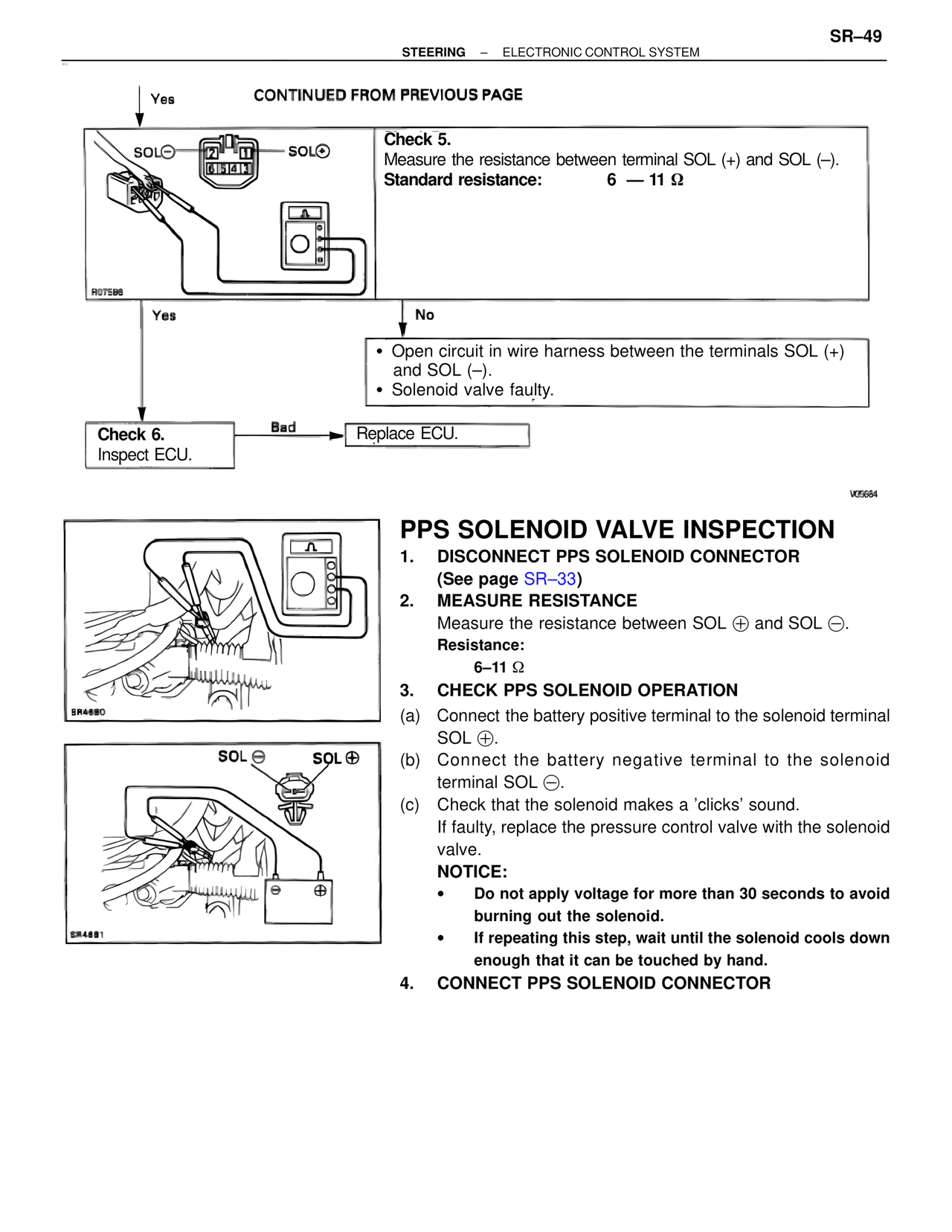

Yes
CONTINUED FROM PREVIOUS PAGE
SOL⊖ SOL⊕
Check 5.
Measure the resistance between terminal SOL (+) and SOL (–).
Standard resistance: 6 — 11 Ω
R07588
Yes No
• Open circuit in wire harness between the terminals SOL (+)
and SOL (–).
• Solenoid valve faulty.
Check 6. Bad Replace ECU.
Inspect ECU.
W05684
PPS SOLENOID VALVE INSPECTION
SR4680
SOL⊖ SOL⊕
SR4881
1. DISCONNECT PPS SOLENOID CONNECTOR
(See page SR–33)
2. MEASURE RESISTANCE
Measure the resistance between SOL ⊕ and SOL ⊖.
Resistance:
6–11 Ω
3. CHECK PPS SOLENOID OPERATION
(a) Connect the battery positive terminal to the solenoid terminal
SOL ⊕.
(b) Connect the battery negative terminal to the solenoid
terminal SOL ⊖.
(c) Check that the solenoid makes a 'clicks' sound.
If faulty, replace the pressure control valve with the solenoid
valve.
NOTICE:
• Do not apply voltage for more than 30 seconds to avoid
burning out the solenoid.
• If repeating this step, wait until the solenoid cools down
enough that it can be touched by hand.
4. CONNECT PPS SOLENOID CONNECTOR
