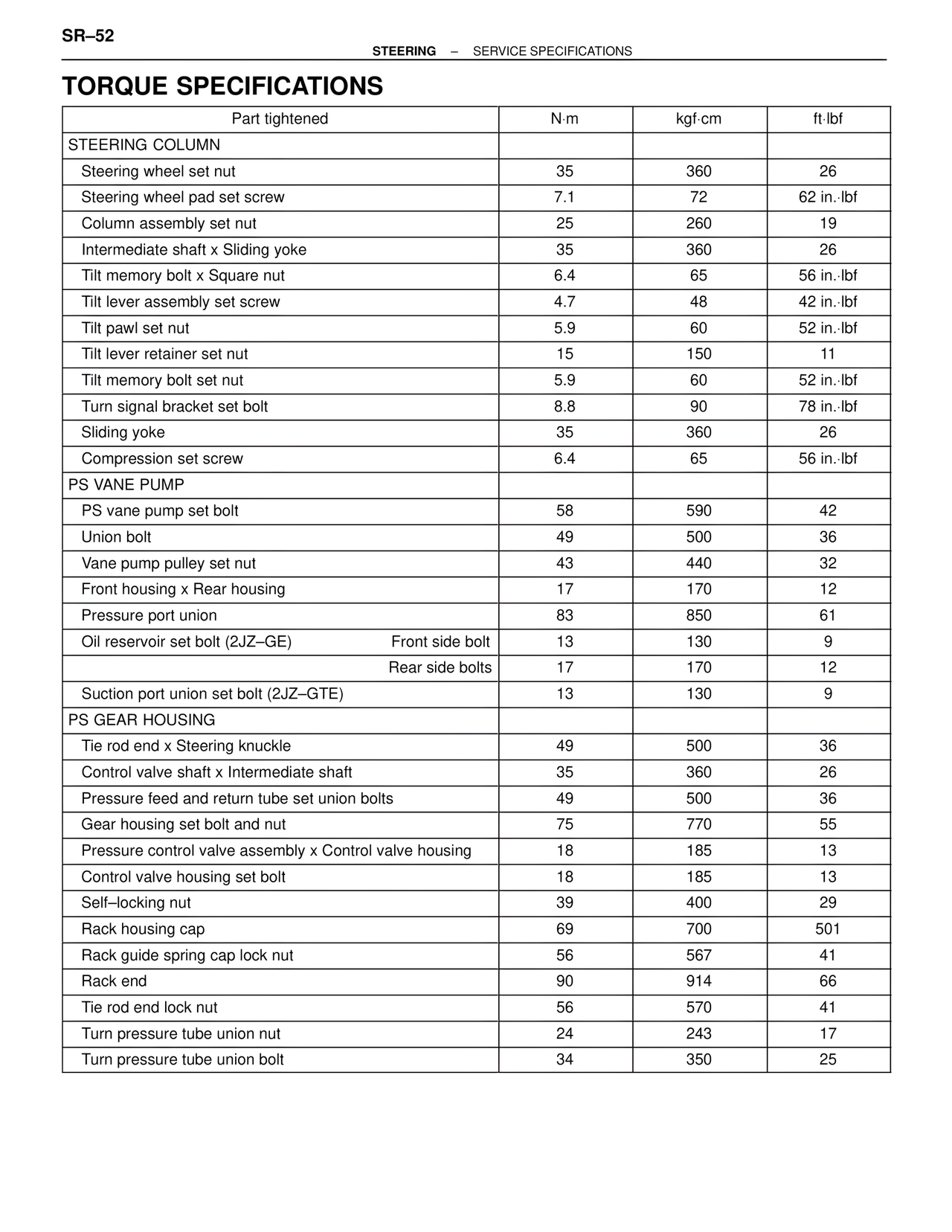

SR–52 STEERING – SERVICE SPECIFICATIONS TORQUE SPECIFICATIONS Part tightened | N·m | kgf·cm | ft·lbf STEERING COLUMN Steering wheel set nut | 35 | 360 | 26 Steering wheel pad set screw | 7.1 | 72 | 62 in.·lbf Column assembly set nut | 25 | 260 | 19 Intermediate shaft x Sliding yoke | 35 | 360 | 26 Tilt memory bolt x Square nut | 6.4 | 65 | 56 in.·lbf Tilt lever assembly set screw | 4.7 | 48 | 42 in.·lbf Tilt pawl set nut | 5.9 | 60 | 52 in.·lbf Tilt lever retainer set nut | 15 | 150 | 11 Tilt memory bolt set nut | 5.9 | 60 | 52 in.·lbf Turn signal bracket set bolt | 8.8 | 90 | 78 in.·lbf Sliding yoke | 35 | 360 | 26 Compression set screw | 6.4 | 65 | 56 in.·lbf PS VANE PUMP PS vane pump set bolt | 58 | 590 | 42 Union bolt | 49 | 500 | 36 Vane pump pulley set nut | 43 | 440 | 32 Front housing x Rear housing | 17 | 170 | 12 Pressure port union | 83 | 850 | 61 Oil reservoir set bolt (2JZ–GE) Front side bolt | 13 | 130 | 9 Rear side bolts | 17 | 170 | 12 Suction port union set bolt (2JZ–GTE) | 13 | 130 | 9 PS GEAR HOUSING Tie rod end x Steering knuckle | 49 | 500 | 36 Control valve shaft x Intermediate shaft | 35 | 360 | 26 Pressure feed and return tube set union bolts | 49 | 500 | 36 Gear housing set bolt and nut | 75 | 770 | 55 Pressure control valve assembly x Control valve housing | 18 | 185 | 13 Control valve housing set bolt | 18 | 185 | 13 Self–locking nut | 39 | 400 | 29 Rack housing cap | 69 | 700 | 501 Rack guide spring cap lock nut | 56 | 567 | 41 Rack end | 90 | 914 | 66 Tie rod end lock nut | 56 | 570 | 41 Turn pressure tube union nut | 24 | 243 | 17 Turn pressure tube union bolt | 34 | 350 | 25
