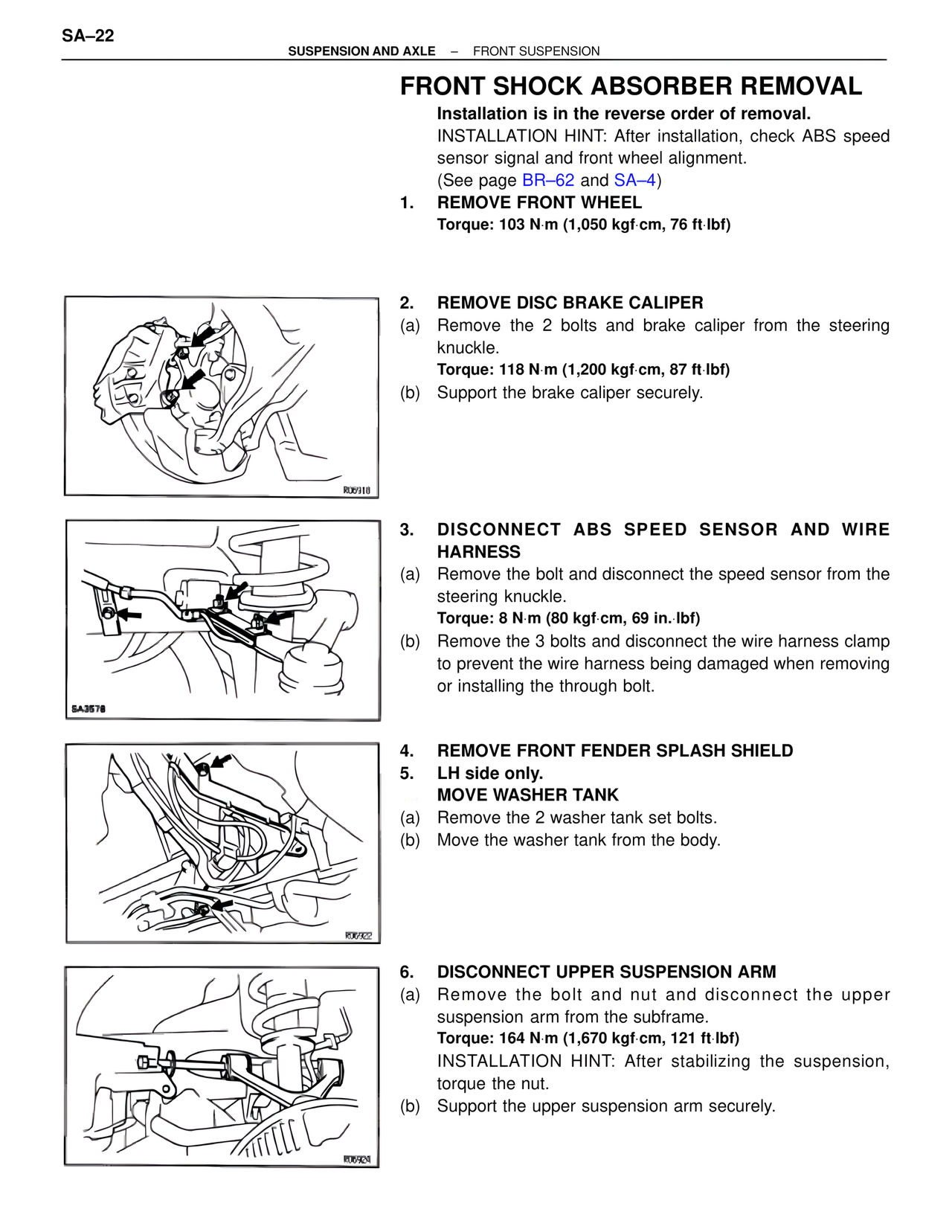

SA–22 SUSPENSION AND AXLE – FRONT SUSPENSION FRONT SHOCK ABSORBER REMOVAL Installation is in the reverse order of removal. INSTALLATION HINT: After installation, check ABS speed sensor signal and front wheel alignment. (See page BR–62 and SA–4) 1. REMOVE FRONT WHEEL Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf) 2. REMOVE DISC BRAKE CALIPER (a) Remove the 2 bolts and brake caliper from the steering knuckle. Torque: 118 N·m (1,200 kgf·cm, 87 ft·lbf) (b) Support the brake caliper securely. 3. DISCONNECT ABS SPEED SENSOR AND WIRE HARNESS (a) Remove the bolt and disconnect the speed sensor from the steering knuckle. Torque: 8 N·m (80 kgf·cm, 69 in.·lbf) (b) Remove the 3 bolts and disconnect the wire harness clamp to prevent the wire harness being damaged when removing or installing the through bolt. 4. REMOVE FRONT FENDER SPLASH SHIELD 5. LH side only. MOVE WASHER TANK (a) Remove the 2 washer tank set bolts. (b) Move the washer tank from the body. 6. DISCONNECT UPPER SUSPENSION ARM (a) Remove the bolt and nut and disconnect the upper suspension arm from the subframe. Torque: 164 N·m (1,670 kgf·cm, 121 ft·lbf) INSTALLATION HINT: After stabilizing the suspension, torque the nut. (b) Support the upper suspension arm securely.
