SA–33
SUSPENSION AND AXLE – FRONT SUSPENSION

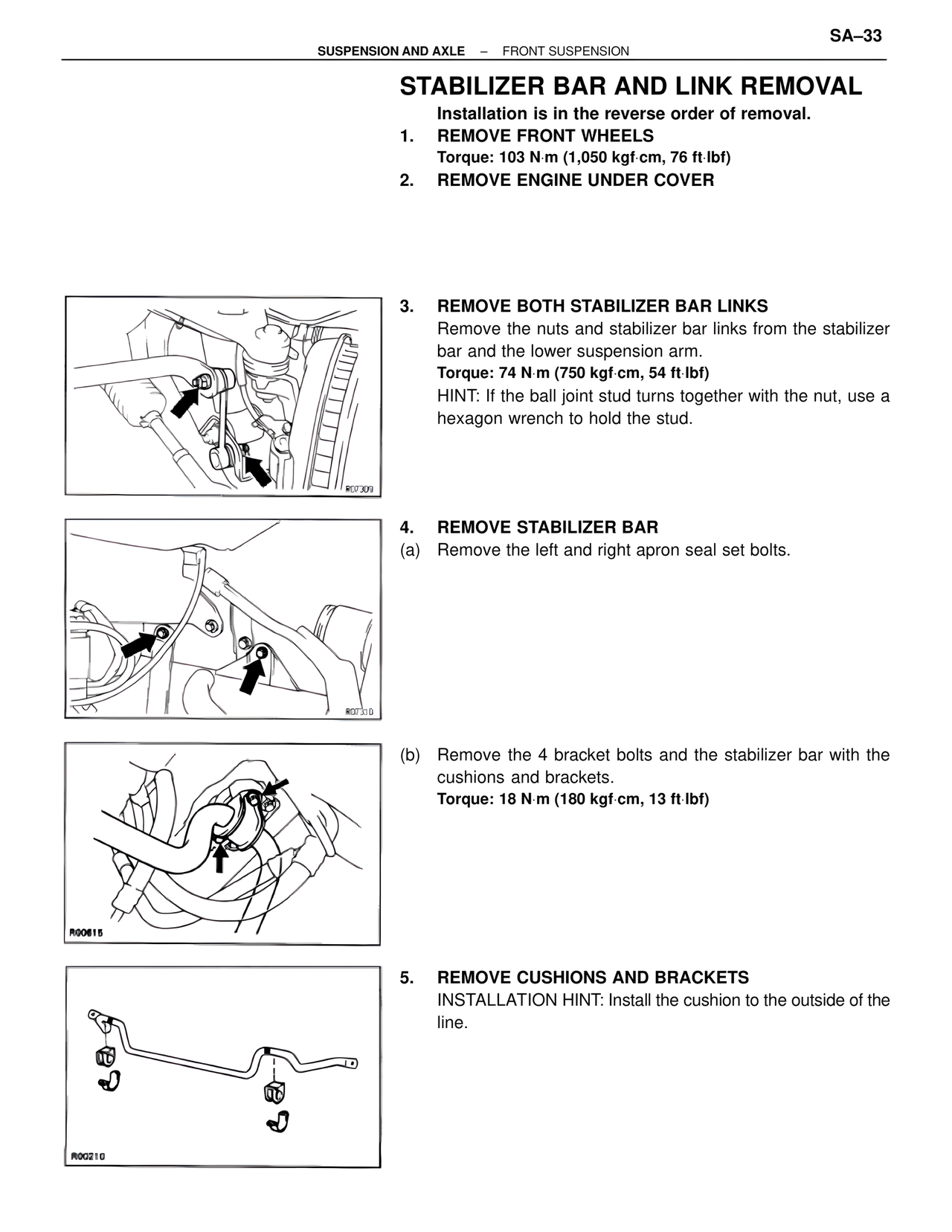

STABILIZER BAR AND LINK REMOVAL
Installation is in the reverse order of removal.
1. REMOVE FRONT WHEELS
Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf)
2. REMOVE ENGINE UNDER COVER
3. REMOVE BOTH STABILIZER BAR LINKS
Remove the nuts and stabilizer bar links from the stabilizer bar and the lower suspension arm.
Torque: 74 N·m (750 kgf·cm, 54 ft·lbf)
HINT: If the ball joint stud turns together with the nut, use a hexagon wrench to hold the stud.
4. REMOVE STABILIZER BAR
(a) Remove the left and right apron seal set bolts.
(b) Remove the 4 bracket bolts and the stabilizer bar with the cushions and brackets.
Torque: 18 N·m (180 kgf·cm, 13 ft·lbf)
5. REMOVE CUSHIONS AND BRACKETS
INSTALLATION HINT: Install the cushion to the outside of the line.
R07309
R07310
R00615
R00210
