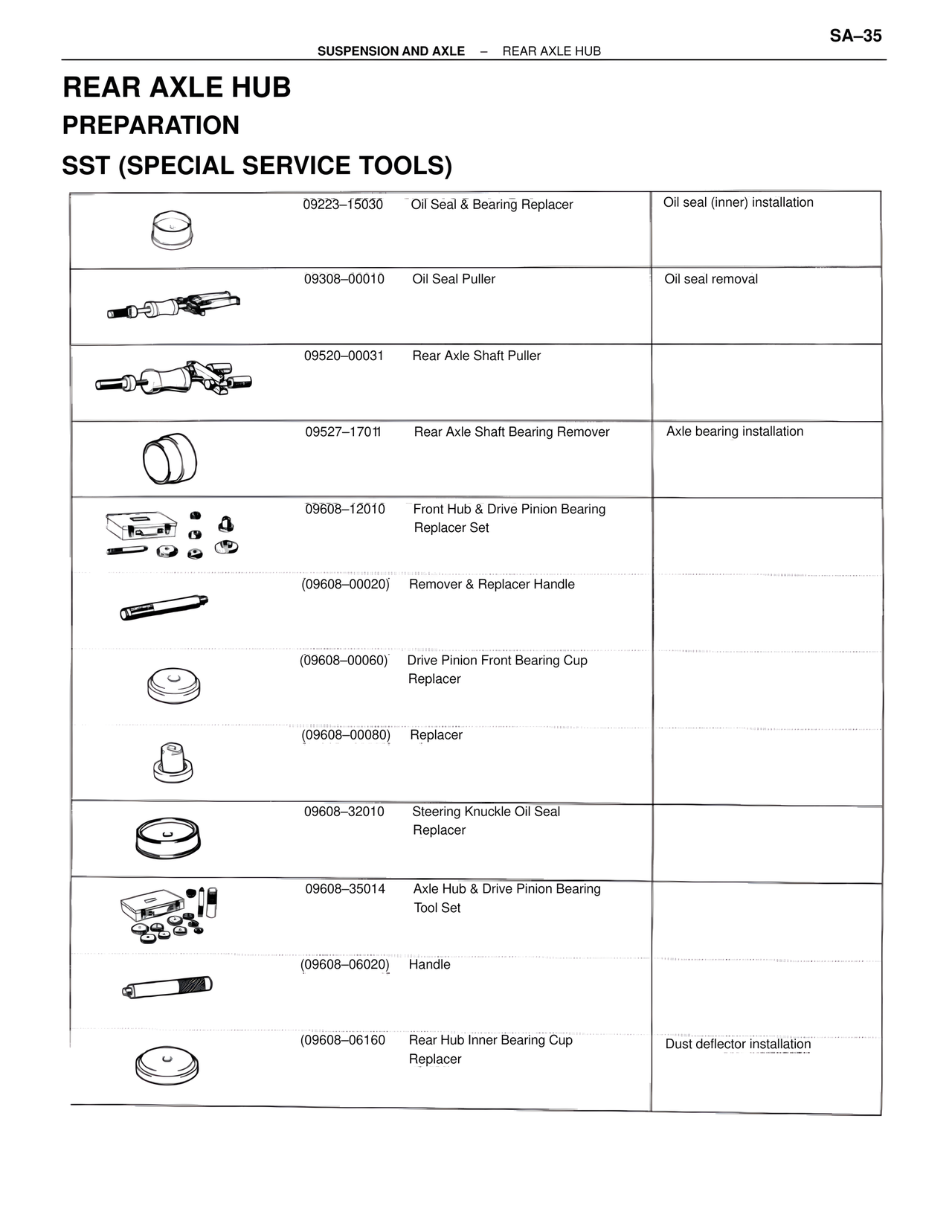

REAR AXLE HUB
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09223–15030 Oil Seal & Bearing Replacer Oil seal (inner) installation
09308–00010 Oil Seal Puller Oil seal removal
09520–00031 Rear Axle Shaft Puller
09527–17011 Rear Axle Shaft Bearing Remover Axle bearing installation
09608–12010 Front Hub & Drive Pinion Bearing Replacer Set
(09608–00020) Remover & Replacer Handle
(09608–00060) Drive Pinion Front Bearing Cup Replacer
(09608–00080) Replacer
09608–32010 Steering Knuckle Oil Seal Replacer
09608–35014 Axle Hub & Drive Pinion Bearing Tool Set
(09608–06020) Handle
(09608–06160) Rear Hub Inner Bearing Cup Replacer Dust deflector installation
