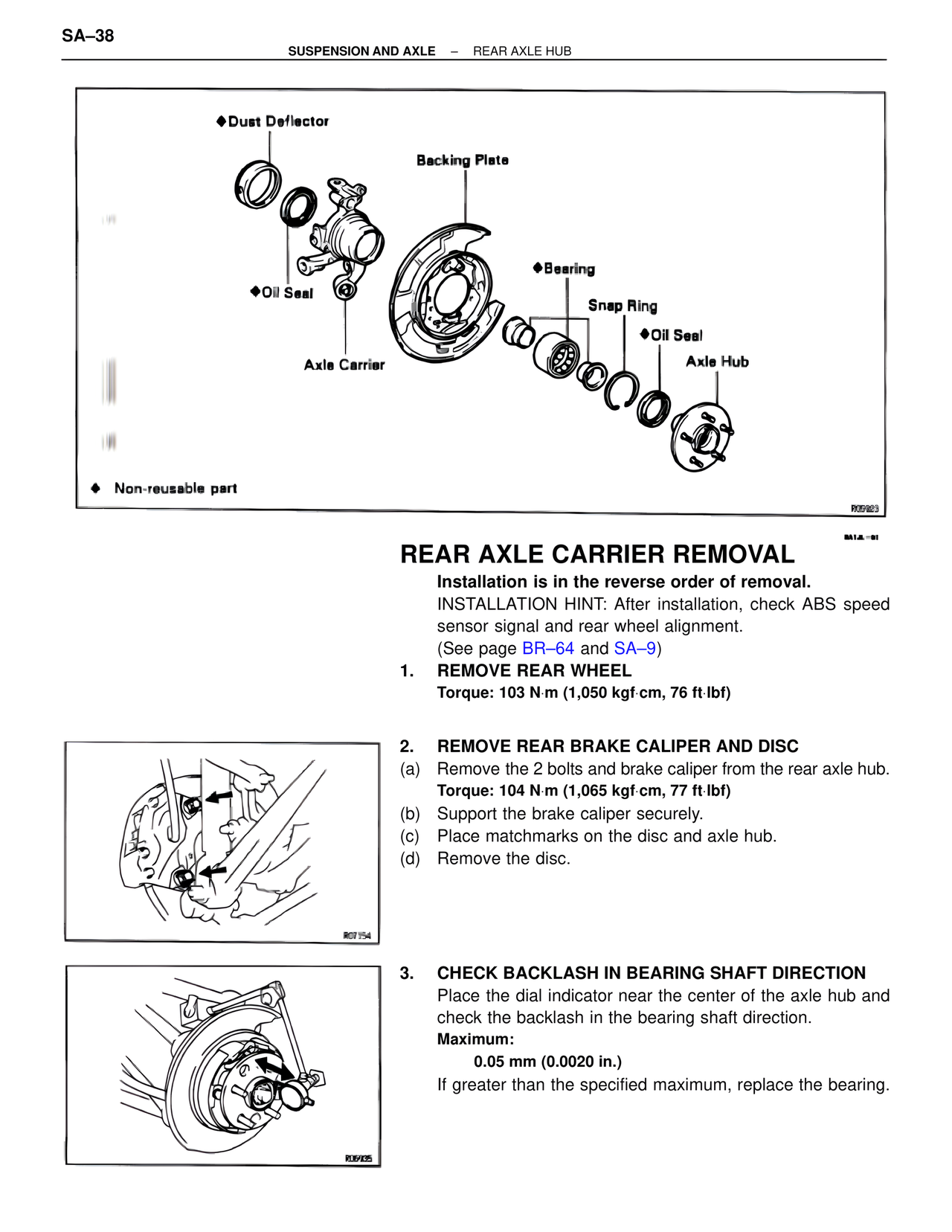

SA–38 SUSPENSION AND AXLE – REAR AXLE HUB ♦Dust Deflector Backing Plate ♦Bearing Snap Ring ♦Oil Seal ♦Oil Seal Axle Hub Axle Carrier ♦ Non-reusable part R05923 SA-1-01 REAR AXLE CARRIER REMOVAL Installation is in the reverse order of removal. INSTALLATION HINT: After installation, check ABS speed sensor signal and rear wheel alignment. (See page BR–64 and SA–9) 1. REMOVE REAR WHEEL Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf) 2. REMOVE REAR BRAKE CALIPER AND DISC (a) Remove the 2 bolts and brake caliper from the rear axle hub. Torque: 104 N·m (1,065 kgf·cm, 77 ft·lbf) (b) Support the brake caliper securely. (c) Place matchmarks on the disc and axle hub. (d) Remove the disc. R02154 3. CHECK BACKLASH IN BEARING SHAFT DIRECTION Place the dial indicator near the center of the axle hub and check the backlash in the bearing shaft direction. Maximum: 0.05 mm (0.0020 in.) If greater than the specified maximum, replace the bearing. R05035
