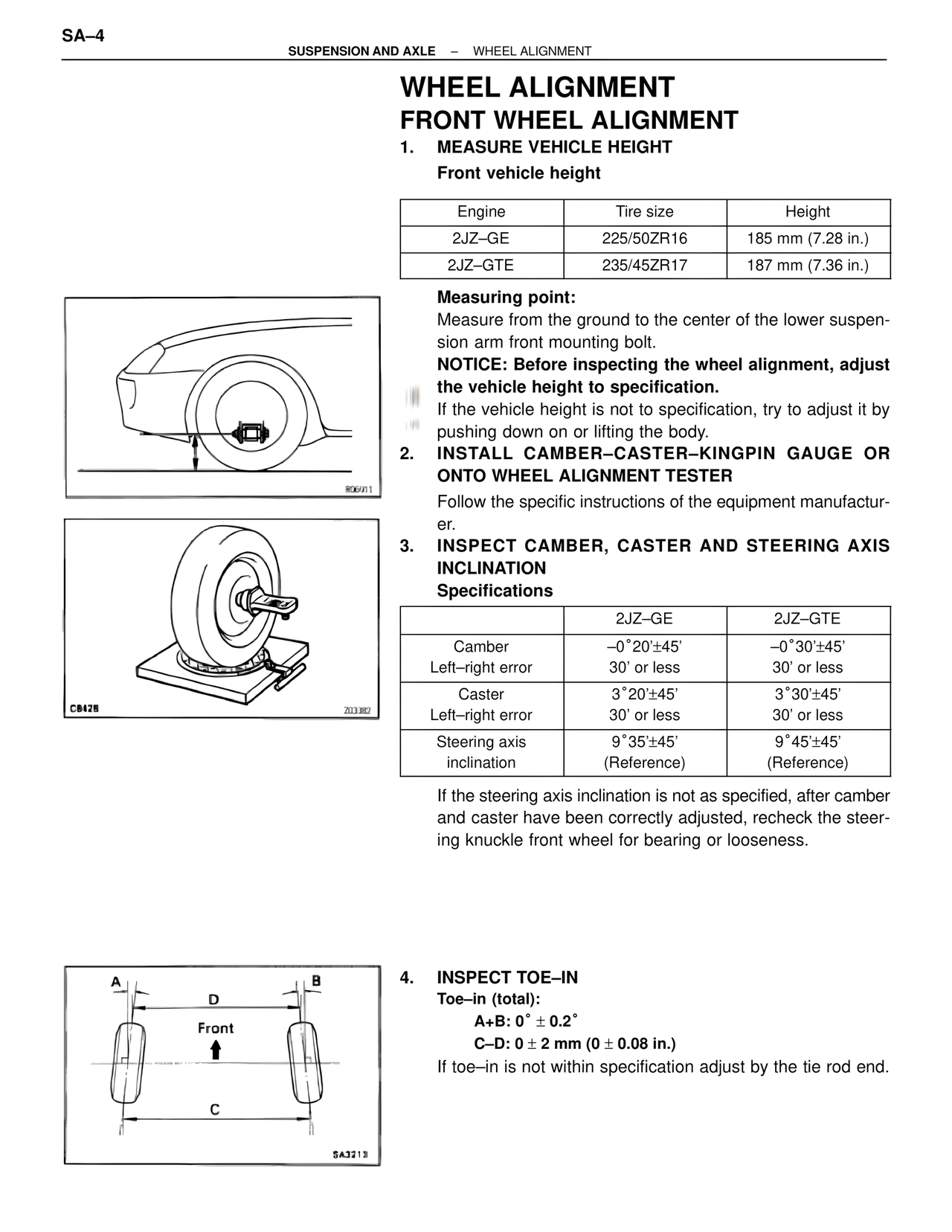

SA–4
SUSPENSION AND AXLE – WHEEL ALIGNMENT
WHEEL ALIGNMENT
FRONT WHEEL ALIGNMENT
1. MEASURE VEHICLE HEIGHT
Front vehicle height
Engine | Tire size | Height
2JZ–GE | 225/50ZR16 | 185 mm (7.28 in.)
2JZ–GTE | 235/45ZR17 | 187 mm (7.36 in.)
Measuring point:
Measure from the ground to the center of the lower suspension arm front mounting bolt.
NOTICE: Before inspecting the wheel alignment, adjust the vehicle height to specification.
If the vehicle height is not to specification, try to adjust it by pushing down on or lifting the body.
2. INSTALL CAMBER–CASTER–KINGPIN GAUGE OR ONTO WHEEL ALIGNMENT TESTER
Follow the specific instructions of the equipment manufacturer.
3. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
Specifications
| | 2JZ–GE | 2JZ–GTE |
Camber | –0°20'±45' | –0°30'±45'
Left–right error | 30' or less | 30' or less
Caster | 3°20'±45' | 3°30'±45'
Left–right error | 30' or less | 30' or less
Steering axis inclination | 9°35'±45' (Reference) | 9°45'±45' (Reference)
If the steering axis inclination is not as specified, after camber and caster have been correctly adjusted, recheck the steering knuckle front wheel for bearing or looseness.
4. INSPECT TOE–IN
Toe–in (total):
A+B: 0° ± 0.2°
C–D: 0 ± 2 mm (0 ± 0.08 in.)
If toe–in is not within specification adjust by the tie rod end.
