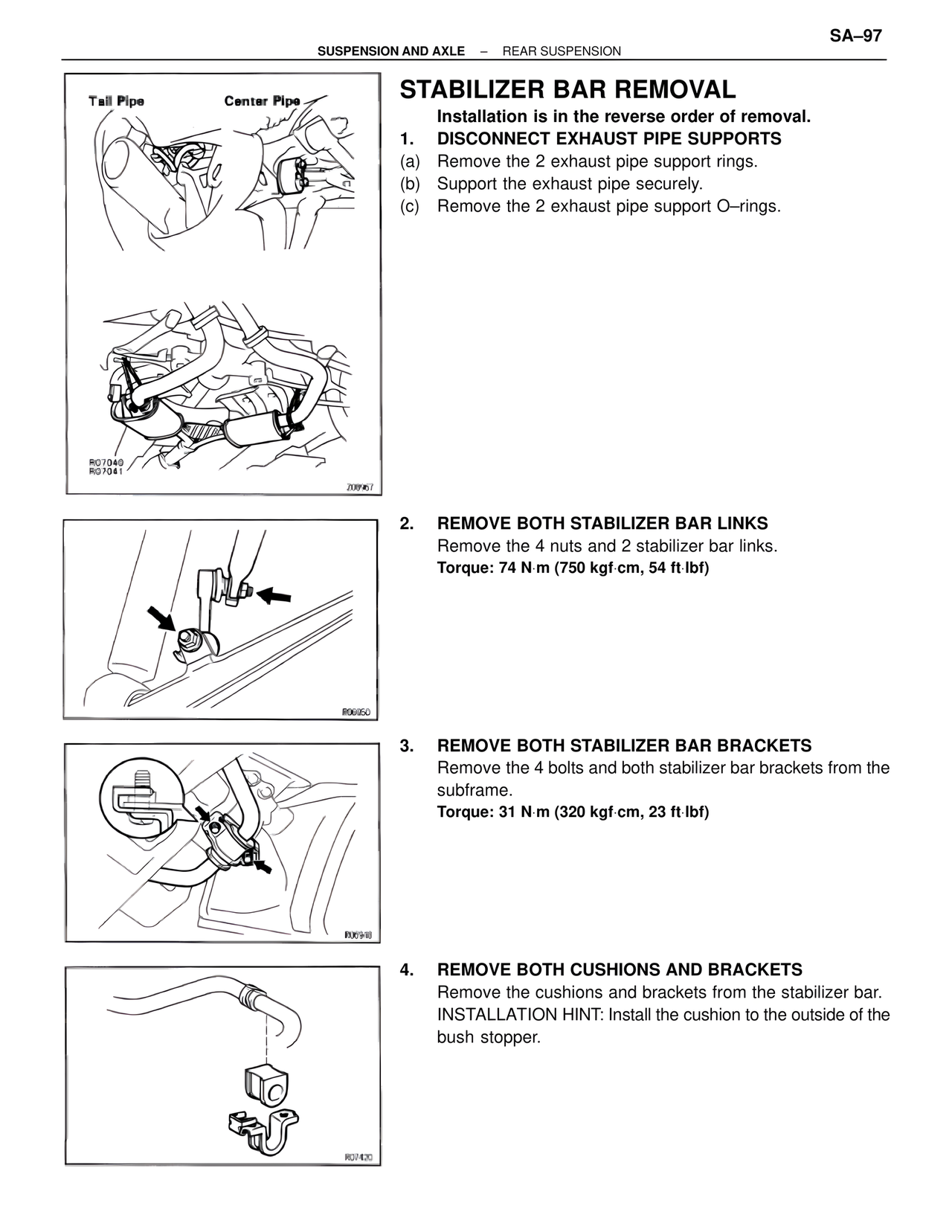

SUSPENSION AND AXLE – REAR SUSPENSION SA–97 Tail Pipe Center Pipe R07040 R07041 STABILIZER BAR REMOVAL Installation is in the reverse order of removal. 1. DISCONNECT EXHAUST PIPE SUPPORTS (a) Remove the 2 exhaust pipe support rings. (b) Support the exhaust pipe securely. (c) Remove the 2 exhaust pipe support O–rings. R06950 2. REMOVE BOTH STABILIZER BAR LINKS Remove the 4 nuts and 2 stabilizer bar links. Torque: 74 N·m (750 kgf·cm, 54 ft·lbf) R06948 3. REMOVE BOTH STABILIZER BAR BRACKETS Remove the 4 bolts and both stabilizer bar brackets from the subframe. Torque: 31 N·m (320 kgf·cm, 23 ft·lbf) R07420 4. REMOVE BOTH CUSHIONS AND BRACKETS Remove the cushions and brackets from the stabilizer bar. INSTALLATION HINT: Install the cushion to the outside of the bush stopper.
