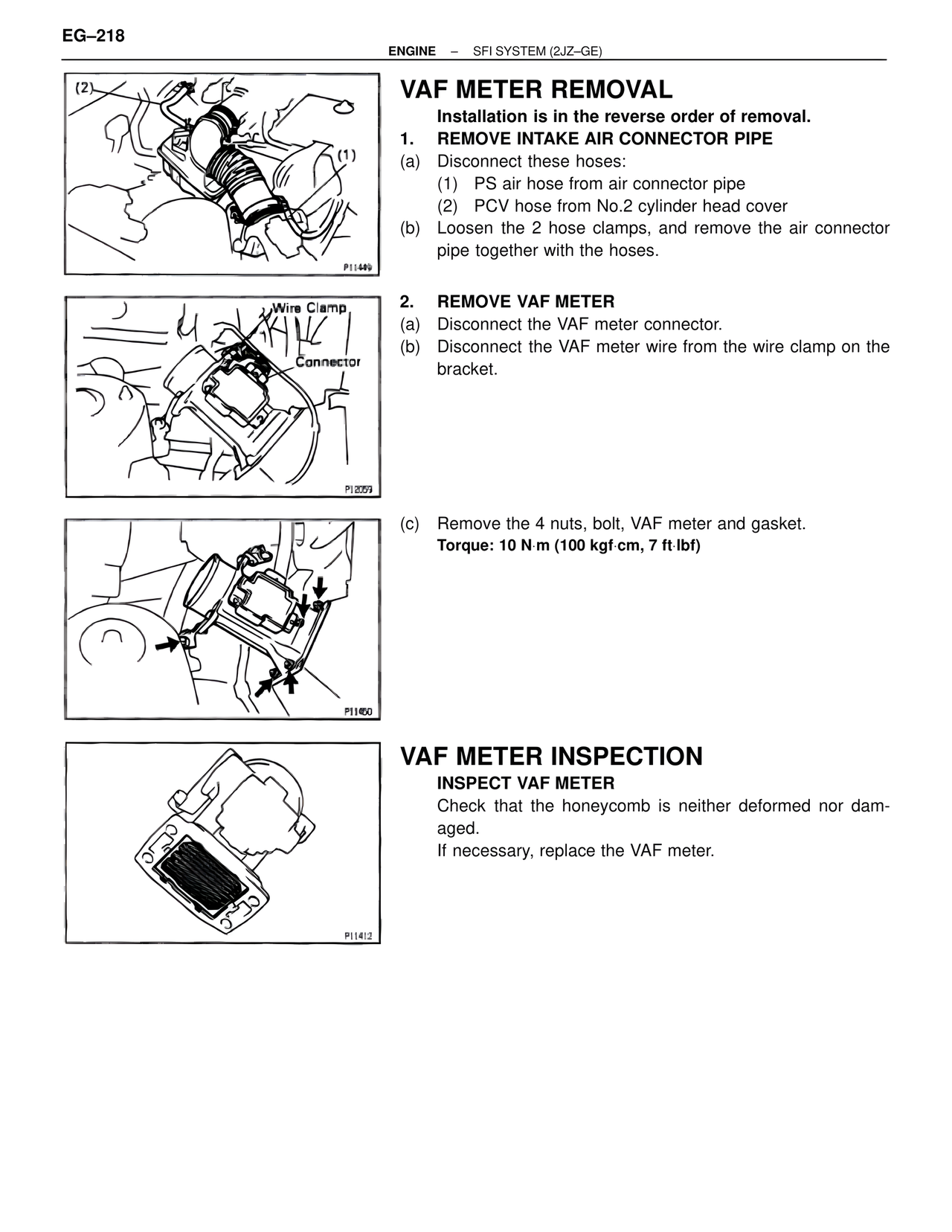

EG–218 ENGINE – SFI SYSTEM (2JZ–GE) VAF METER REMOVAL Installation is in the reverse order of removal. 1. REMOVE INTAKE AIR CONNECTOR PIPE (a) Disconnect these hoses: (1) PS air hose from air connector pipe (2) PCV hose from No.2 cylinder head cover (b) Loosen the 2 hose clamps, and remove the air connector pipe together with the hoses. 2. REMOVE VAF METER (a) Disconnect the VAF meter connector. (b) Disconnect the VAF meter wire from the wire clamp on the bracket. Wire Clamp Connector (c) Remove the 4 nuts, bolt, VAF meter and gasket. Torque: 10 N·m (100 kgf·cm, 7 ft·lbf) VAF METER INSPECTION INSPECT VAF METER Check that the honeycomb is neither deformed nor damaged. If necessary, replace the VAF meter. P11449 P12059 P11450 P11412
