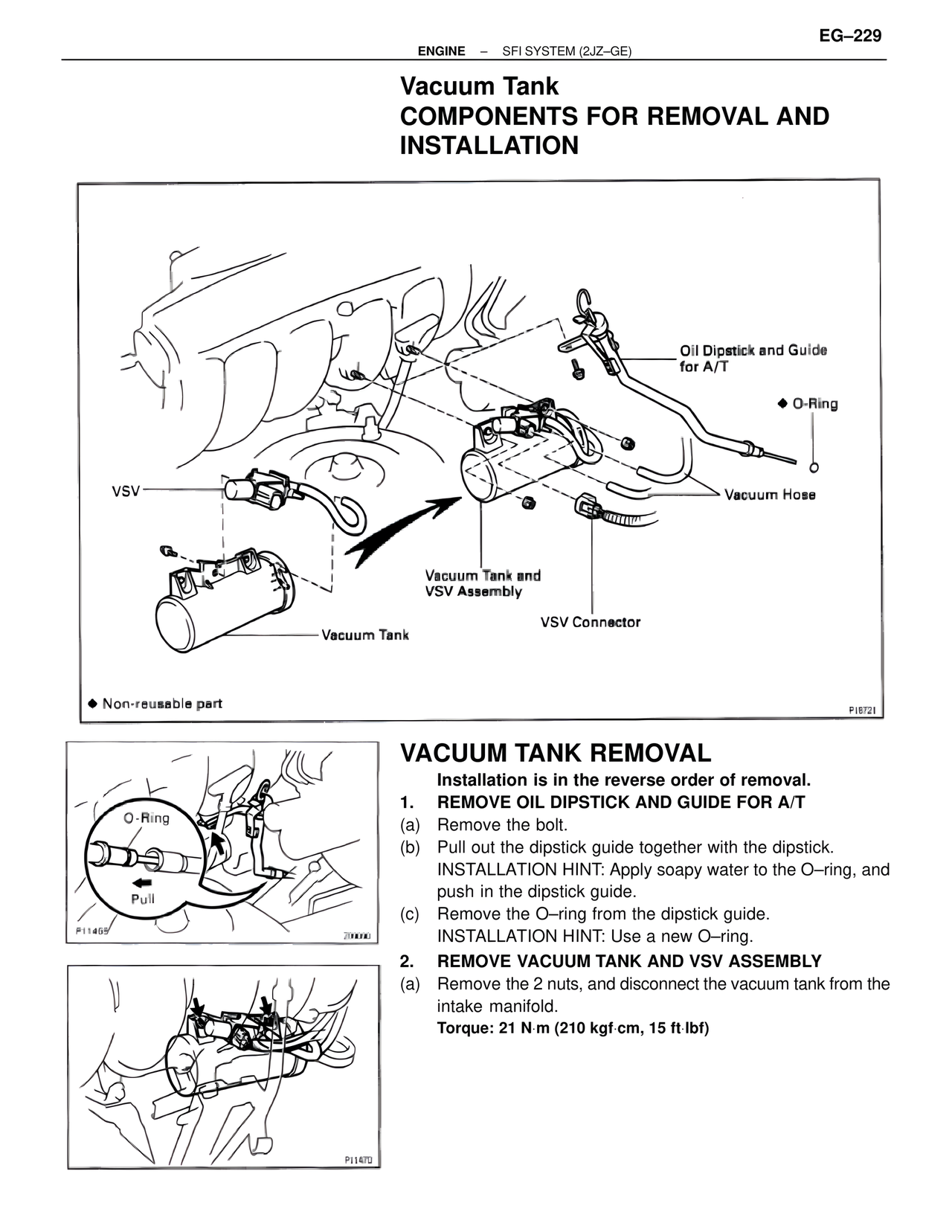

EG–229 ENGINE – SFI SYSTEM (2JZ–GE) Vacuum Tank COMPONENTS FOR REMOVAL AND INSTALLATION Oil Dipstick and Guide for A/T ♦ O-Ring VSV Vacuum Hose Vacuum Tank and VSV Assembly VSV Connector Vacuum Tank ♦ Non-reusable part P18721 O-Ring Pull P11469 200090 P11470 VACUUM TANK REMOVAL Installation is in the reverse order of removal. 1. REMOVE OIL DIPSTICK AND GUIDE FOR A/T (a) Remove the bolt. (b) Pull out the dipstick guide together with the dipstick. INSTALLATION HINT: Apply soapy water to the O–ring, and push in the dipstick guide. (c) Remove the O–ring from the dipstick guide. INSTALLATION HINT: Use a new O–ring. 2. REMOVE VACUUM TANK AND VSV ASSEMBLY (a) Remove the 2 nuts, and disconnect the vacuum tank from the intake manifold. Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)
