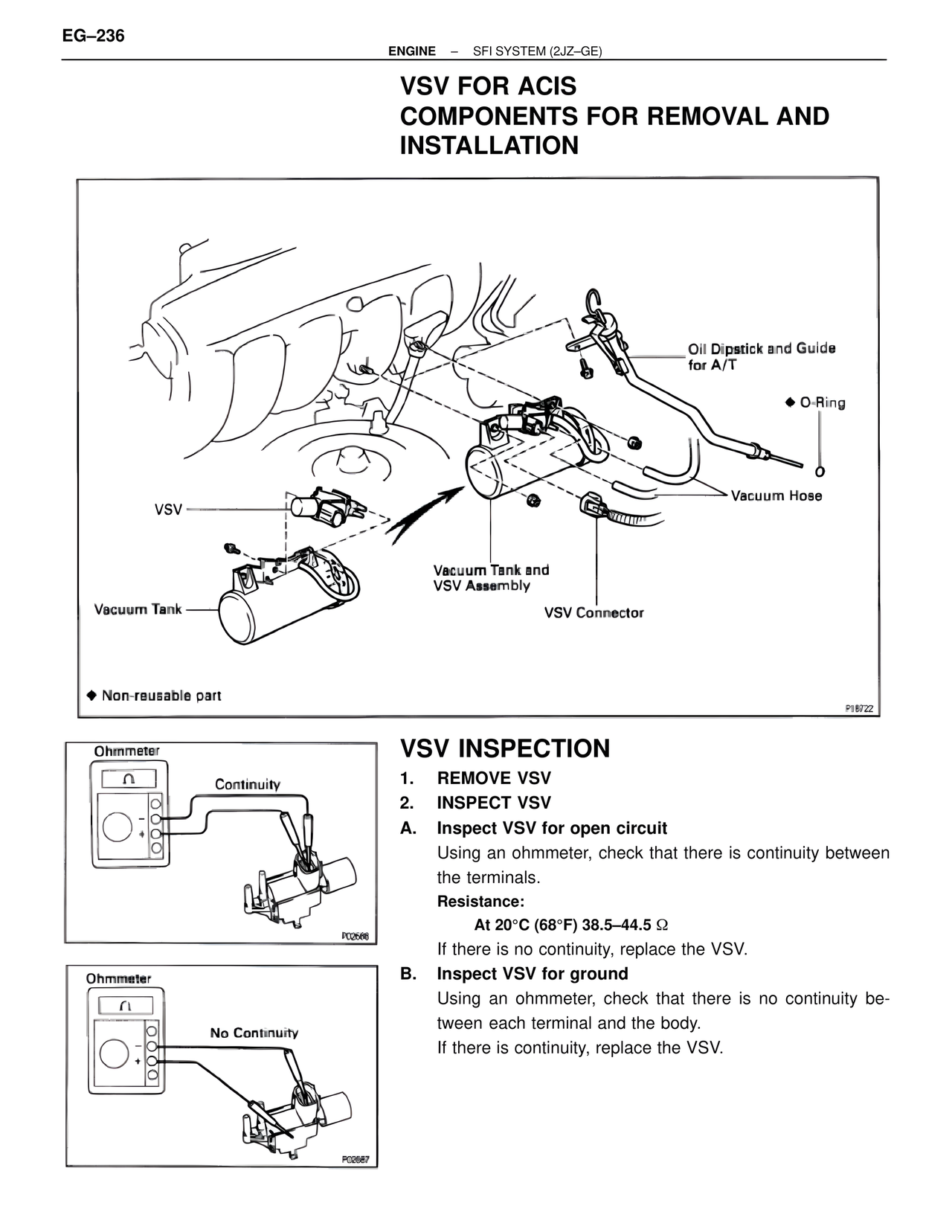

EG–236 ENGINE – SFI SYSTEM (2JZ–GE) VSV FOR ACIS COMPONENTS FOR REMOVAL AND INSTALLATION Oil Dipstick and Guide for A/T ♦ O-Ring Vacuum Hose VSV Vacuum Tank and VSV Assembly VSV Connector Vacuum Tank ♦ Non-reusable part P18722 VSV INSPECTION 1. REMOVE VSV 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuity between the terminals. Resistance: At 20°C (68°F) 38.5–44.5 Ω If there is no continuity, replace the VSV. B. Inspect VSV for ground Using an ohmmeter, check that there is no continuity be- tween each terminal and the body. If there is continuity, replace the VSV. Ohmmeter Continuity P00566 Ohmmeter No Continuity P00567
