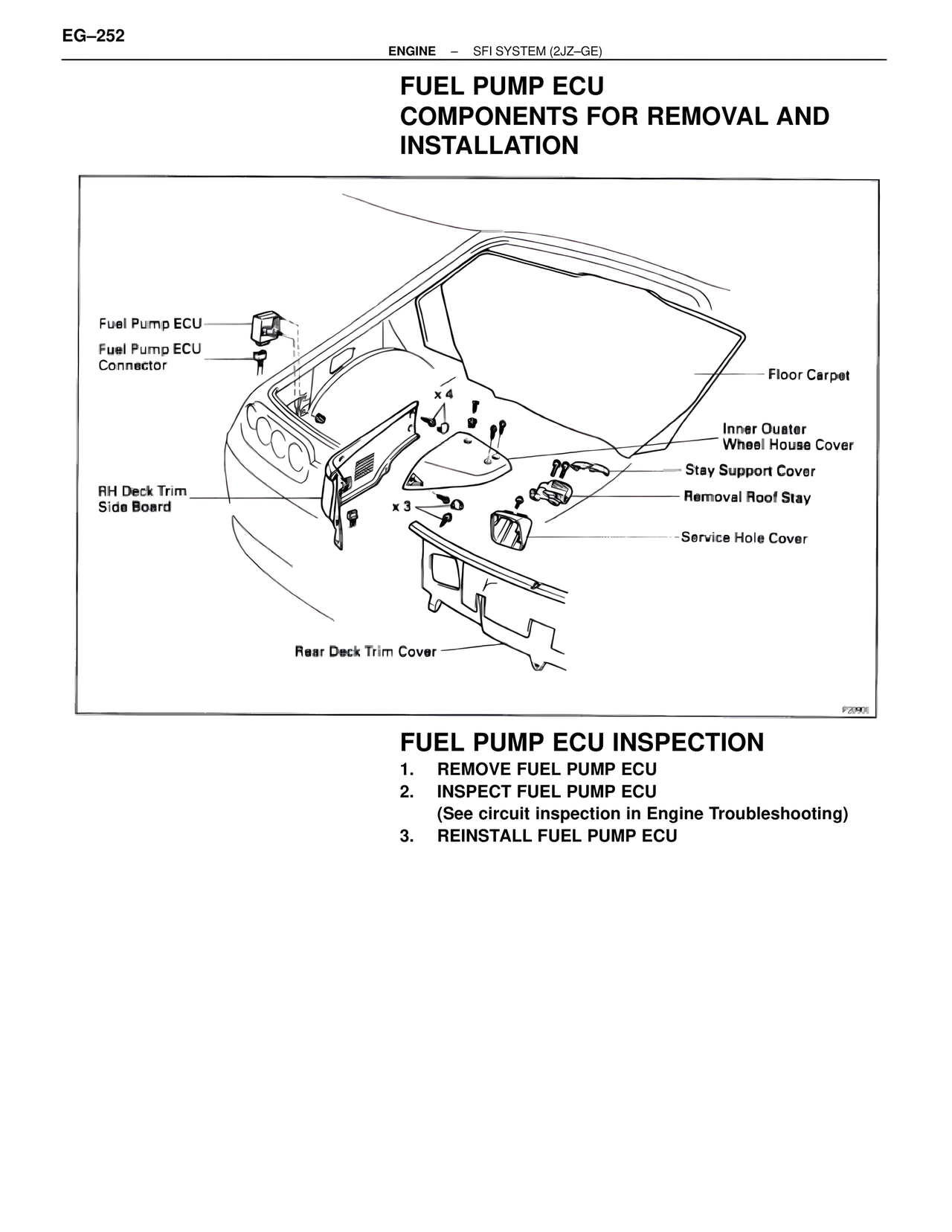

EG–252 ENGINE – SFI SYSTEM (2JZ–GE) FUEL PUMP ECU COMPONENTS FOR REMOVAL AND INSTALLATION Fuel Pump ECU Fuel Pump ECU Connector Floor Carpet Inner Ouster Wheel House Cover Stay Support Cover Removal Roof Stay RH Deck Trim Side Board x 4 x 3 Service Hole Cover Rear Deck Trim Cover P20900 FUEL PUMP ECU INSPECTION 1. REMOVE FUEL PUMP ECU 2. INSPECT FUEL PUMP ECU (See circuit inspection in Engine Troubleshooting) 3. REINSTALL FUEL PUMP ECU
