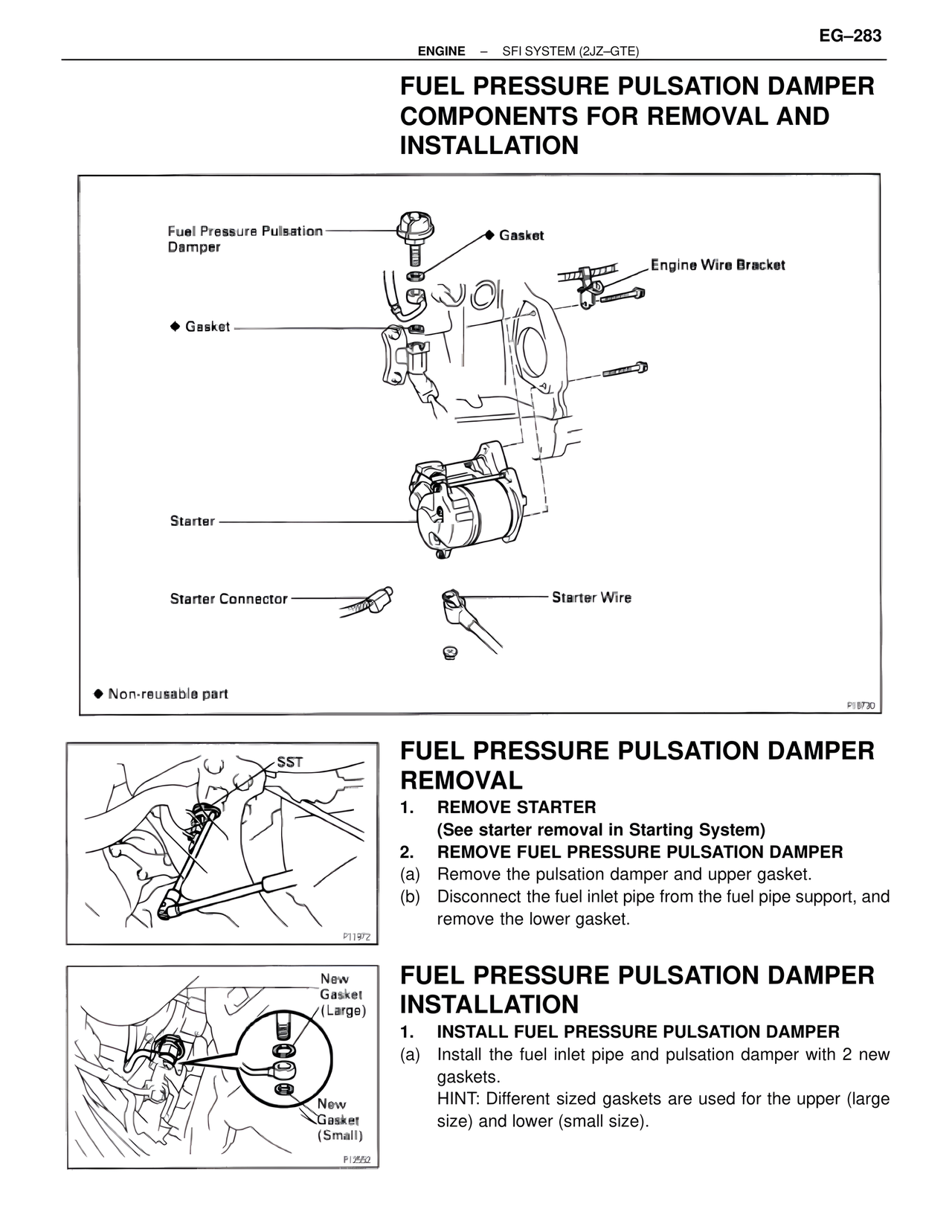

EG–283 ENGINE – SFI SYSTEM (2JZ–GTE) FUEL PRESSURE PULSATION DAMPER COMPONENTS FOR REMOVAL AND INSTALLATION Fuel Pressure Pulsation Damper ♦ Gasket Gasket Engine Wire Bracket ♦ Gasket Starter Starter Connector Starter Wire ♦ Non-reusable part P18730 FUEL PRESSURE PULSATION DAMPER REMOVAL SST P11972 1. REMOVE STARTER (See starter removal in Starting System) 2. REMOVE FUEL PRESSURE PULSATION DAMPER (a) Remove the pulsation damper and upper gasket. (b) Disconnect the fuel inlet pipe from the fuel pipe support, and remove the lower gasket. FUEL PRESSURE PULSATION DAMPER INSTALLATION New Gasket (Large) New Gasket (Small) P12552 1. INSTALL FUEL PRESSURE PULSATION DAMPER (a) Install the fuel inlet pipe and pulsation damper with 2 new gaskets. HINT: Different sized gaskets are used for the upper (large size) and lower (small size).
