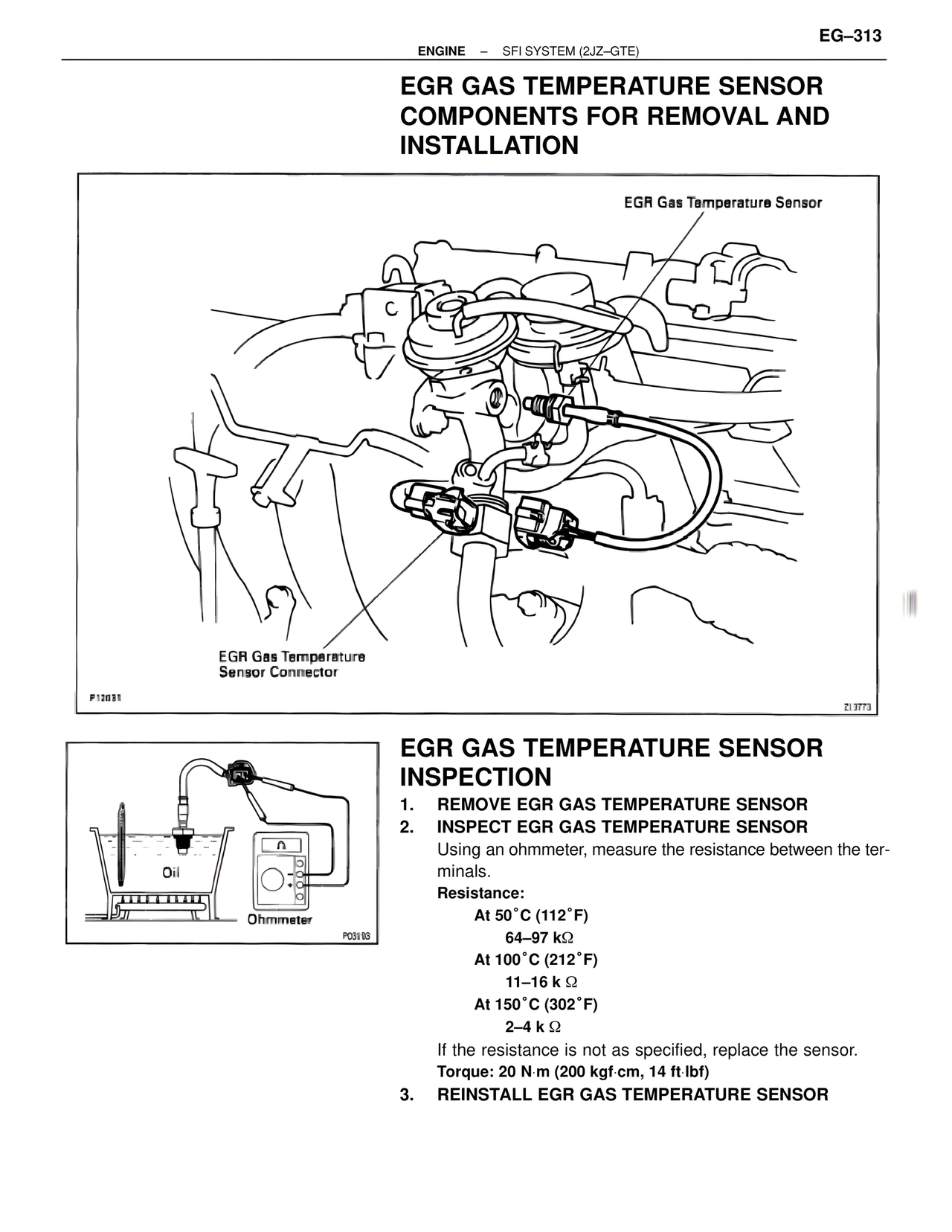

EG–313 ENGINE – SFI SYSTEM (2JZ–GTE) EGR GAS TEMPERATURE SENSOR COMPONENTS FOR REMOVAL AND INSTALLATION EGR Gas Temperature Sensor EGR Gas Temperature Sensor Connector P12031 Zl3773 EGR GAS TEMPERATURE SENSOR INSPECTION 1. REMOVE EGR GAS TEMPERATURE SENSOR 2. INSPECT EGR GAS TEMPERATURE SENSOR Using an ohmmeter, measure the resistance between the terminals. Resistance: At 50˚C (112˚F) 64–97 kΩ At 100˚C (212˚F) 11–16 kΩ At 150˚C (302˚F) 2–4 kΩ If the resistance is not as specified, replace the sensor. Torque: 20 N·m (200 kgf·cm, 14 ft·lbf) 3. REINSTALL EGR GAS TEMPERATURE SENSOR Oil Ohmmeter P09198
