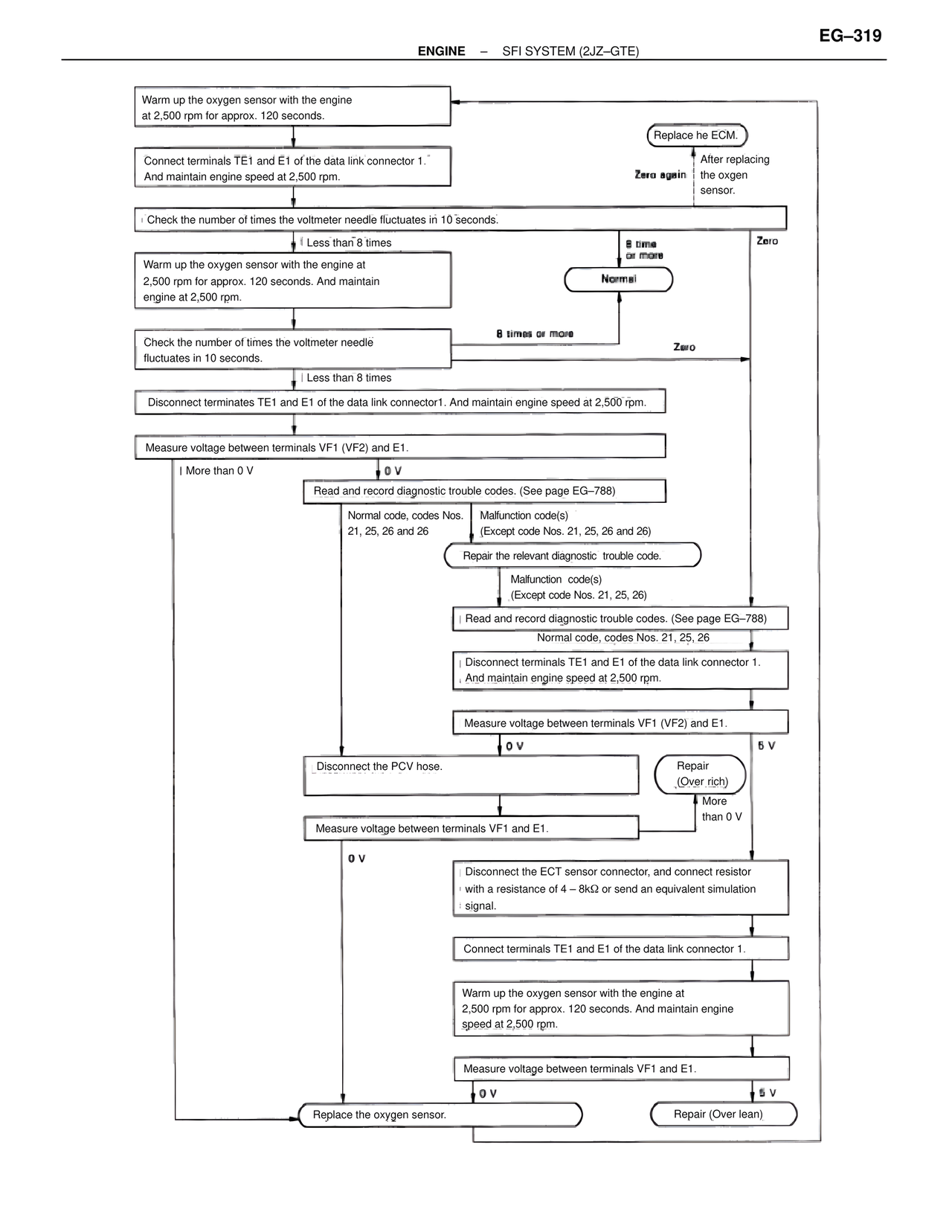

Warm up the oxygen sensor with the engine at 2,500 rpm for approx. 120 seconds. Connect terminals TE1 and E1 of the data link connector 1. And maintain engine speed at 2,500 rpm. Check the number of times the voltmeter needle fluctuates in 10 seconds. Less than 8 times Warm up the oxygen sensor with the engine at 2,500 rpm for approx. 120 seconds. And maintain engine at 2,500 rpm. Check the number of times the voltmeter needle fluctuates in 10 seconds. Less than 8 times Disconnect terminates TE1 and E1 of the data link connector1. And maintain engine speed at 2,500 rpm. Measure voltage between terminals VF1 (VF2) and E1. More than 0 V 0 V Read and record diagnostic trouble codes. (See page EG-788) Normal code, codes Nos. 21, 25, 26 and 26 Malfunction code(s) (Except code Nos. 21, 25, 26 and 26) Repair the relevant diagnostic trouble code. Malfunction code(s) (Except code Nos. 21, 25, 26) Read and record diagnostic trouble codes. (See page EG-788) Normal code, codes Nos. 21, 25, 26 Disconnect terminals TE1 and E1 of the data link connector 1. And maintain engine speed at 2,500 rpm. Measure voltage between terminals VF1 (VF2) and E1. 0 V 5 V Disconnect the PCV hose. Repair (Over rich) More than 0 V Measure voltage between terminals VF1 and E1. 0 V Disconnect the ECT sensor connector, and connect resistor with a resistance of 4 - 8kΩ or send an equivalent simulation signal. Connect terminals TE1 and E1 of the data link connector 1. Warm up the oxygen sensor with the engine at 2,500 rpm for approx. 120 seconds. And maintain engine speed at 2,500 rpm. Measure voltage between terminals VF1 and E1. 0 V 5 V Replace the oxygen sensor. Repair (Over lean) 8 times or more Normal 8 times or more Zero Zero again Replace he ECM. After replacing the oxygen sensor. Zero
