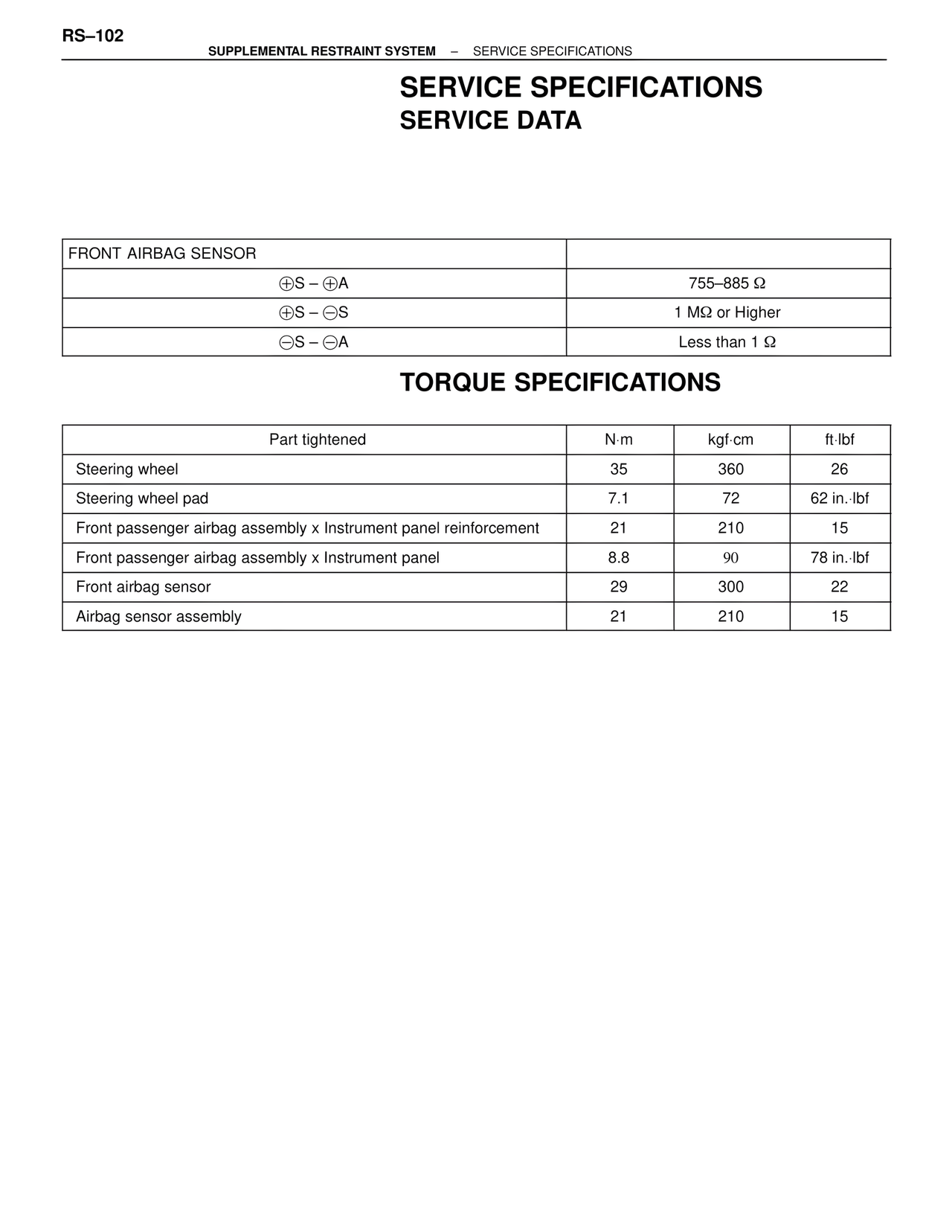

RS–102 SUPPLEMENTAL RESTRAINT SYSTEM – SERVICE SPECIFICATIONS SERVICE SPECIFICATIONS SERVICE DATA FRONT AIRBAG SENSOR ⊕S – ⊕A 755–885 Ω ⊕S – ⊖S 1 MΩ or Higher ⊖S – ⊖A Less than 1 Ω TORQUE SPECIFICATIONS Part tightened N·m kgf·cm ft·lbf Steering wheel 35 360 26 Steering wheel pad 7.1 72 62 in.·lbf Front passenger airbag assembly x Instrument panel reinforcement 21 210 15 Front passenger airbag assembly x Instrument panel 8.8 90 78 in.·lbf Front airbag sensor 29 300 22 Airbag sensor assembly 21 210 15
