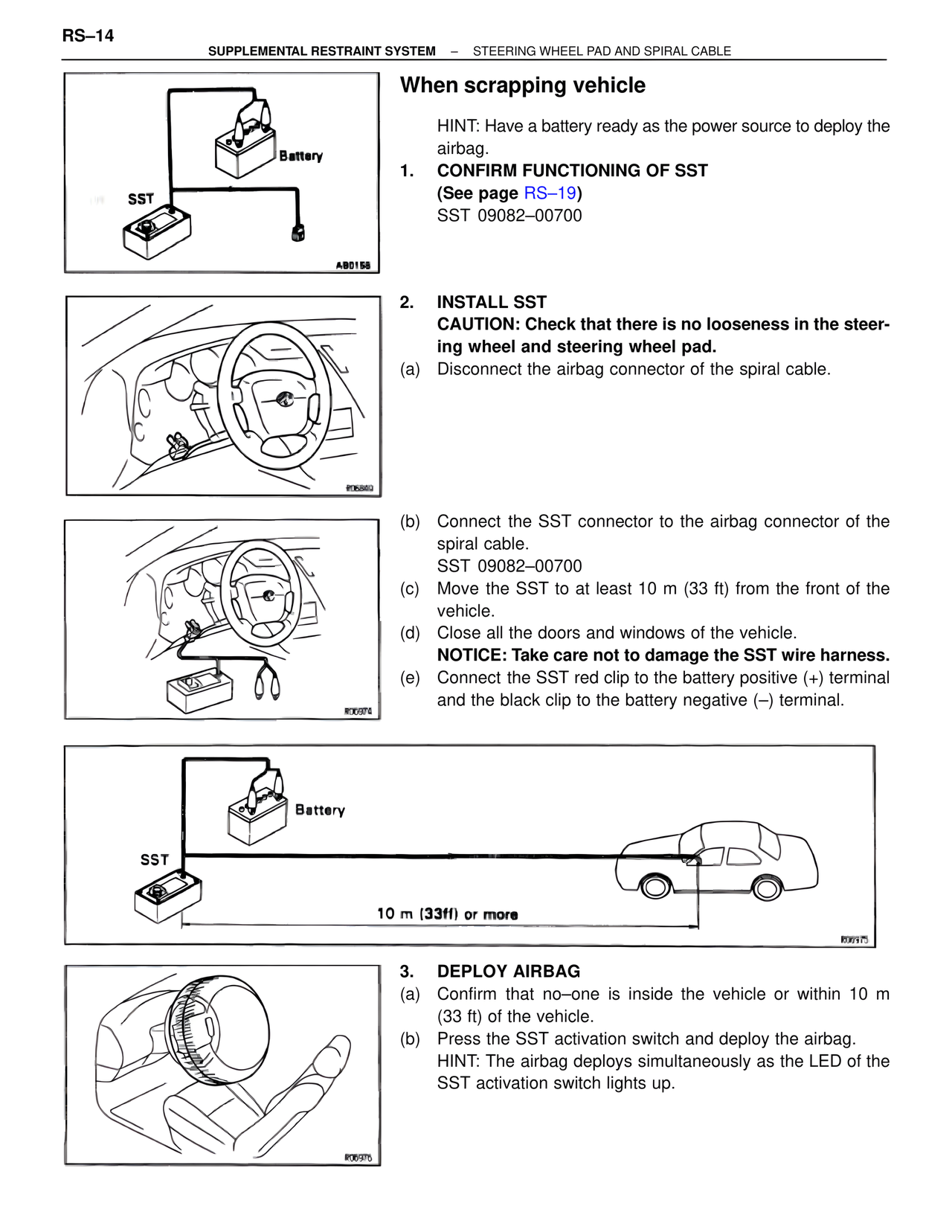

SUPPLEMENTAL RESTRAINT SYSTEM – STEERING WHEEL PAD AND SPIRAL CABLE
Battery
SST
AB0158
When scrapping vehicle
HINT: Have a battery ready as the power source to deploy the airbag.
1. CONFIRM FUNCTIONING OF SST
(See page RS–19)
SST 09082–00700
R06860
2. INSTALL SST
CAUTION: Check that there is no looseness in the steering wheel and steering wheel pad.
(a) Disconnect the airbag connector of the spiral cable.
R06972
(b) Connect the SST connector to the airbag connector of the spiral cable.
SST 09082–00700
(c) Move the SST to at least 10 m (33 ft) from the front of the vehicle.
(d) Close all the doors and windows of the vehicle.
NOTICE: Take care not to damage the SST wire harness.
(e) Connect the SST red clip to the battery positive (+) terminal and the black clip to the battery negative (–) terminal.
Battery
SST
10 m (33ft) or more
R06975
R06976
3. DEPLOY AIRBAG
(a) Confirm that no–one is inside the vehicle or within 10 m (33 ft) of the vehicle.
(b) Press the SST activation switch and deploy the airbag.
HINT: The airbag deploys simultaneously as the LED of the SST activation switch lights up.
