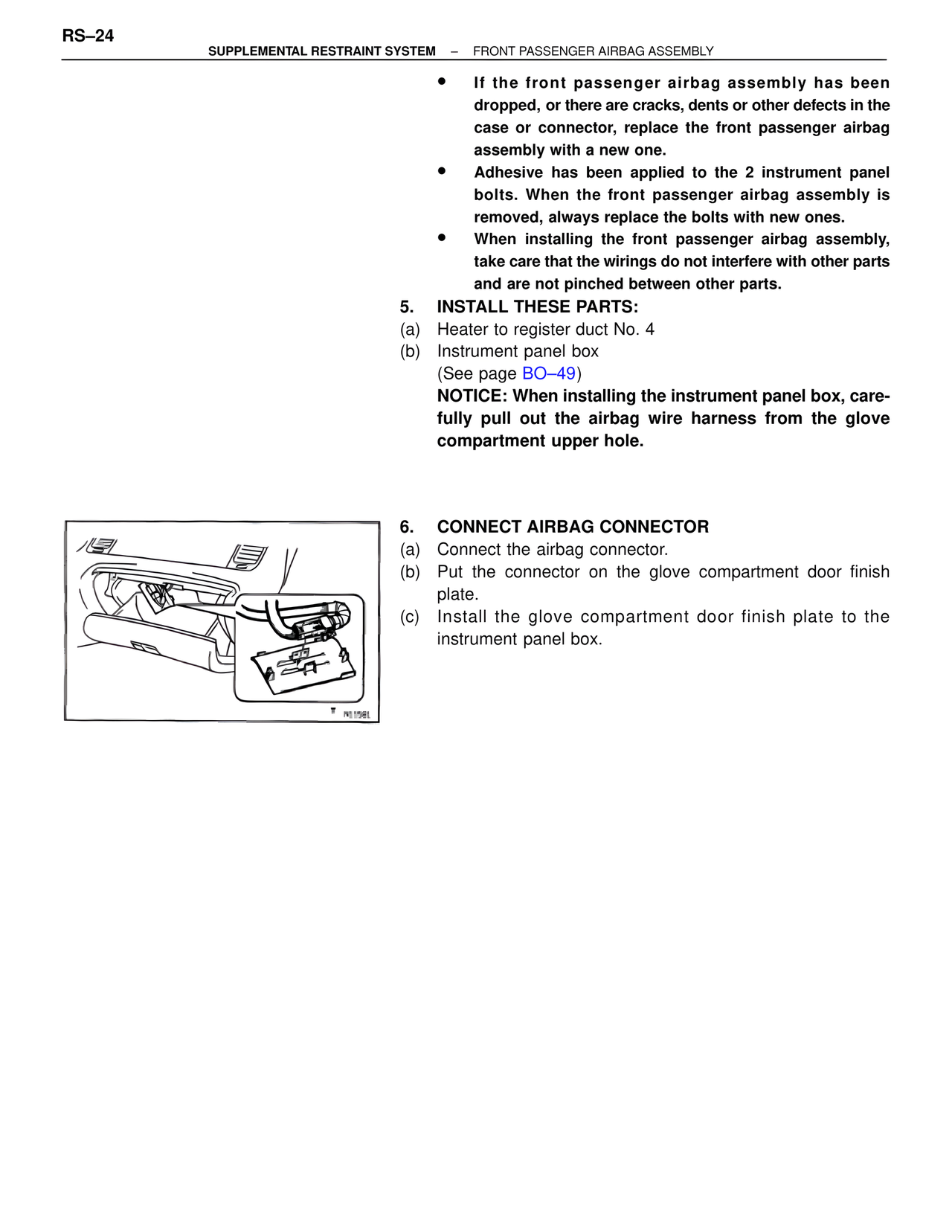

RS–24
SUPPLEMENTAL RESTRAINT SYSTEM – FRONT PASSENGER AIRBAG ASSEMBLY
• If the front passenger airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front passenger airbag assembly with a new one.
• Adhesive has been applied to the 2 instrument panel bolts. When the front passenger airbag assembly is removed, always replace the bolts with new ones.
• When installing the front passenger airbag assembly, take care that the wirings do not interfere with other parts and are not pinched between other parts.
5. INSTALL THESE PARTS:
(a) Heater to register duct No. 4
(b) Instrument panel box
(See page BO–49)
NOTICE: When installing the instrument panel box, carefully pull out the airbag wire harness from the glove compartment upper hole.
6. CONNECT AIRBAG CONNECTOR
(a) Connect the airbag connector.
(b) Put the connector on the glove compartment door finish plate.
(c) Install the glove compartment door finish plate to the instrument panel box.
N1581
