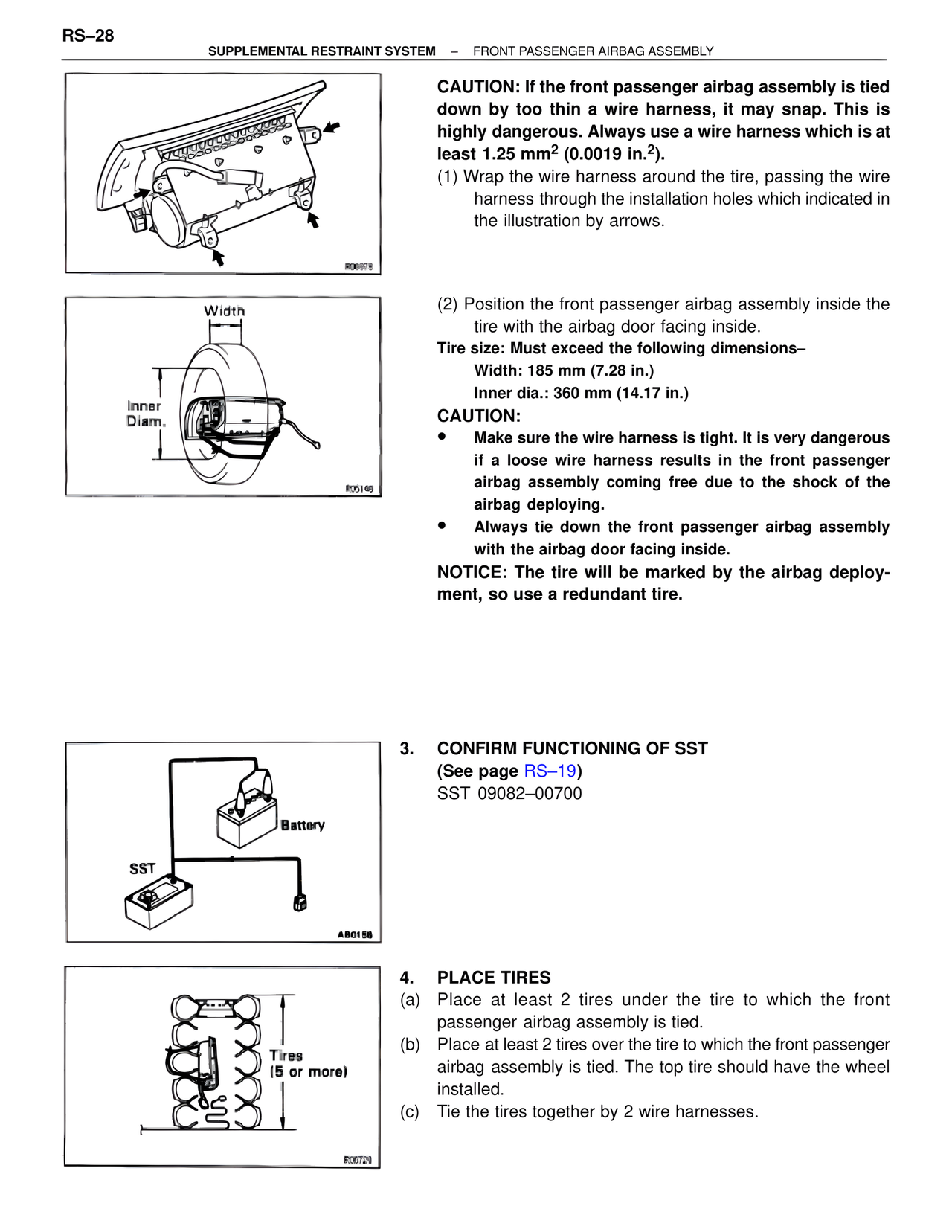

RS–28 SUPPLEMENTAL RESTRAINT SYSTEM – FRONT PASSENGER AIRBAG ASSEMBLY CAUTION: If the front passenger airbag assembly is tied down by too thin a wire harness, it may snap. This is highly dangerous. Always use a wire harness which is at least 1.25 mm2 (0.0019 in.2). (1) Wrap the wire harness around the tire, passing the wire harness through the installation holes which indicated in the illustration by arrows. (2) Position the front passenger airbag assembly inside the tire with the airbag door facing inside. Tire size: Must exceed the following dimensions– Width: 185 mm (7.28 in.) Inner dia.: 360 mm (14.17 in.) CAUTION: • Make sure the wire harness is tight. It is very dangerous if a loose wire harness results in the front passenger airbag assembly coming free due to the shock of the airbag deploying. • Always tie down the front passenger airbag assembly with the airbag door facing inside. NOTICE: The tire will be marked by the airbag deployment, so use a redundant tire. Width Inner Diam. R05148 R06978 3. CONFIRM FUNCTIONING OF SST (See page RS–19) SST 09082–00700 Battery SST AB0158 4. PLACE TIRES (a) Place at least 2 tires under the tire to which the front passenger airbag assembly is tied. (b) Place at least 2 tires over the tire to which the front passenger airbag assembly is tied. The top tire should have the wheel installed. (c) Tie the tires together by 2 wire harnesses. Tires (5 or more) R06729
