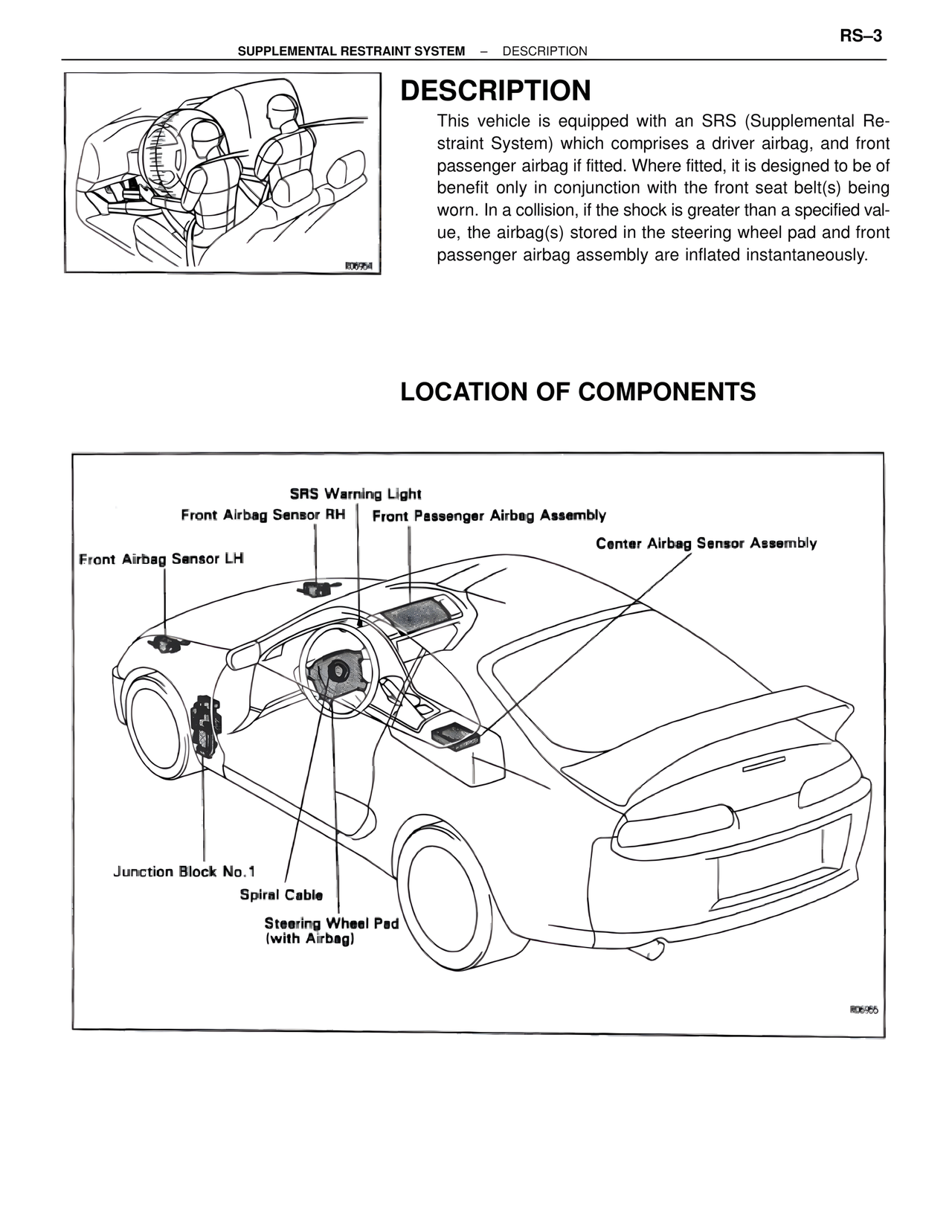

RS–3
SUPPLEMENTAL RESTRAINT SYSTEM – DESCRIPTION
DESCRIPTION
This vehicle is equipped with an SRS (Supplemental Restraint System) which comprises a driver airbag, and front passenger airbag if fitted. Where fitted, it is designed to be of benefit only in conjunction with the front seat belt(s) being worn. In a collision, if the shock is greater than a specified value, the airbag(s) stored in the steering wheel pad and front passenger airbag assembly are inflated instantaneously.
R06954
LOCATION OF COMPONENTS
SRS Warning Light
Front Airbag Sensor RH
Front Passenger Airbag Assembly
Front Airbag Sensor LH
Center Airbag Sensor Assembly
Junction Block No.1
Spiral Cable
Steering Wheel Pad
(with Airbag)
R06955
