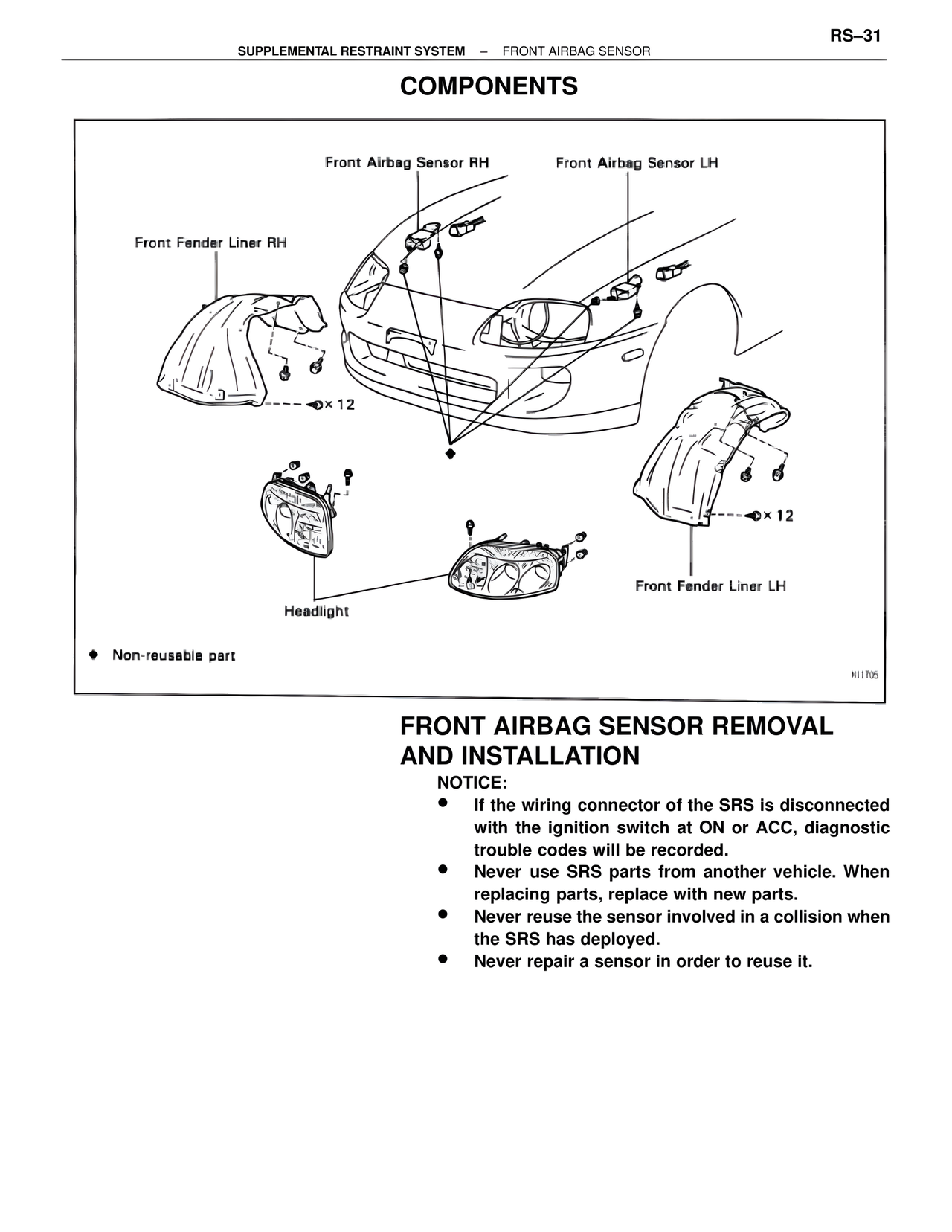

RS–31 SUPPLEMENTAL RESTRAINT SYSTEM – FRONT AIRBAG SENSOR COMPONENTS Front Airbag Sensor RH Front Airbag Sensor LH Front Fender Liner RH ⊕x 12 Headlight ⊕x 12 Front Fender Liner LH ♦ Non-reusable part N1705 FRONT AIRBAG SENSOR REMOVAL AND INSTALLATION NOTICE: • If the wiring connector of the SRS is disconnected with the ignition switch at ON or ACC, diagnostic trouble codes will be recorded. • Never use SRS parts from another vehicle. When replacing parts, replace with new parts. • Never reuse the sensor involved in a collision when the SRS has deployed. • Never repair a sensor in order to reuse it.
