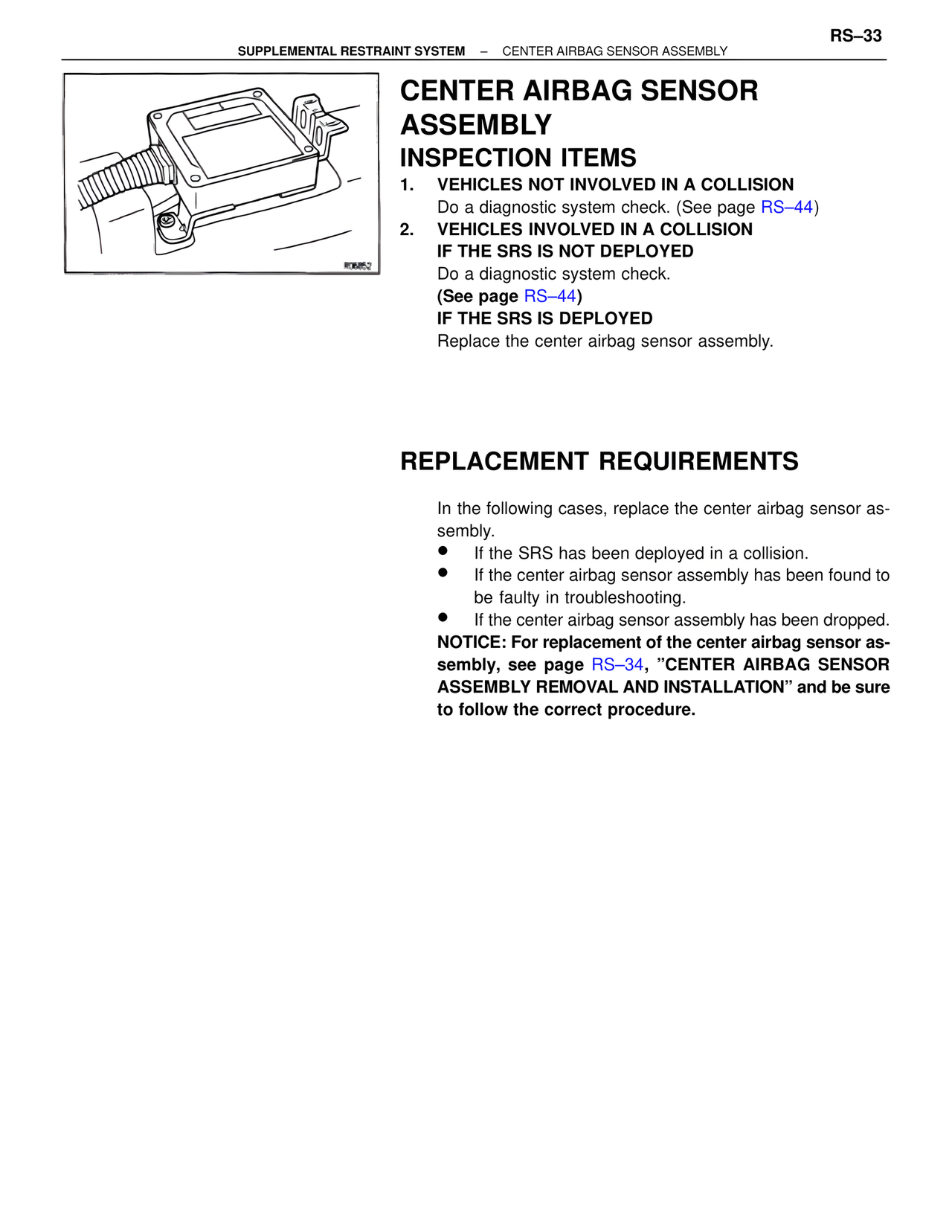

RS–33
SUPPLEMENTAL RESTRAINT SYSTEM – CENTER AIRBAG SENSOR ASSEMBLY
CENTER AIRBAG SENSOR ASSEMBLY
INSPECTION ITEMS
1. VEHICLES NOT INVOLVED IN A COLLISION
Do a diagnostic system check. (See page RS–44)
2. VEHICLES INVOLVED IN A COLLISION
IF THE SRS IS NOT DEPLOYED
Do a diagnostic system check.
(See page RS–44)
IF THE SRS IS DEPLOYED
Replace the center airbag sensor assembly.
REPLACEMENT REQUIREMENTS
In the following cases, replace the center airbag sensor assembly.
• If the SRS has been deployed in a collision.
• If the center airbag sensor assembly has been found to be faulty in troubleshooting.
• If the center airbag sensor assembly has been dropped.
NOTICE: For replacement of the center airbag sensor assembly, see page RS–34, "CENTER AIRBAG SENSOR ASSEMBLY REMOVAL AND INSTALLATION" and be sure to follow the correct procedure.
