RS–40
SUPPLEMENTAL RESTRAINT SYSTEM – WIRE HARNESS AND CONNECTOR
Corrugated Tube Silicon Tape
Wire
R05365

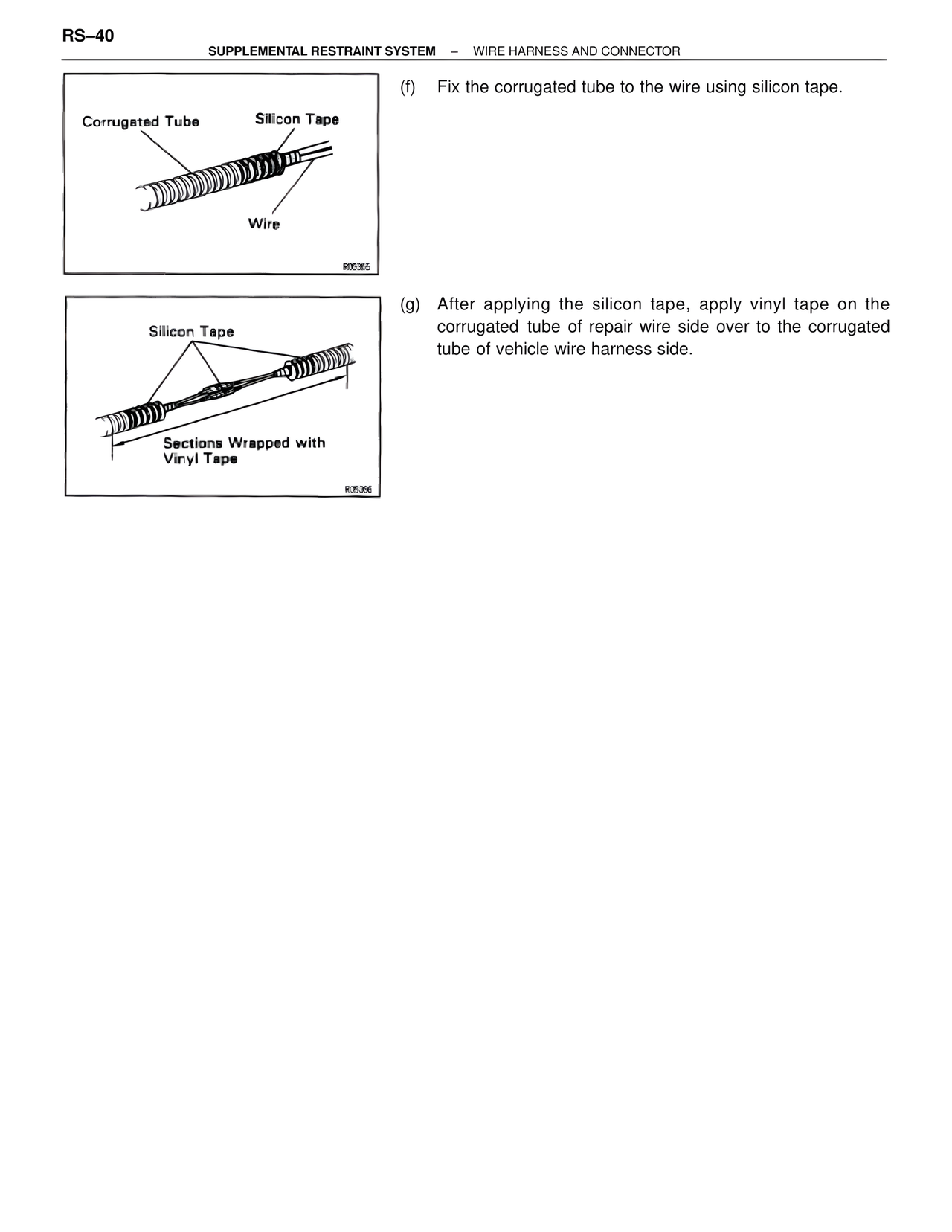

(f) Fix the corrugated tube to the wire using silicon tape.
Silicon Tape
Sections Wrapped with
Vinyl Tape
R05366
(g) After applying the silicon tape, apply vinyl tape on the corrugated tube of repair wire side over to the corrugated tube of vehicle wire harness side.
