RS–42
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

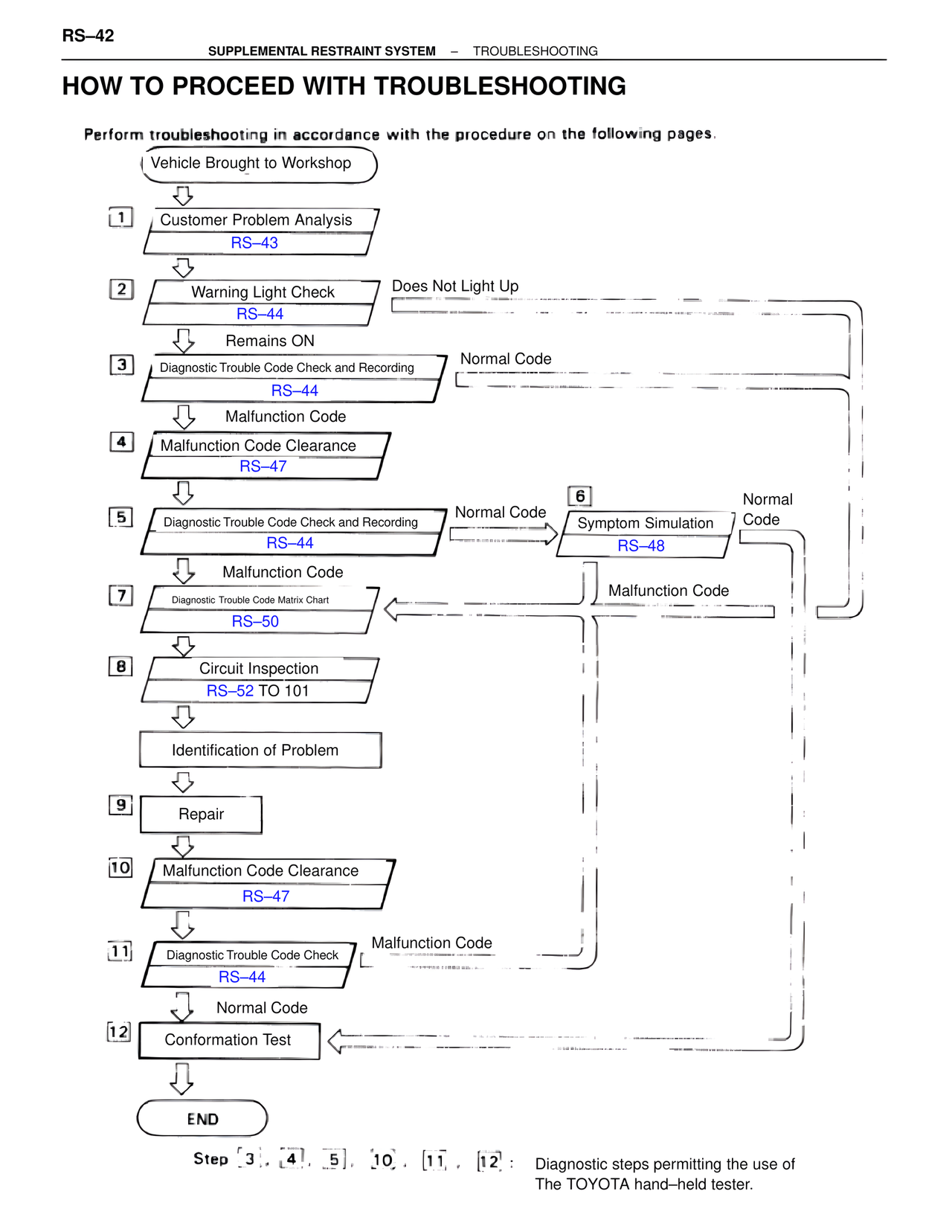

HOW TO PROCEED WITH TROUBLESHOOTING
Perform troubleshooting in accordance with the procedure on the following pages.
Vehicle Brought to Workshop
1 Customer Problem Analysis
RS–43
2 Warning Light Check Does Not Light Up
RS–44
Remains ON
3 Diagnostic Trouble Code Check and Recording Normal Code
RS–44
Malfunction Code
4 Malfunction Code Clearance
RS–47
5 Diagnostic Trouble Code Check and Recording Normal Code 6 Symptom Simulation Normal Code
RS–44 RS–48
Malfunction Code Malfunction Code
7 Diagnostic Trouble Code Matrix Chart
RS–50
8 Circuit Inspection
RS–52 TO 101
Identification of Problem
9 Repair
10 Malfunction Code Clearance
RS–47
11 Diagnostic Trouble Code Check Malfunction Code
RS–44
Normal Code
12 Conformation Test
END
Step 3 , 4 , 5 , 10 , 11 , 12 : Diagnostic steps permitting the use of
The TOYOTA hand–held tester.
