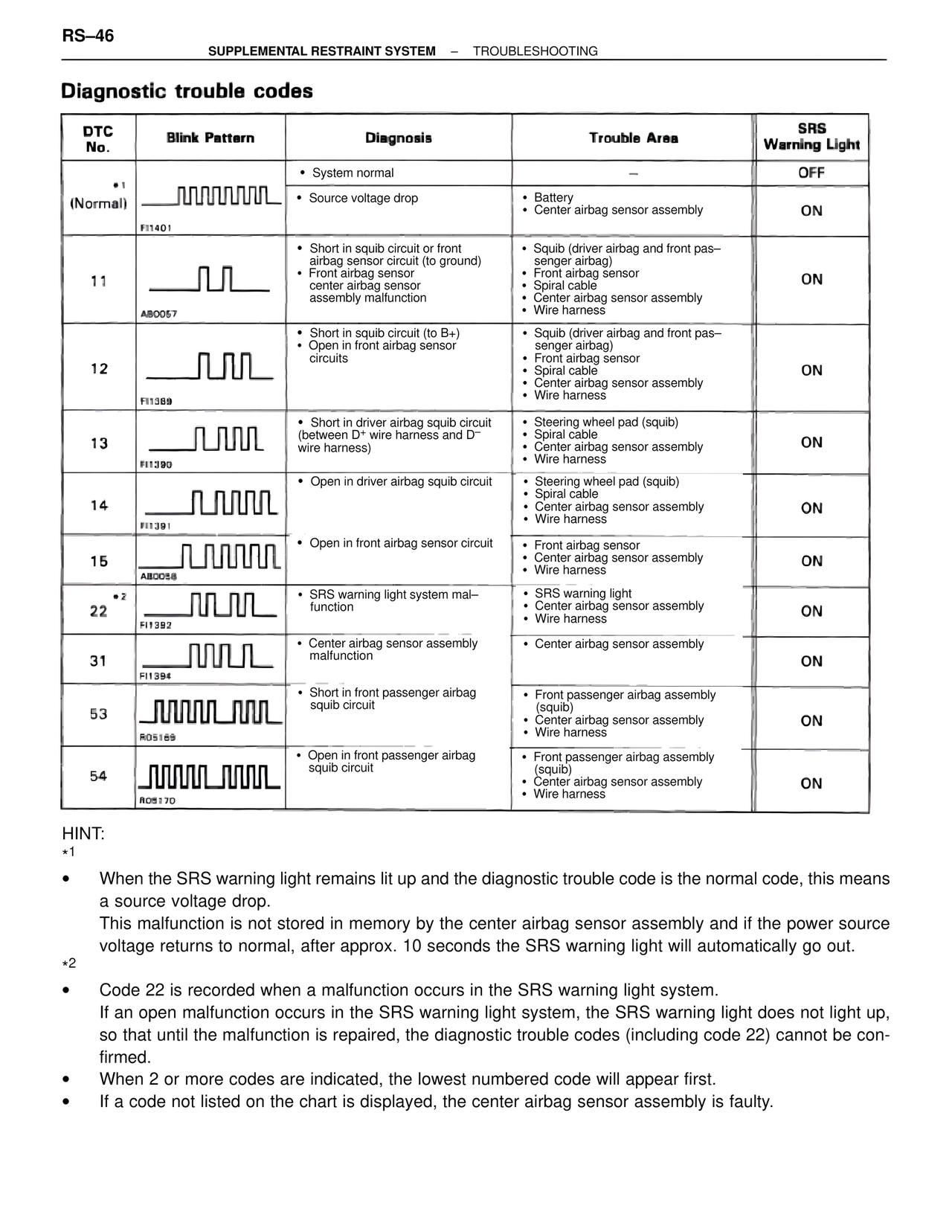

SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
Diagnostic trouble codes
DTC No. | Blink Pattern | Diagnosis | Trouble Area | SRS Warning Light
*1
(Normal)
FI1401
• System normal | – | OFF
• Source voltage drop | • Battery
• Center airbag sensor assembly | ON
11
AB0057
• Short in squib circuit or front airbag sensor circuit (to ground)
• Front airbag sensor center airbag sensor assembly malfunction
| • Squib (driver airbag and front passenger airbag)
• Front airbag sensor
• Spiral cable
• Center airbag sensor assembly
• Wire harness | ON
12
FI1389
• Short in squib circuit (to B+)
• Open in front airbag sensor circuits
| • Squib (driver airbag and front passenger airbag)
• Front airbag sensor
• Spiral cable
• Center airbag sensor assembly
• Wire harness | ON
13
FI1390
• Short in driver airbag squib circuit (between D+ wire harness and D– wire harness)
| • Steering wheel pad (squib)
• Spiral cable
• Center airbag sensor assembly
• Wire harness | ON
14
FI1391
• Open in driver airbag squib circuit
| • Steering wheel pad (squib)
• Spiral cable
• Center airbag sensor assembly
• Wire harness | ON
15
AB0058
• Open in front airbag sensor circuit
| • Front airbag sensor
• Center airbag sensor assembly
• Wire harness | ON
*2
22
FI1392
• SRS warning light system malfunction
| • SRS warning light
• Center airbag sensor assembly
• Wire harness | ON
31
FI1394
• Center airbag sensor assembly malfunction
| • Center airbag sensor assembly | ON
53
R05169
• Short in front passenger airbag squib circuit
| • Front passenger airbag assembly (squib)
• Center airbag sensor assembly
• Wire harness | ON
54
R05170
• Open in front passenger airbag squib circuit
| • Front passenger airbag assembly (squib)
• Center airbag sensor assembly
• Wire harness | ON
HINT:
*1
• When the SRS warning light remains lit up and the diagnostic trouble code is the normal code, this means a source voltage drop.
This malfunction is not stored in memory by the center airbag sensor assembly and if the power source voltage returns to normal, after approx. 10 seconds the SRS warning light will automatically go out.
*2
• Code 22 is recorded when a malfunction occurs in the SRS warning light system.
If an open malfunction occurs in the SRS warning light system, the SRS warning light does not light up, so that until the malfunction is repaired, the diagnostic trouble codes (including code 22) cannot be confirmed.
• When 2 or more codes are indicated, the lowest numbered code will appear first.
• If a code not listed on the chart is displayed, the center airbag sensor assembly is faulty.
