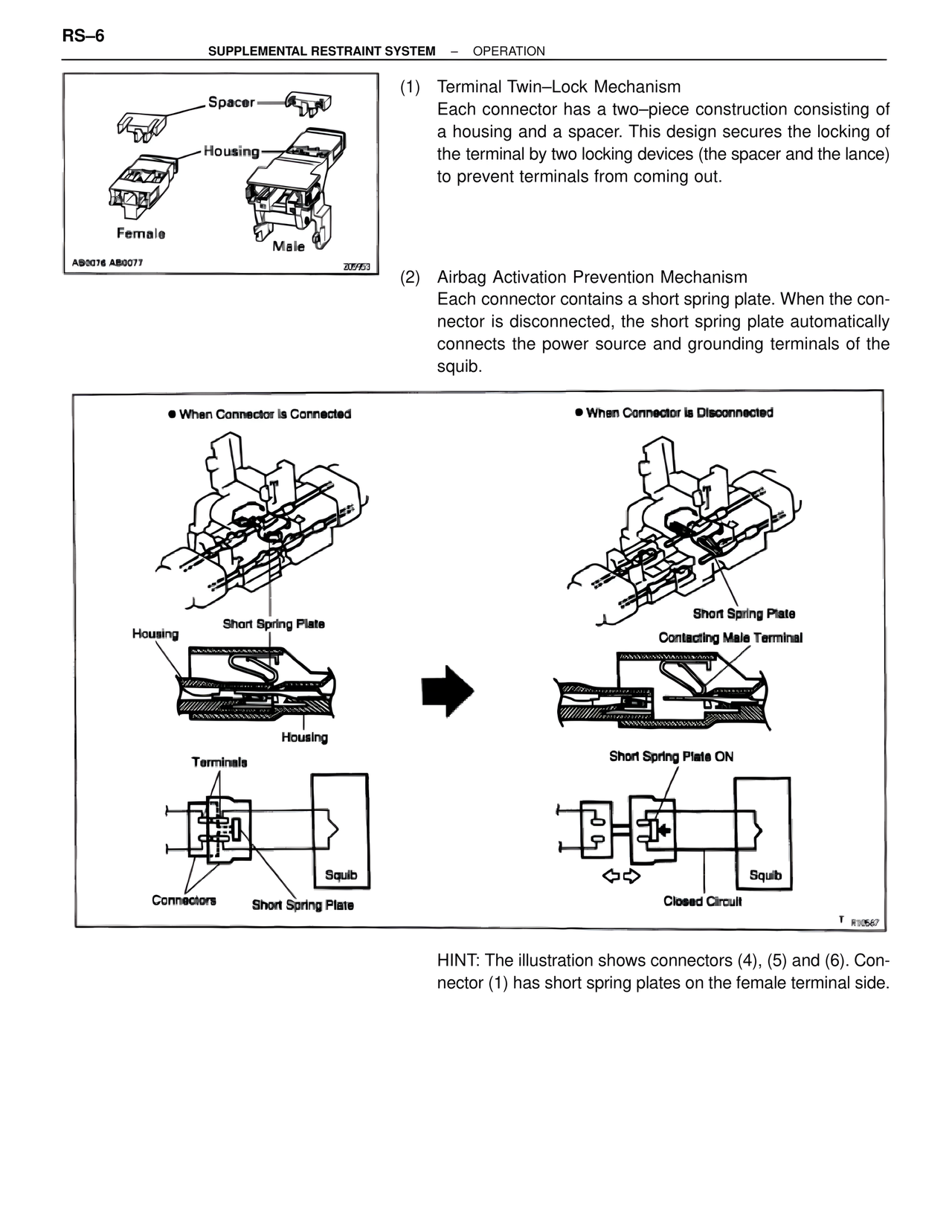

RS–6 SUPPLEMENTAL RESTRAINT SYSTEM – OPERATION Spacer Housing Female Male AB0076 AB0077 205953 (1) Terminal Twin–Lock Mechanism Each connector has a two–piece construction consisting of a housing and a spacer. This design secures the locking of the terminal by two locking devices (the spacer and the lance) to prevent terminals from coming out. (2) Airbag Activation Prevention Mechanism Each connector contains a short spring plate. When the con- nector is disconnected, the short spring plate automatically connects the power source and grounding terminals of the squib. • When Connector is Connected • When Connector is Disconnected Short Spring Plate Housing Housing Terminals Connectors Short Spring Plate Squib Short Spring Plate Contacting Male Terminal Short Spring Plate ON Squib Closed Circuit T R10587 HINT: The illustration shows connectors (4), (5) and (6). Con- nector (1) has short spring plates on the female terminal side.
