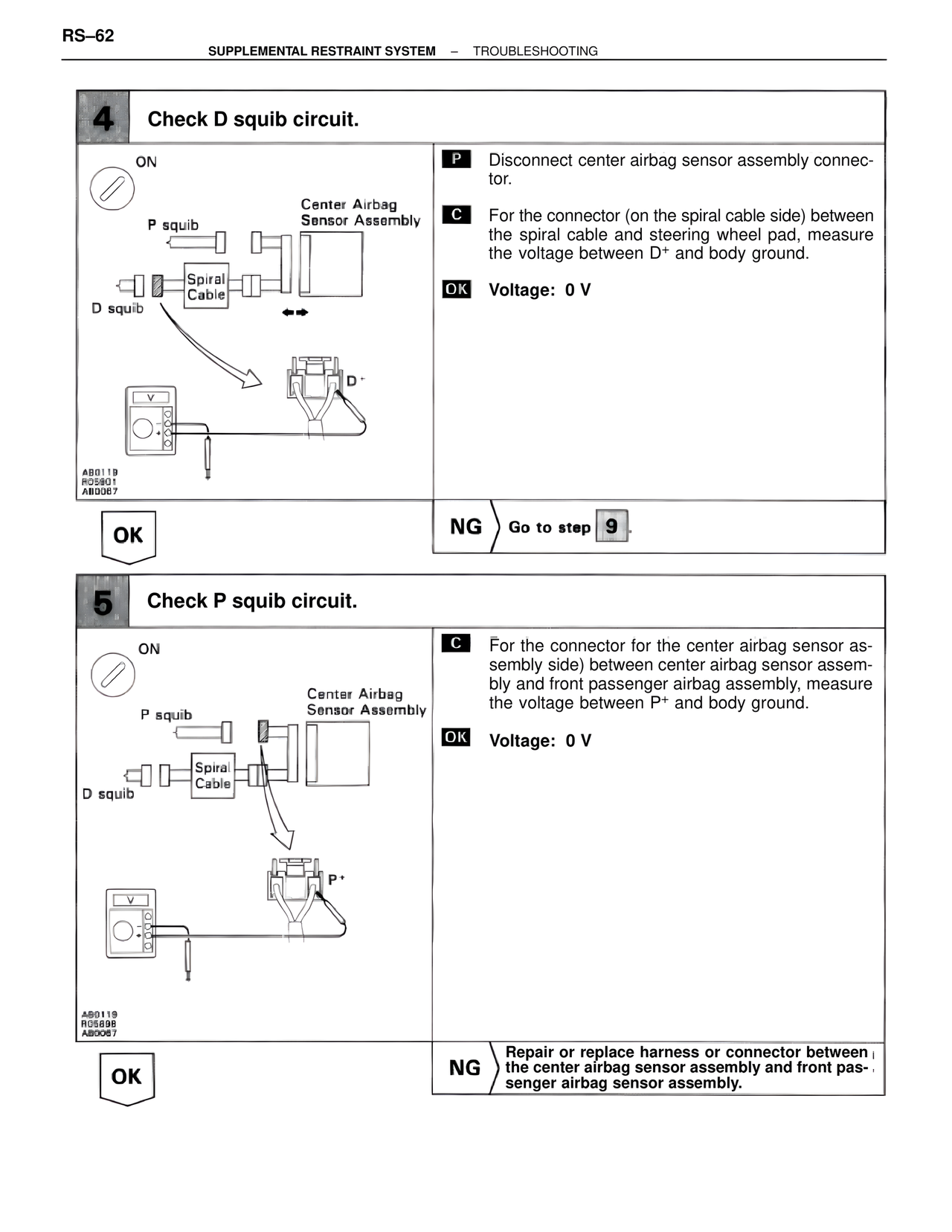

RS–62
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
4 Check D squib circuit.
ON
P squib
Center Airbag
Sensor Assembly
Spiral
Cable
D squib
D+
AB0119
R05901
AB0067
P Disconnect center airbag sensor assembly connector.
C For the connector (on the spiral cable side) between the spiral cable and steering wheel pad, measure the voltage between D+ and body ground.
OK Voltage: 0 V
OK
NG Go to step 9.
5 Check P squib circuit.
ON
P squib
Center Airbag
Sensor Assembly
Spiral
Cable
D squib
P+
AB0119
R05896
AB0067
C For the connector for the center airbag sensor assembly side) between center airbag sensor assembly and front passenger airbag assembly, measure the voltage between P+ and body ground.
OK Voltage: 0 V
OK
NG Repair or replace harness or connector between the center airbag sensor assembly and front passenger airbag sensor assembly.
