SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check.

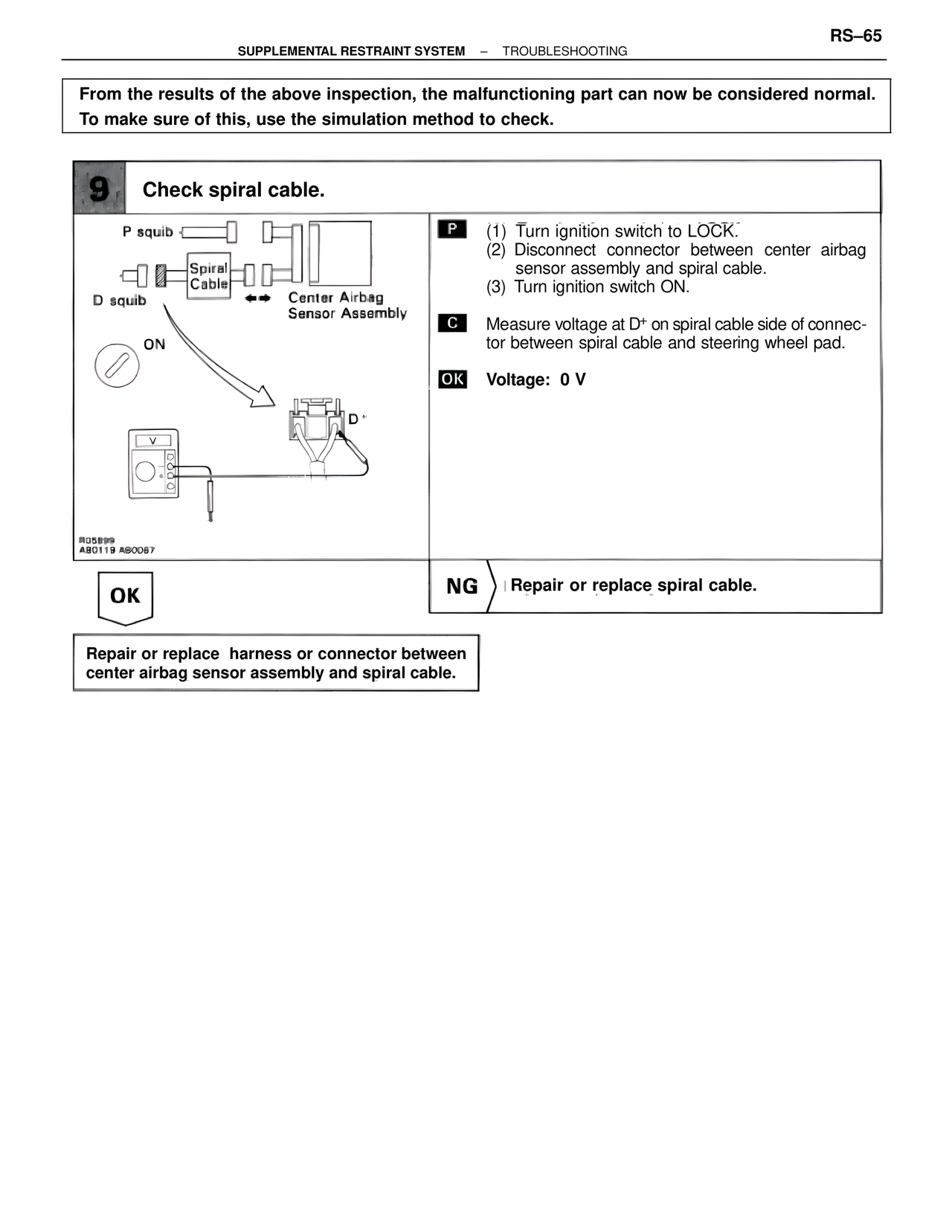

9 Check spiral cable.
P squib
Spiral
Cable
D squib
Center Airbag
Sensor Assembly
ON
V
D+
R05899
AB0119 AB0087
P (1) Turn ignition switch to LOCK.
(2) Disconnect connector between center airbag
sensor assembly and spiral cable.
(3) Turn ignition switch ON.
C Measure voltage at D+ on spiral cable side of connector between spiral cable and steering wheel pad.
OK Voltage: 0 V
OK
NG Repair or replace spiral cable.
Repair or replace harness or connector between
center airbag sensor assembly and spiral cable.
