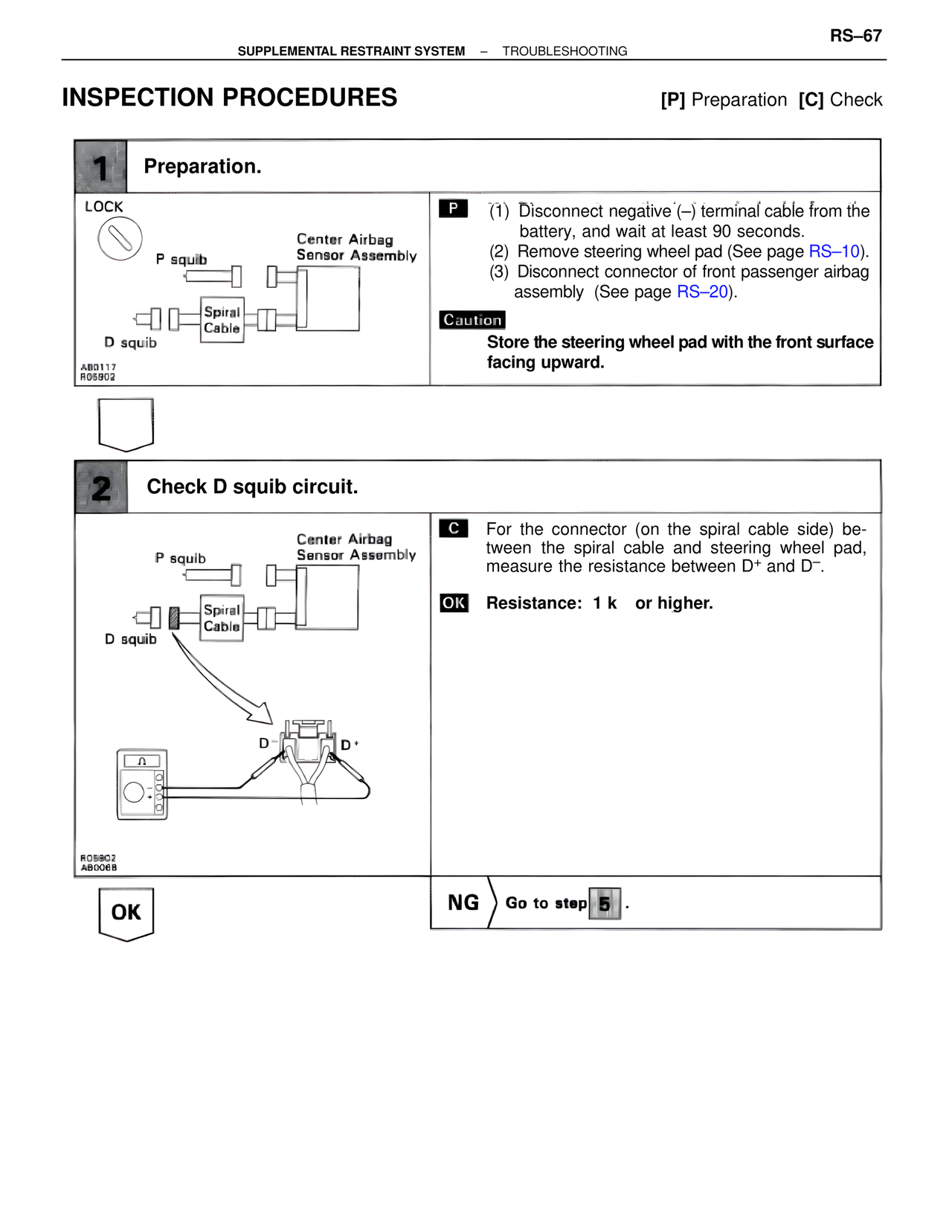

RS–67 SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING INSPECTION PROCEDURES [P] Preparation [C] Check 1 Preparation. LOCK P squib Center Airbag Sensor Assembly Spiral Cable D squib AB0117 RO5902 P (1) Disconnect negative (–) terminal cable from the battery, and wait at least 90 seconds. (2) Remove steering wheel pad (See page RS–10). (3) Disconnect connector of front passenger airbag assembly (See page RS–20). Caution Store the steering wheel pad with the front surface facing upward. 2 Check D squib circuit. P squib Center Airbag Sensor Assembly Spiral Cable D squib D– D+ RO5902 AB0068 C For the connector (on the spiral cable side) be- tween the spiral cable and steering wheel pad, measure the resistance between D+ and D–. OK Resistance: 1 k or higher. OK NG Go to step 5 .
