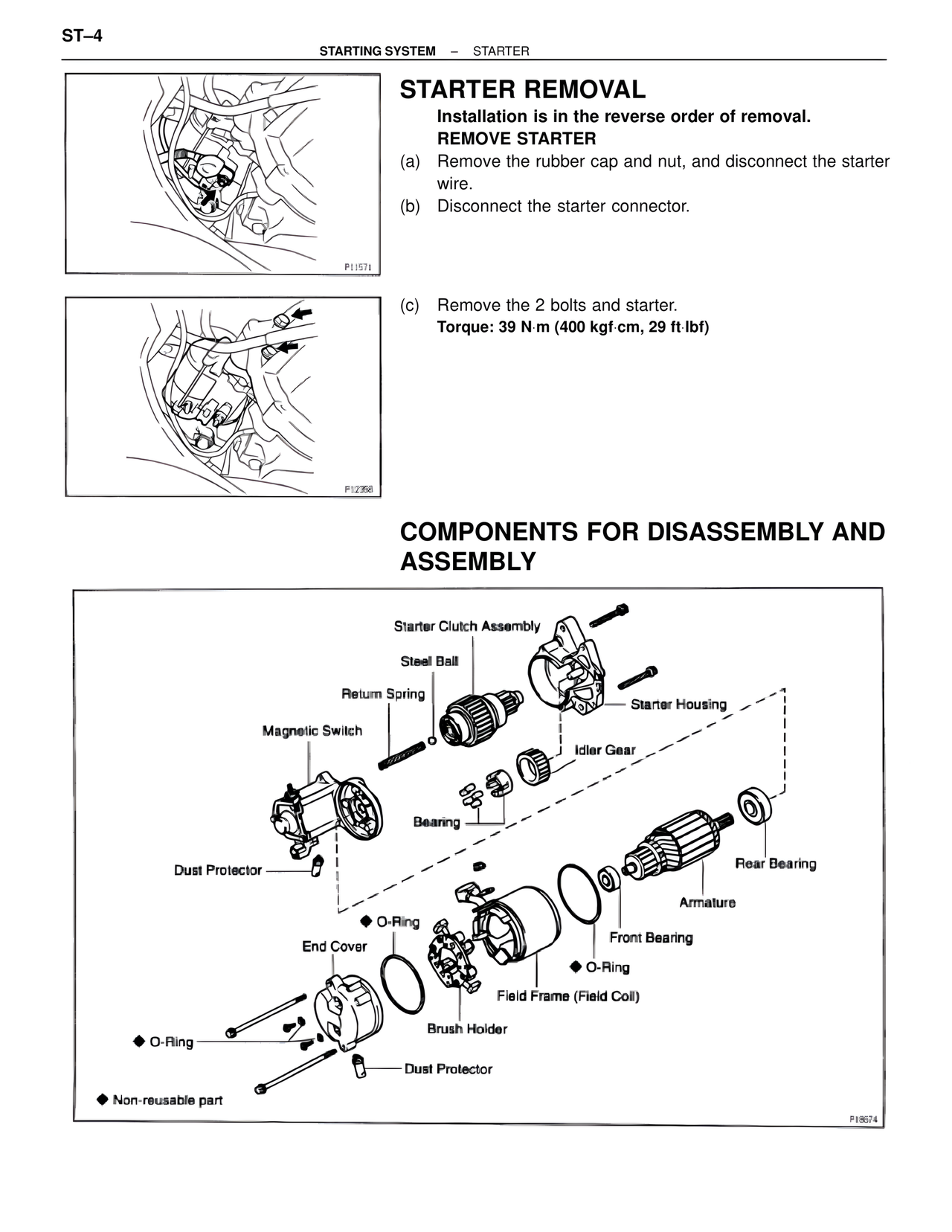

ST–4
STARTING SYSTEM – STARTER
STARTER REMOVAL
Installation is in the reverse order of removal.
REMOVE STARTER
(a) Remove the rubber cap and nut, and disconnect the starter wire.
(b) Disconnect the starter connector.
(c) Remove the 2 bolts and starter.
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
COMPONENTS FOR DISASSEMBLY AND ASSEMBLY
Starter Clutch Assembly
Steel Ball
Return Spring
Magnetic Switch
Starter Housing
Idler Gear
Bearing
Dust Protector
Rear Bearing
Armature
Front Bearing
◆ O-Ring
End Cover
◆ O-Ring
Field Frame (Field Coil)
Brush Holder
◆ O-Ring
Dust Protector
◆ Non-reusable part
P11571
P12358
P18674
