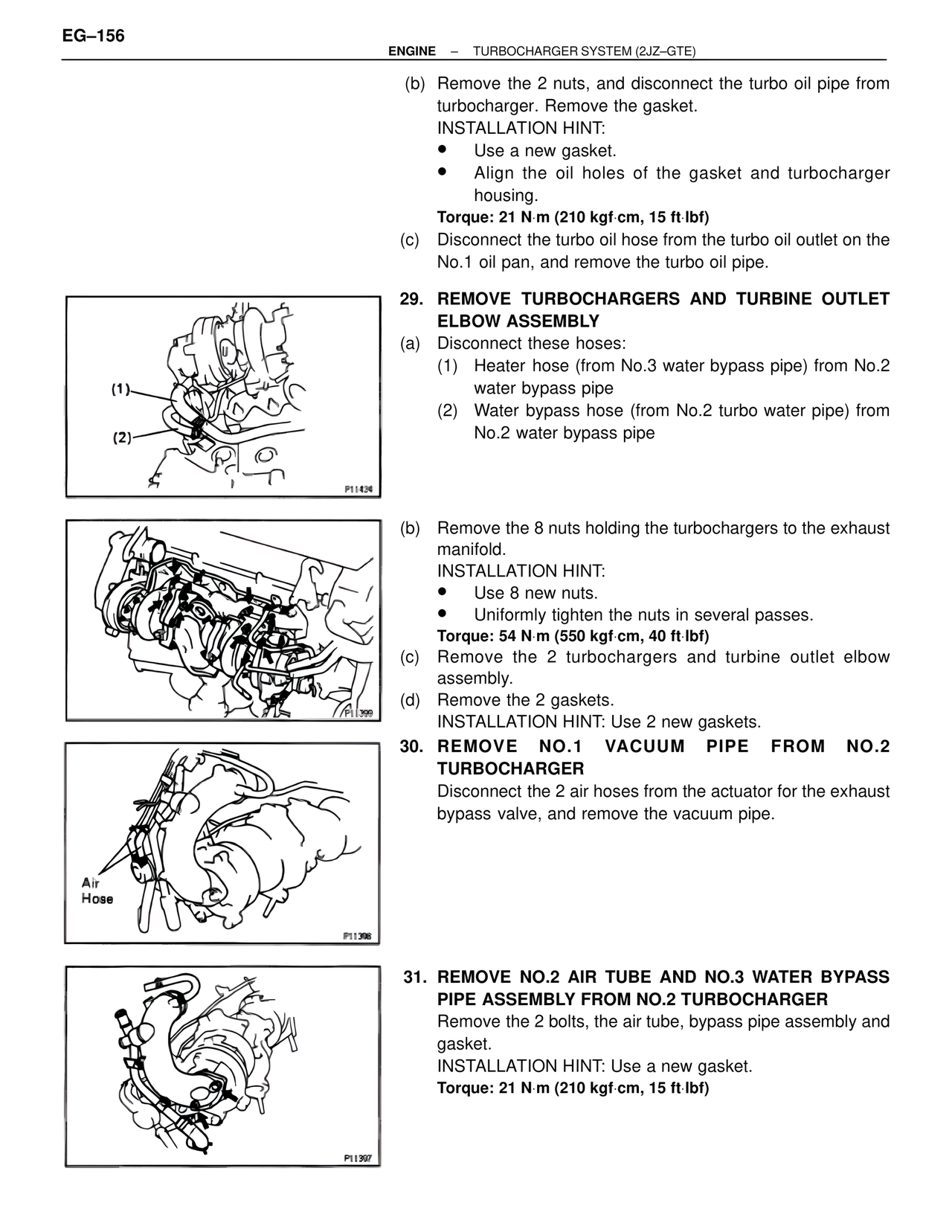

(b) Remove the 2 nuts, and disconnect the turbo oil pipe from turbocharger. Remove the gasket. INSTALLATION HINT: • Use a new gasket. • Align the oil holes of the gasket and turbocharger housing. Torque: 21 N·m (210 kgf·cm, 15 ft·lbf) (c) Disconnect the turbo oil hose from the turbo oil outlet on the No.1 oil pan, and remove the turbo oil pipe. 29. REMOVE TURBOCHARGERS AND TURBINE OUTLET ELBOW ASSEMBLY (a) Disconnect these hoses: (1) Heater hose (from No.3 water bypass pipe) from No.2 water bypass pipe (2) Water bypass hose (from No.2 turbo water pipe) from No.2 water bypass pipe (1) (2) P11424 (b) Remove the 8 nuts holding the turbochargers to the exhaust manifold. INSTALLATION HINT: • Use 8 new nuts. • Uniformly tighten the nuts in several passes. Torque: 54 N·m (550 kgf·cm, 40 ft·lbf) (c) Remove the 2 turbochargers and turbine outlet elbow assembly. (d) Remove the 2 gaskets. INSTALLATION HINT: Use 2 new gaskets. P11399 30. REMOVE NO.1 VACUUM PIPE FROM NO.2 TURBOCHARGER Disconnect the 2 air hoses from the actuator for the exhaust bypass valve, and remove the vacuum pipe. Air Hose P11398 31. REMOVE NO.2 AIR TUBE AND NO.3 WATER BYPASS PIPE ASSEMBLY FROM NO.2 TURBOCHARGER Remove the 2 bolts, the air tube, bypass pipe assembly and gasket. INSTALLATION HINT: Use a new gasket. Torque: 21 N·m (210 kgf·cm, 15 ft·lbf) P11397
