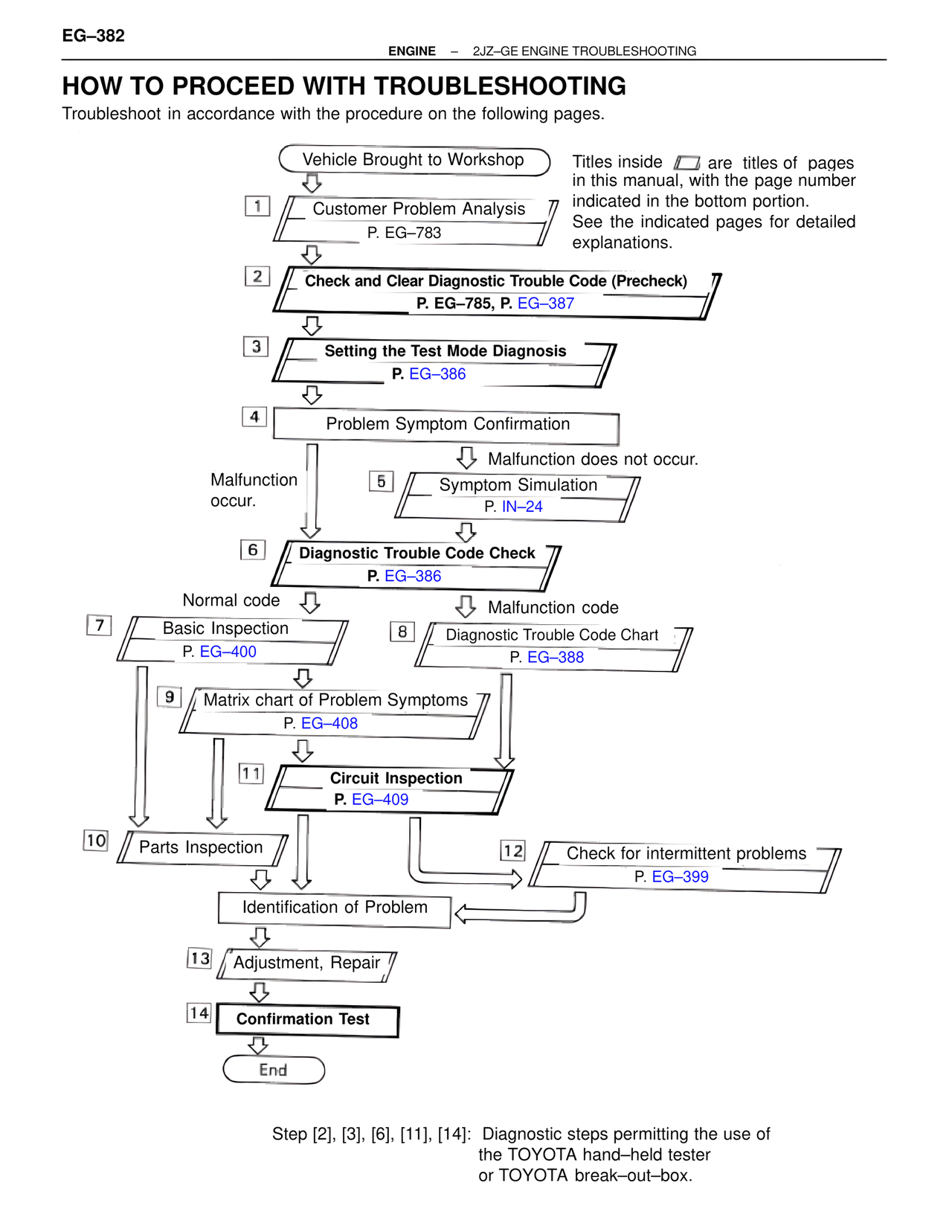

EG–382 ENGINE – 2JZ-GE ENGINE TROUBLESHOOTING HOW TO PROCEED WITH TROUBLESHOOTING Troubleshoot in accordance with the procedure on the following pages. Vehicle Brought to Workshop Titles inside □ are titles of pages in this manual, with the page number indicated in the bottom portion. See the indicated pages for detailed explanations. 1 Customer Problem Analysis P. EG–783 2 Check and Clear Diagnostic Trouble Code (Precheck) P. EG–785, P. EG–387 3 Setting the Test Mode Diagnosis P. EG–386 4 Problem Symptom Confirmation Malfunction does not occur. Malfunction occur. 5 Symptom Simulation P. IN–24 6 Diagnostic Trouble Code Check P. EG–386 Normal code Malfunction code 7 Basic Inspection P. EG–400 8 Diagnostic Trouble Code Chart P. EG–388 9 Matrix chart of Problem Symptoms P. EG–408 11 Circuit Inspection P. EG–409 10 Parts Inspection 12 Check for intermittent problems P. EG–399 Identification of Problem 13 Adjustment, Repair 14 Confirmation Test End Step [2], [3], [6], [11], [14]: Diagnostic steps permitting the use of the TOYOTA hand–held tester or TOYOTA break–out–box.
