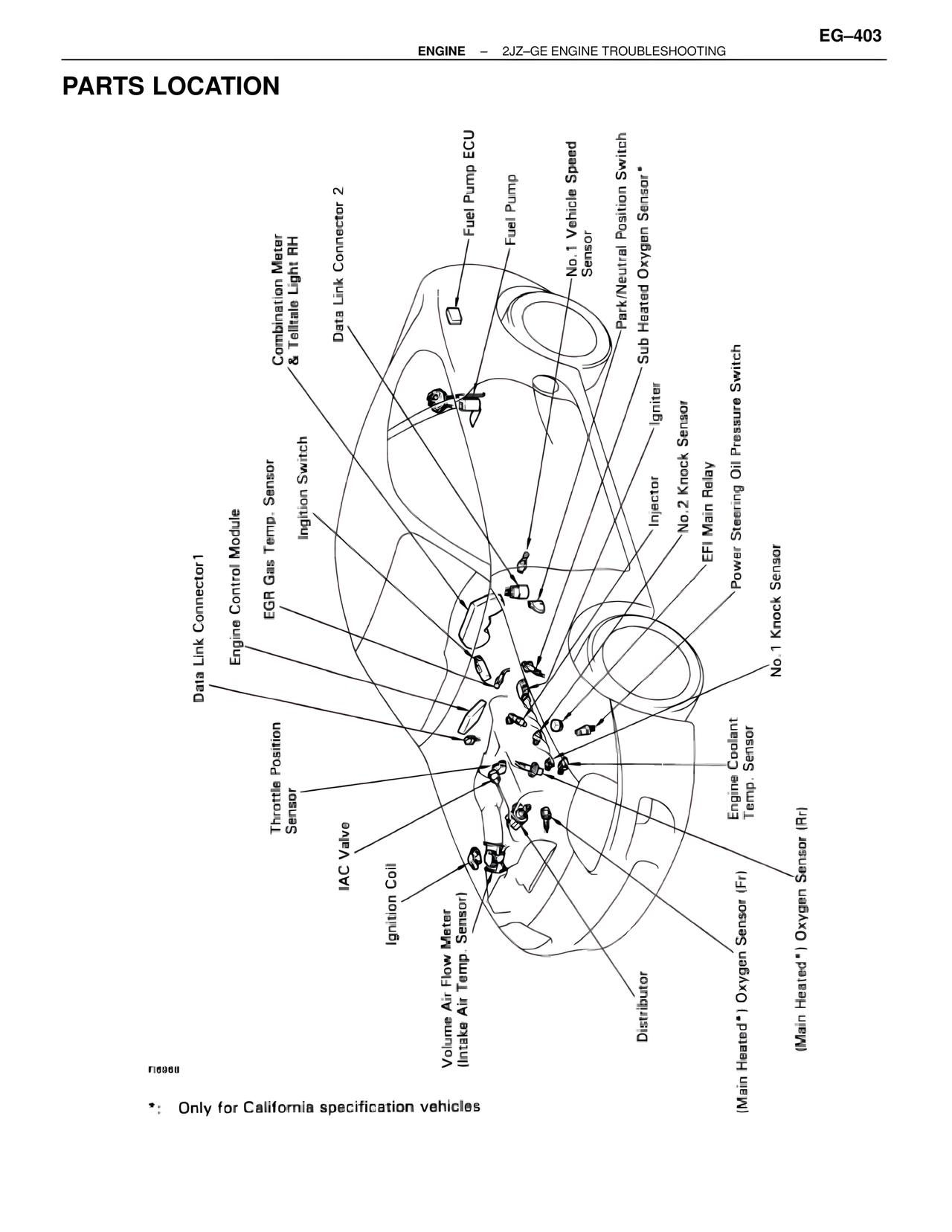

EG-403 ENGINE — 2JZ-GE ENGINE TROUBLESHOOTING PARTS LOCATION Data Link Connector1 Engine Control Module Combination Meter & Telltale Light RH Data Link Connector 2 EGR Gas Temp. Sensor Ignition Switch Throttle Position Sensor IAC Valve Ignition Coil Volume Air Flow Meter (Intake Air Temp. Sensor) Fuel Pump ECU Fuel Pump No. 1 Vehicle Speed Sensor Park/Neutral Position Switch Sub Heated Oxygen Sensor* Igniter No. 2 Knock Sensor Injector EFI Main Relay Power Steering Oil Pressure Switch No. 1 Knock Sensor Engine Coolant Temp. Sensor Distributor (Main Heated*) Oxygen Sensor (Fr) (Main Heated*) Oxygen Sensor (Rr) FI6968 *: Only for California specification vehicles
