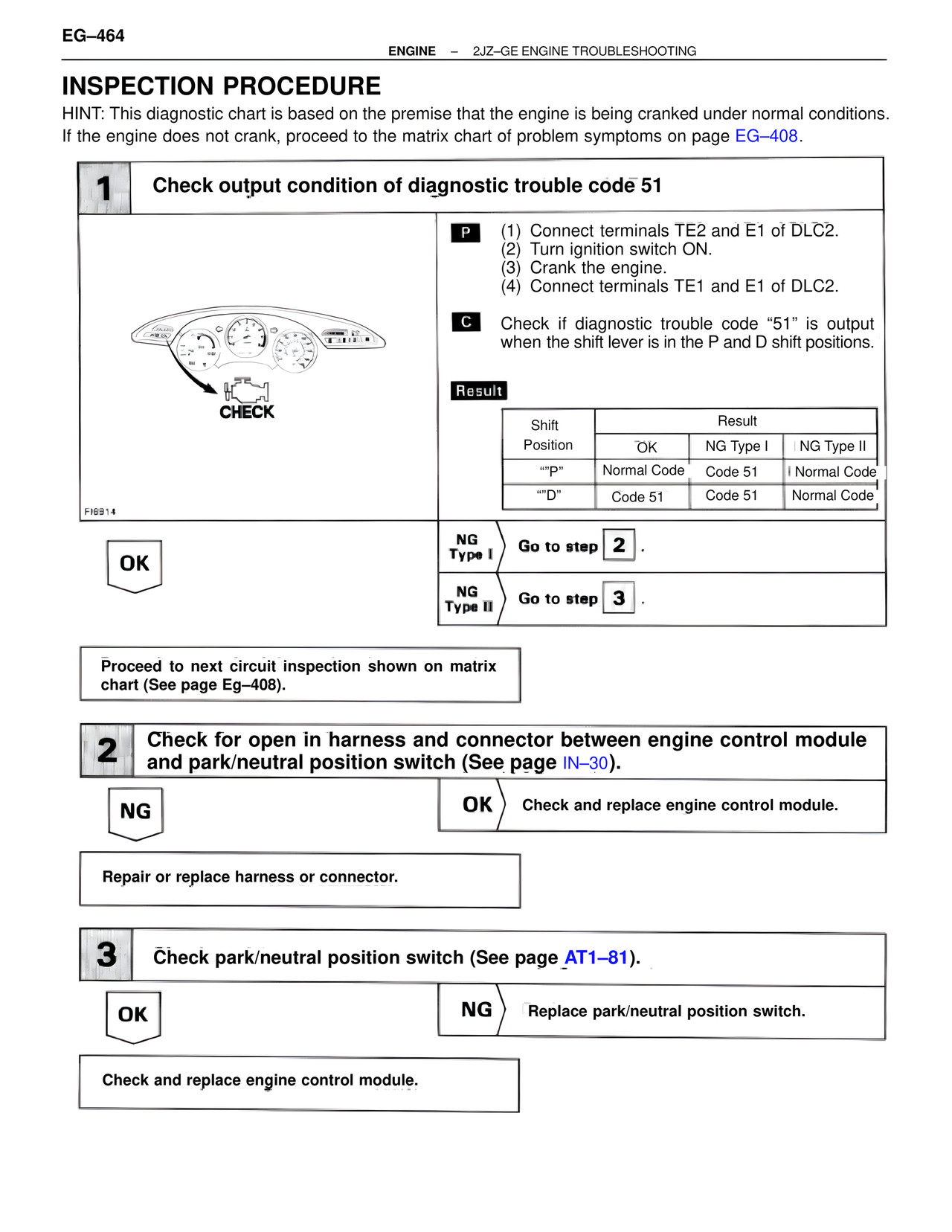

EG–464 ENGINE – 2JZ–GE ENGINE TROUBLESHOOTING INSPECTION PROCEDURE HINT: This diagnostic chart is based on the premise that the engine is being cranked under normal conditions. If the engine does not crank, proceed to the matrix chart of problem symptoms on page EG–408. 1 Check output condition of diagnostic trouble code 51 P (1) Connect terminals TE2 and E1 of DLC2. (2) Turn ignition switch ON. (3) Crank the engine. (4) Connect terminals TE1 and E1 of DLC2. C Check if diagnostic trouble code "51" is output when the shift lever is in the P and D shift positions. Result Shift Position | Result | OK | NG Type I | NG Type II "P" | Normal Code | Code 51 | Normal Code "D" | Code 51 | Code 51 | Normal Code FI6914 OK NG Type I Go to step 2 . NG Type II Go to step 3 . Proceed to next circuit inspection shown on matrix chart (See page Eg–408). 2 Check for open in harness and connector between engine control module and park/neutral position switch (See page IN–30). NG OK Check and replace engine control module. Repair or replace harness or connector. 3 Check park/neutral position switch (See page AT1–81). OK NG Replace park/neutral position switch. Check and replace engine control module.
