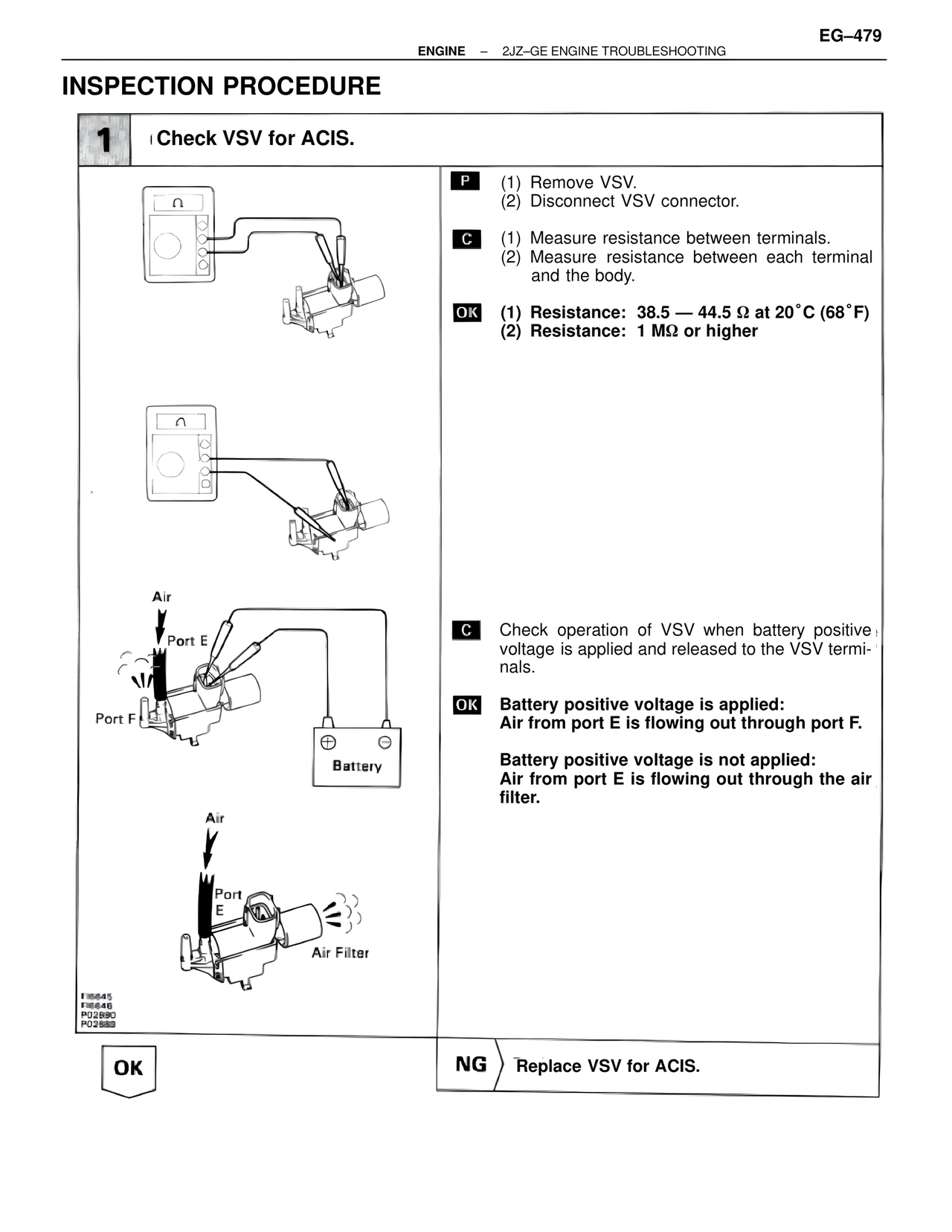

INSPECTION PROCEDURE 1 Check VSV for ACIS. P (1) Remove VSV. (2) Disconnect VSV connector. C (1) Measure resistance between terminals. (2) Measure resistance between each terminal and the body. OK (1) Resistance: 38.5 — 44.5 Ω at 20°C (68°F) (2) Resistance: 1 MΩ or higher C Check operation of VSV when battery positive voltage is applied and released to the VSV termi- nals. OK Battery positive voltage is applied: Air from port E is flowing out through port F. Battery positive voltage is not applied: Air from port E is flowing out through the air filter. Air Port E Port F Battery Air Port E Air Filter FI5645 FI6646 P02890 P02889 OK NG Replace VSV for ACIS.
